Parking Brake Warning Switch: Testing and Inspection
Test1. Remove the center console.

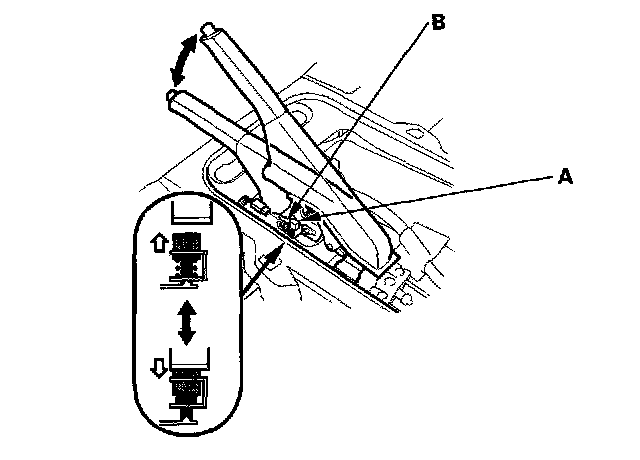

2. Disconnect the connector from the parking brake switch (A).
3. Check for continuity between the switch terminal (B) and body ground.
^ With the parking brake lever pulled, there should be continuity.
^ With the parking brake lever released, there should be no continuity.
NOTE: If both the ABS indicator and the brake system indicator come on at the same time, troubleshoot the ABS.
^ If the parking brake switch and brake fluid level switch are OK, but the brake system indicator does not work, check the ABS.
