Under-Dash Fuse/Relay Box
Under-Dash Fuse/Relay Box

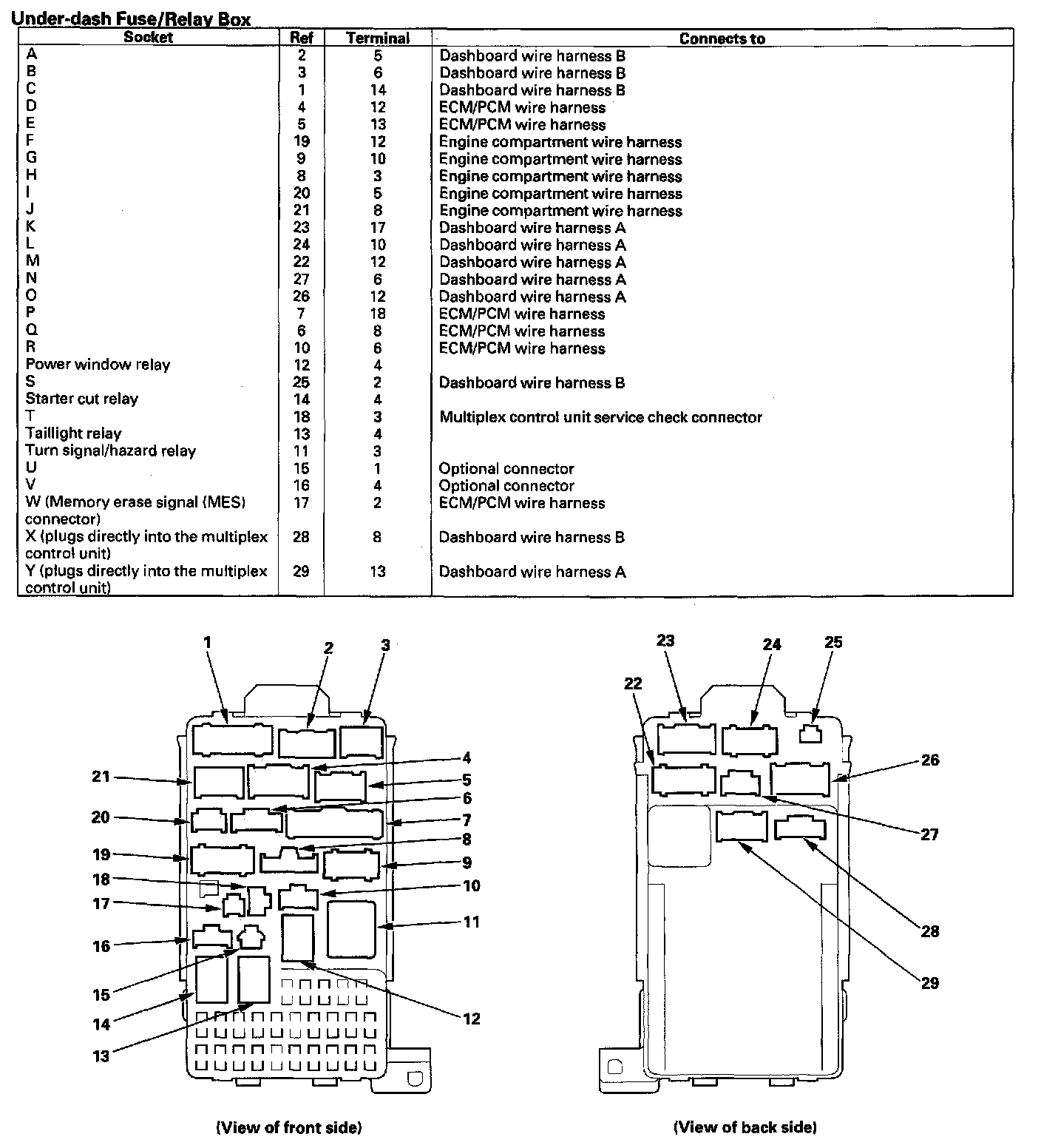

Under-Dash Fuse/Relay Box:
134. Under Left Side Of Dash (Honda Accessory):
135. Under Left Side Of Dash (Honda Accessory):
