Alarm System Transponder: Service and Repair

Immobilizer Control Unit-Receiver Replacement

1. Remove the driver's dashboard lower cover.
2. Remove the steering column covers.
3. Remove the instrument panel.

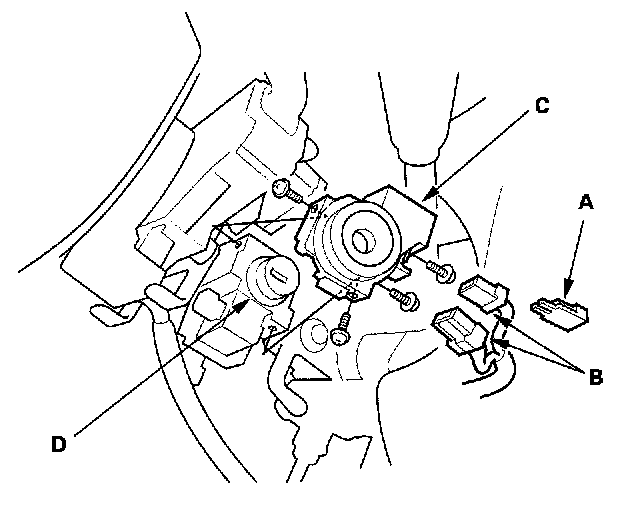

4. Remove the gray connector lock (A) from the 5P connector.
5. Disconnect the 5P and 7P connectors (B) from the immobilizer control unit-receiver (C).
6. Remove the shift lever.
7. Remove the screws and the immobilizer control unit-receiver from the ignition key cylinder (D).
8. Install in the reverse order of removal.
9. After replacement, check the immobilizer system.
