Audio Unit Connector Replacement

Audio Unit Connector Replacement

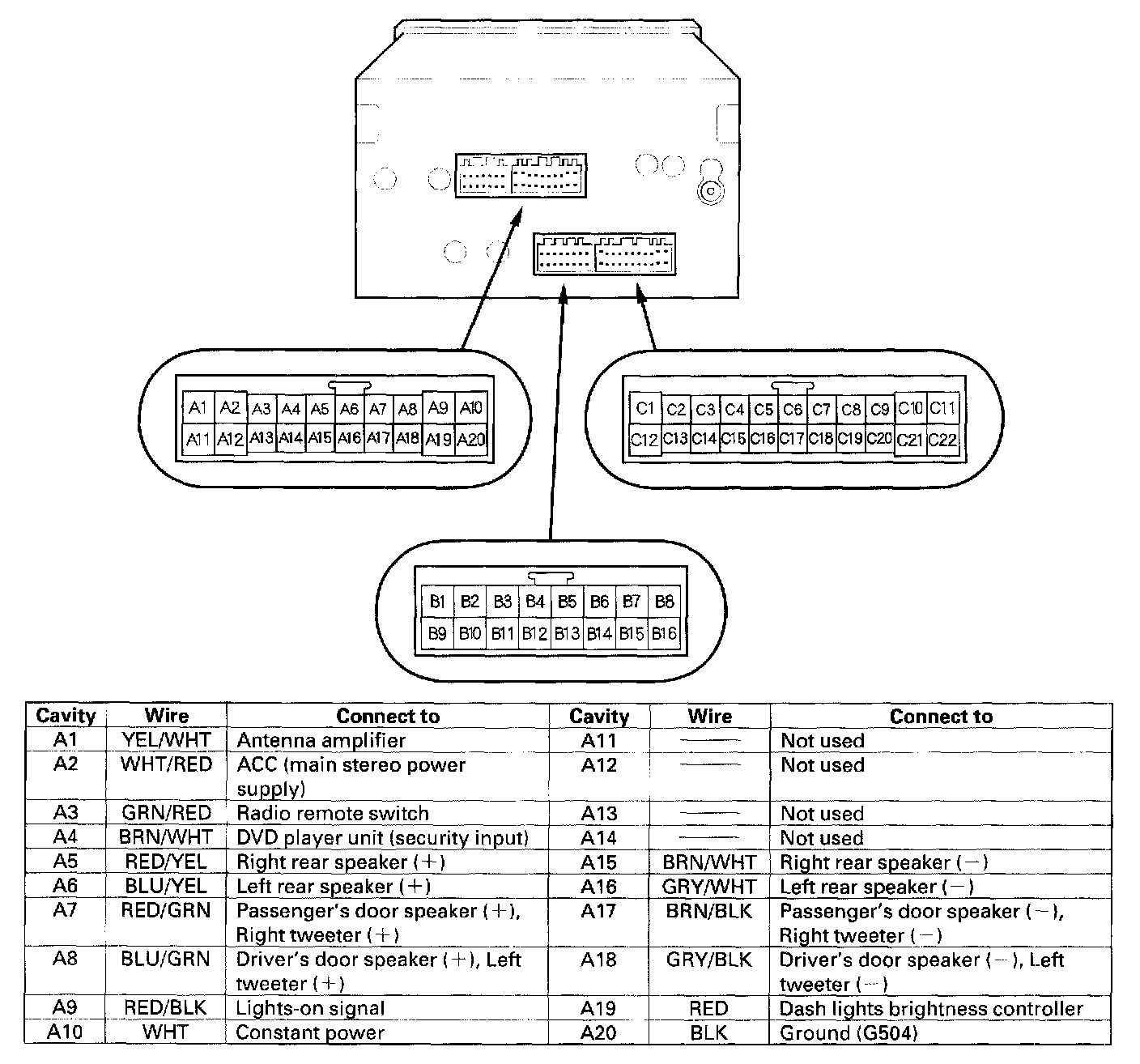

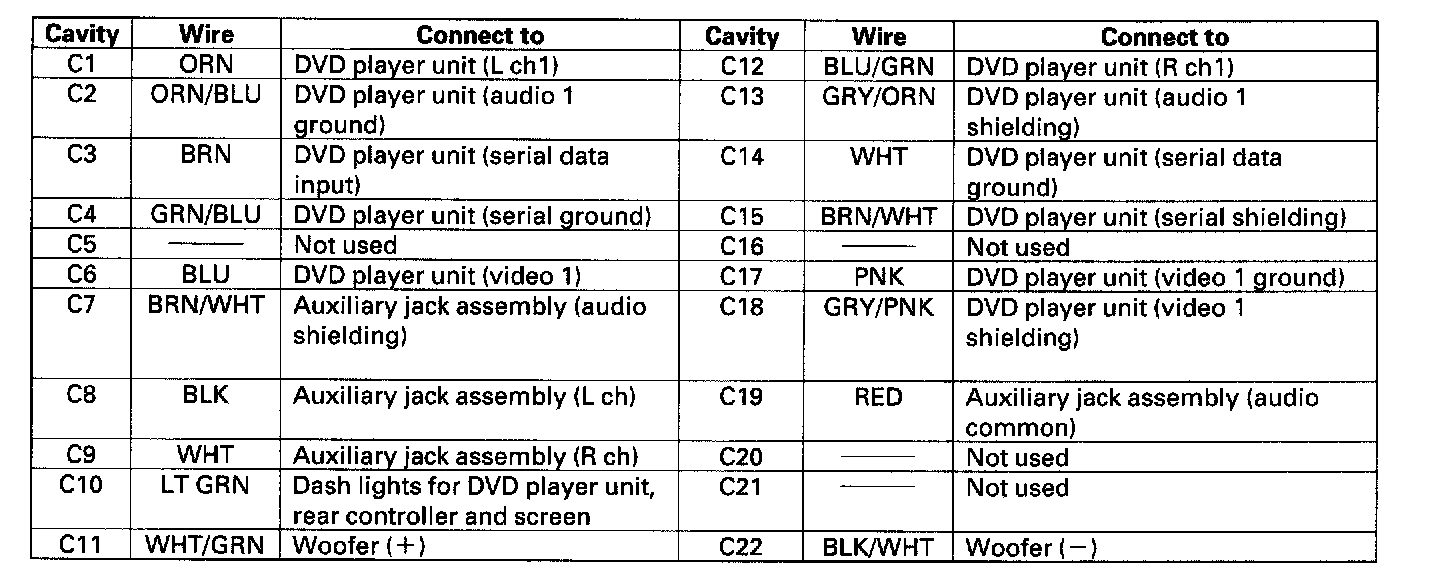

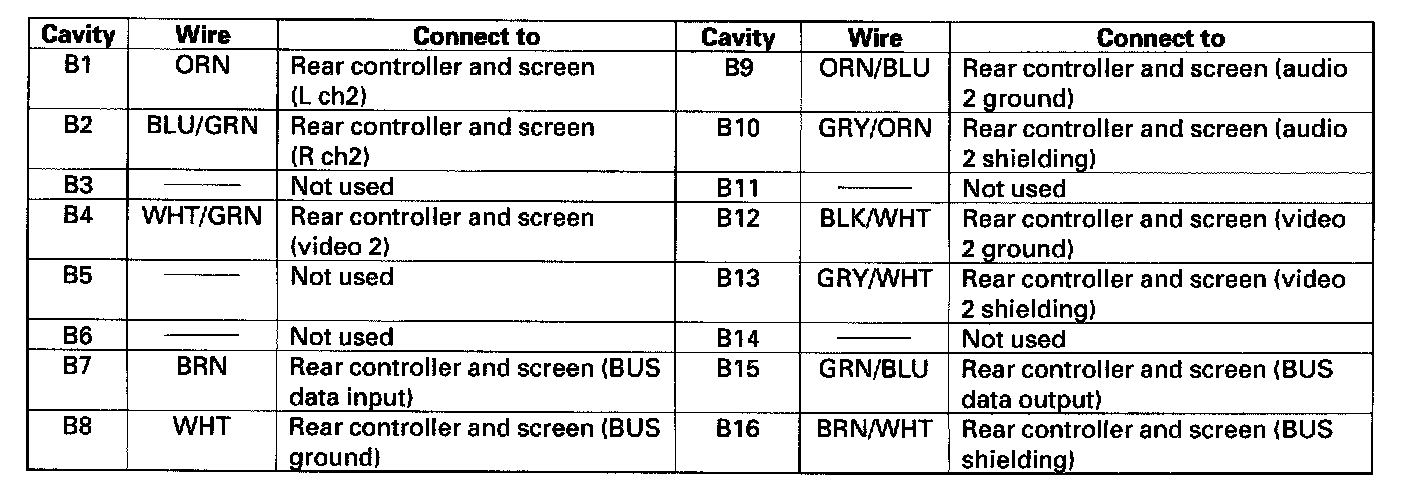

When replacing an audio unit connector, match the wires to the cavities listed in the table.
