DVD Player Unit Connector Replacement

DVD Player Unit Connector Replacement

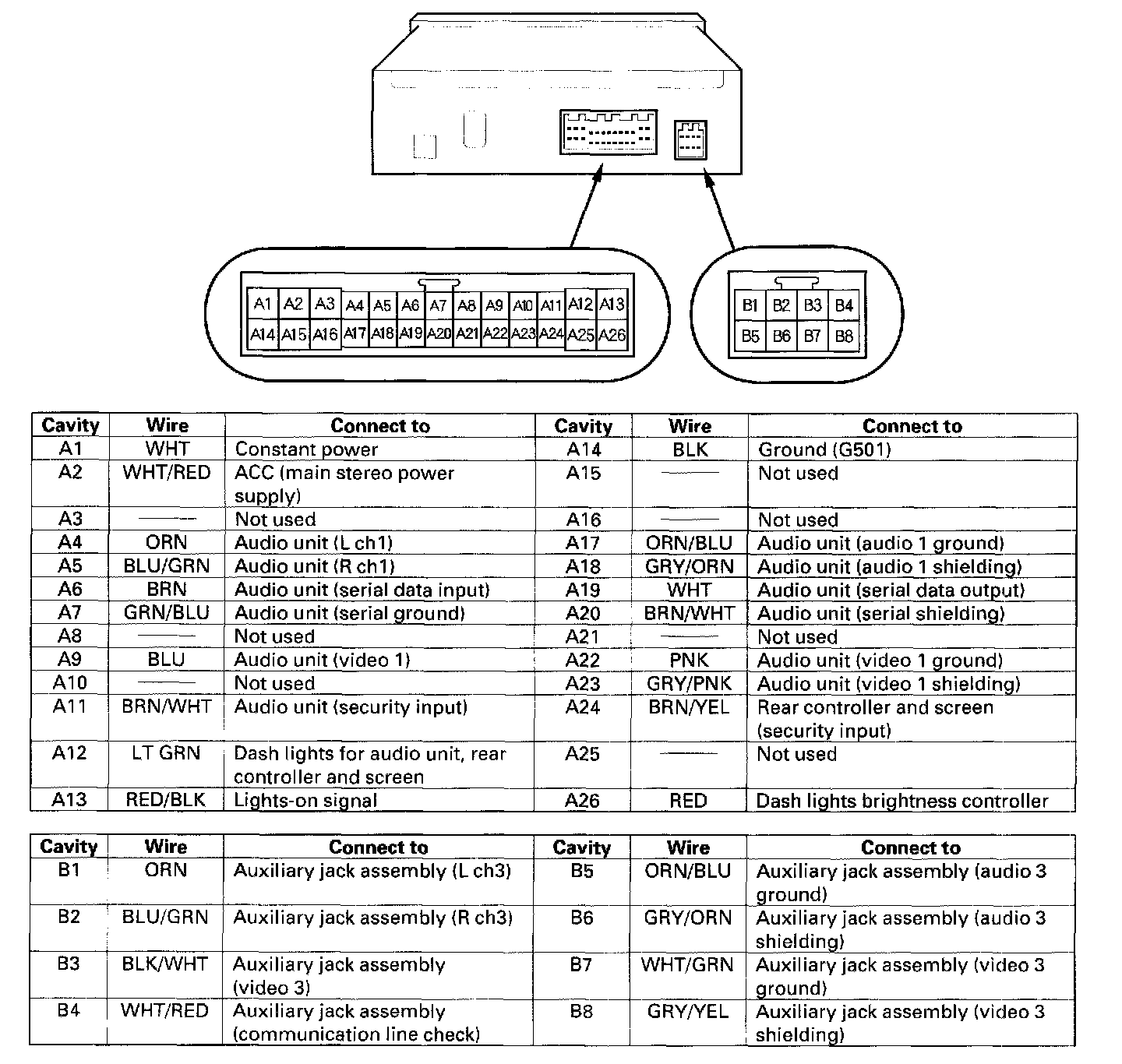

When replacing a DVD player unit connector, match the wires to the cavities listed in the table.
