Power Seat Motor: Testing and Inspection

Motor Test

1. Remove the driver's seat.

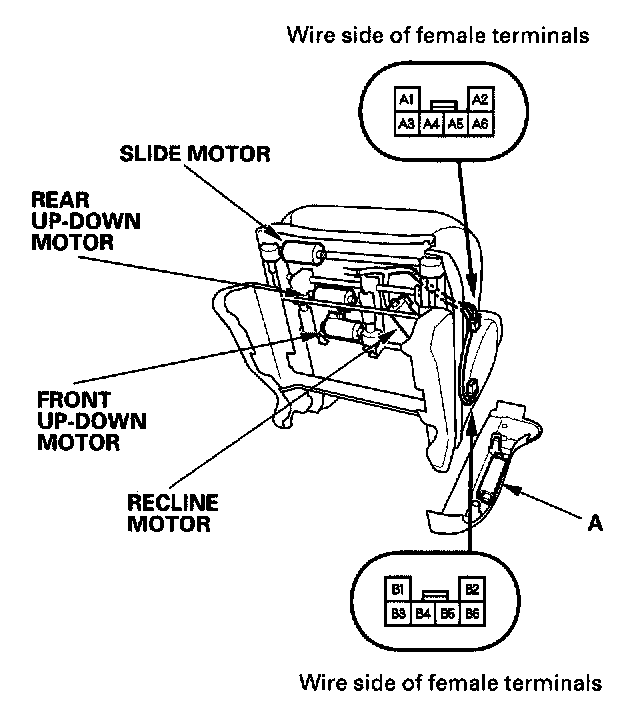

2. Disconnect the 6P connectors from the adjustment switch (A).

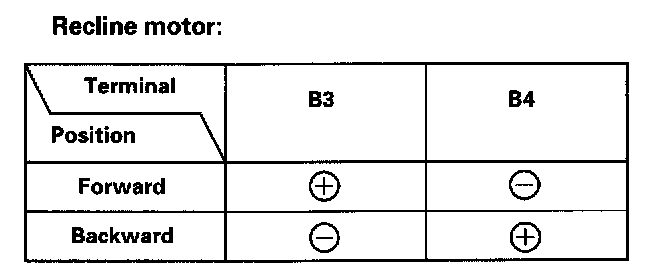

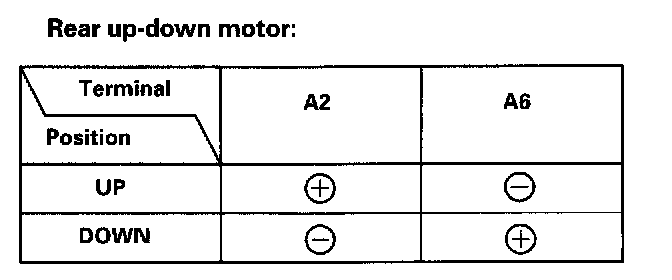

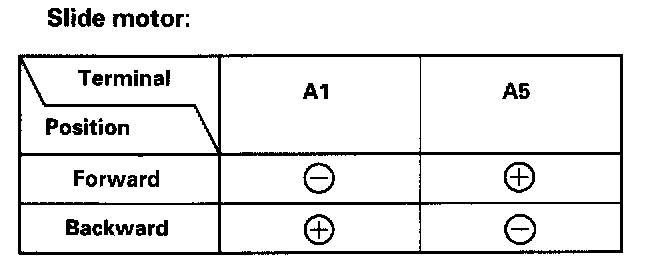

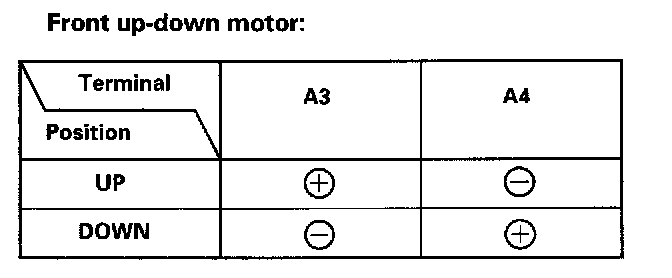

3. Test each motor by applying battery voltage and body ground to the terminals.
4. If the motor does not run or fails to run smoothly, check for an open in the driver's seat wire harness between the 6P connector and each 2P power seat motor connector. If the harness is OK, replace the motor.
