Rear

Rear Brake Pads Inspection and Replacement

CAUTION: Frequent inhalation of brake pad dust, regardless of material composition, could be hazardous to your health.
^ Avoid breathing dust particles.
^ Never use an air hose or brush to clean brake assemblies. Use an OSHA-approved vacuum cleaner.

Inspection

1. Raise the rear of the vehicle, and make sure it is securely supported. Remove the rear wheels.

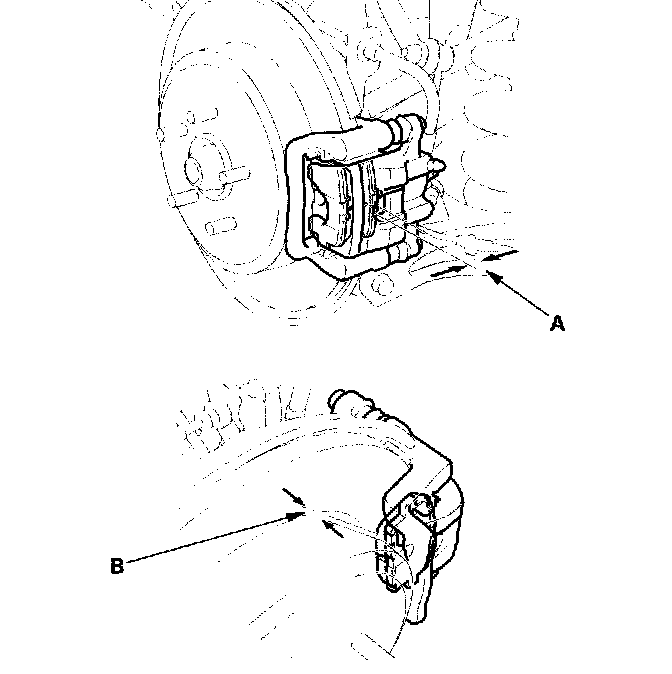

2. Check the thickness of the inner pad (A) and outer pad (B). Do not include the thickness of the backing plate.

Brake pad thickness:
Standard: 9.5 - 10.5 mm (0.37 - 0.41 inch)
Service Limit 1.6 mm (0.06 inch)

3. If the brake pad thickness is less than the service limit, replace all the pads as a set.

Replacement

1. Raise the rear of the vehicle, and make sure it is securely supported. Remove the rear wheels.

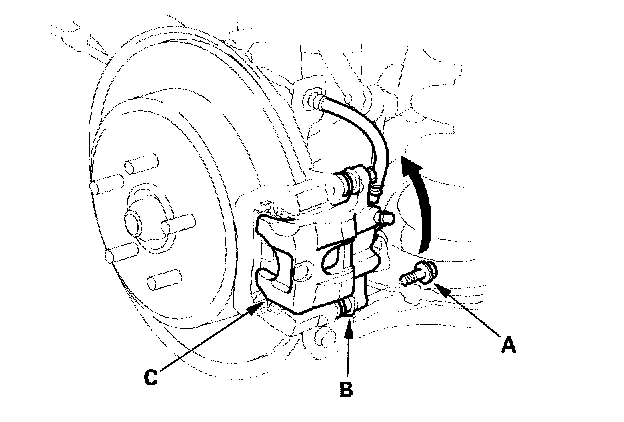

2. Remove the flange bolt (A) while holding the pin (B) with a wrench being careful not to damage the pin boot, and pivot the caliper (C) up out of the way. Check the hose and pin boots for damage and deterioration

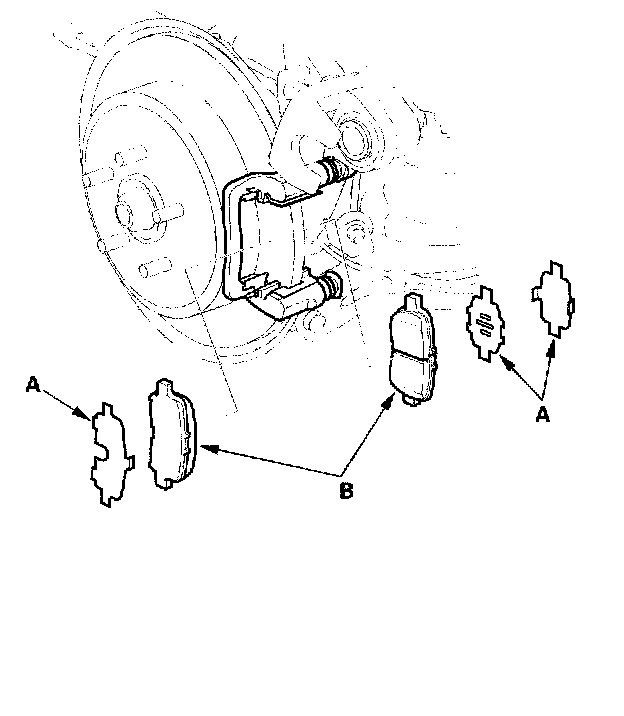

3. Remove the pad shims (A) and pads (B).

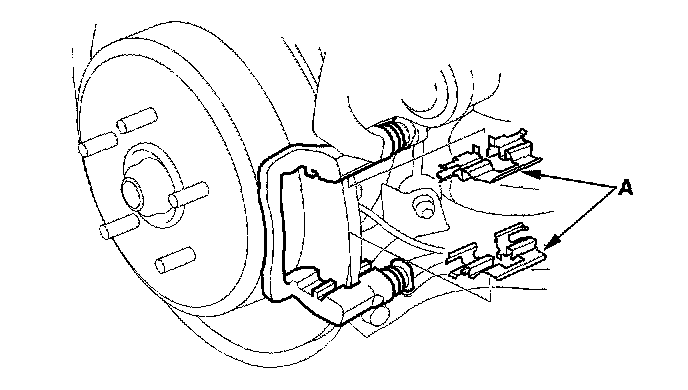

4. Remove the pad retainers (A).

5. Clean the caliper thoroughly; remove any rust, and check for grooves and cracks.

6. Check the brake disc for damage cracks.

7. Clean and install the pad retainers.

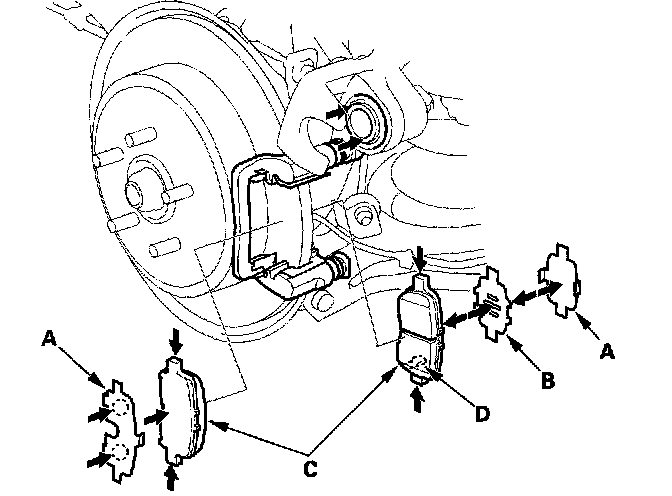

8. Apply Molykote M77 grease (P/N 08798-9010) to the pad side of the outer shims (A), both sides of the inner shim (B), the back of pads (C), and the other areas indicated by the arrows. Wipe excess grease off the shims and pads. Contaminated brake discs or pads reduce stopping ability. Keep grease off the brake discs and pads.

9. Install the brake pads and pad shims correctly. Install the pad with the wear indicator (D) on the inside.
If you are reusing the pads, always reinstall the brake pads in their original positions to prevent a momentary loss of braking efficiency.

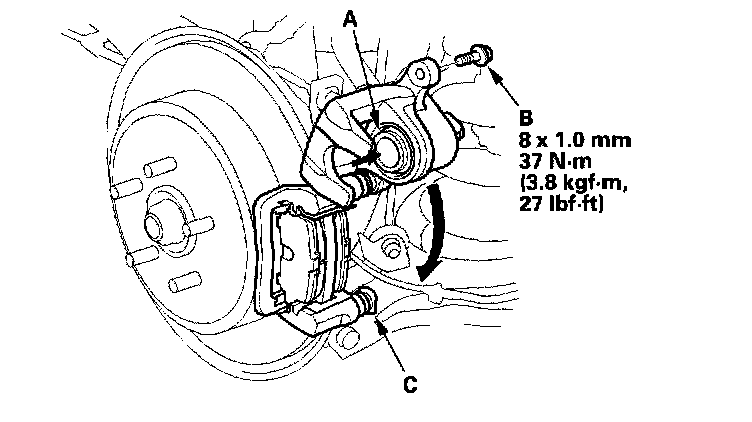

10. Push in the piston (A) so the caliper will fit over the pads. Make sure the piston boot is in position to prevent damaging it when pivoting the caliper down.

11. Pivot the caliper down into position. Install the flange bolt (B), and tighten it to the specified torque while holding the pin (C) with a wrench. Be careful not to damage the pin boot.

12. Press the brake pedal several times to make sure the brakes work, then test-drive.

NOTE: Engagement of the brake may require a greater pedal stroke immediately after the brake pads have been replaced as a set. Several applications of the brake pedal will restore the normal pedal stroke.

13. After installation, cheek for leaks at hose and line joints or connections, and retighten if necessary.
