Marker Lamp: Service and Repair

Bulb Replacement

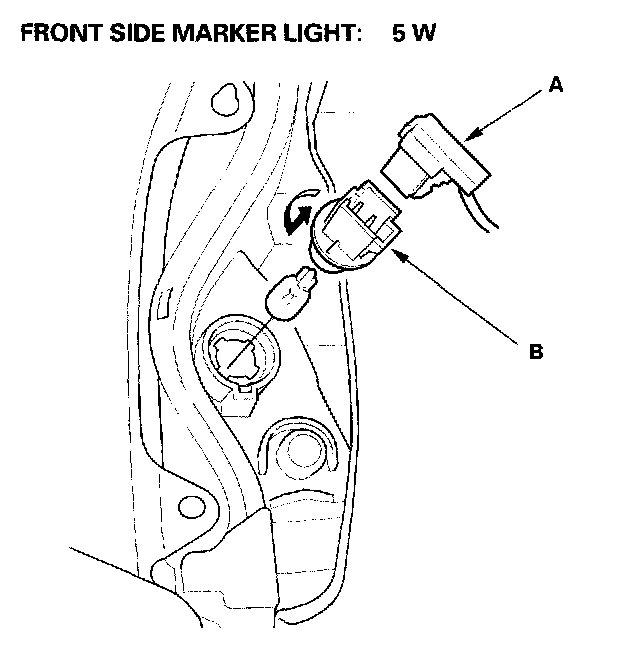

Front Side Marker Light:

1. Remove the inner fender.




2. Disconnect the connector (A) from the light.
3. Turn the bulb socket (B) 45 ° counterclockwise to remove it from the headlight housing.
4. Install a new bulb in the reverse order of removal.
