Circuit D04 - Power Source ECM/PCM

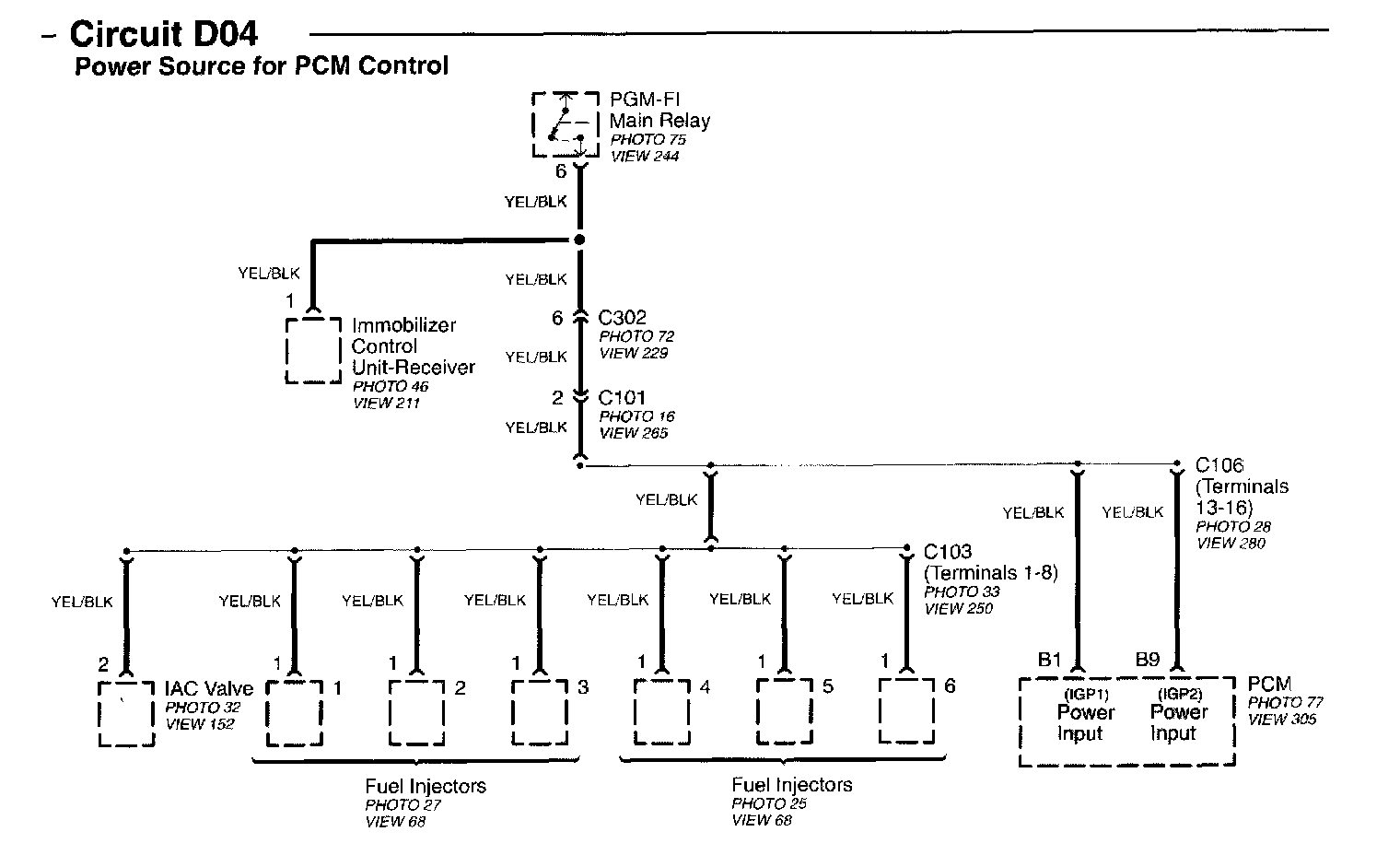

Circuit D04 - Power Source For PCM Control:



Circuit D04 - Power Source For PCM Control:
