Power Window Switch

169. Power Window Switch, Left Rear (4-door):



170. Power Window Switch, Right Rear (4-door):



185. Power Window Switch, Front Passenger's:

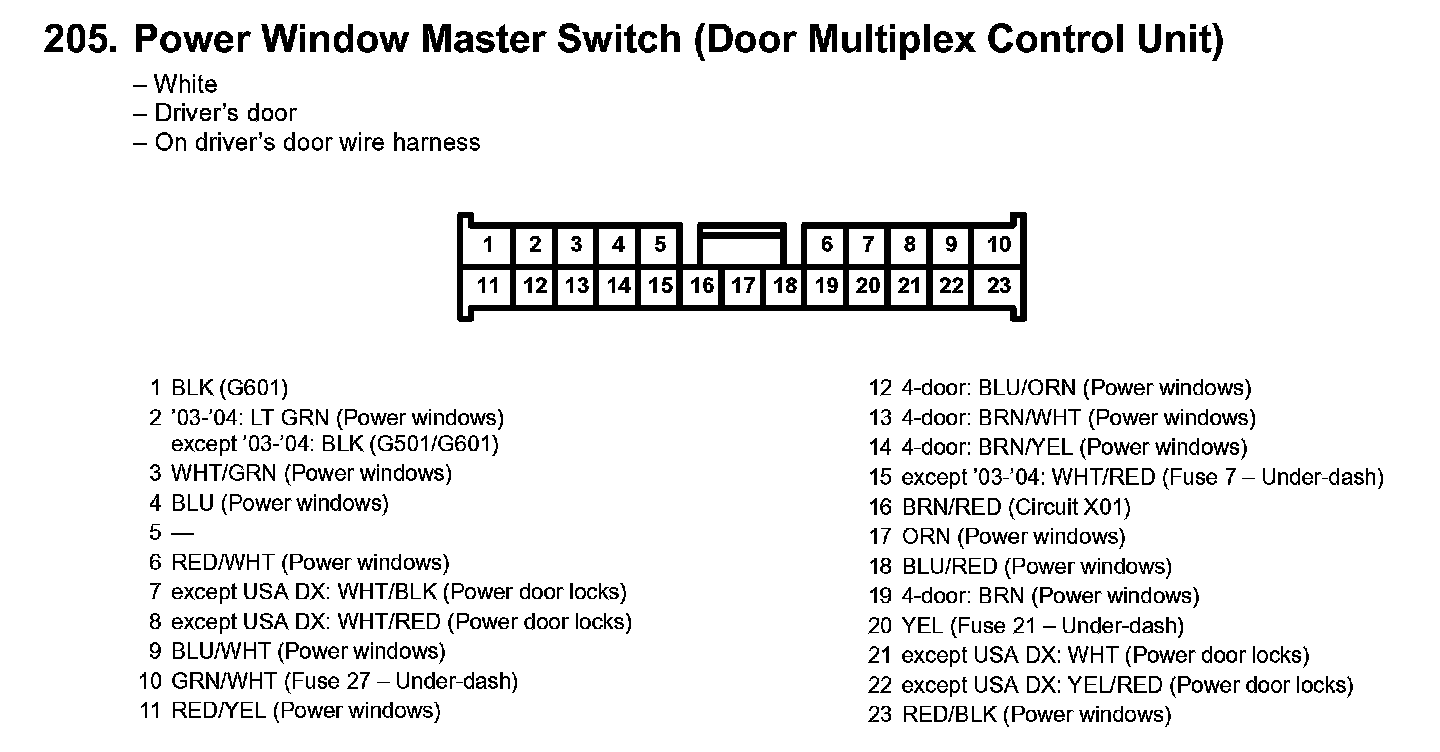

205. Power Window Master Switch (Door Multiplex Control Unit):
