Circuit Diagrams

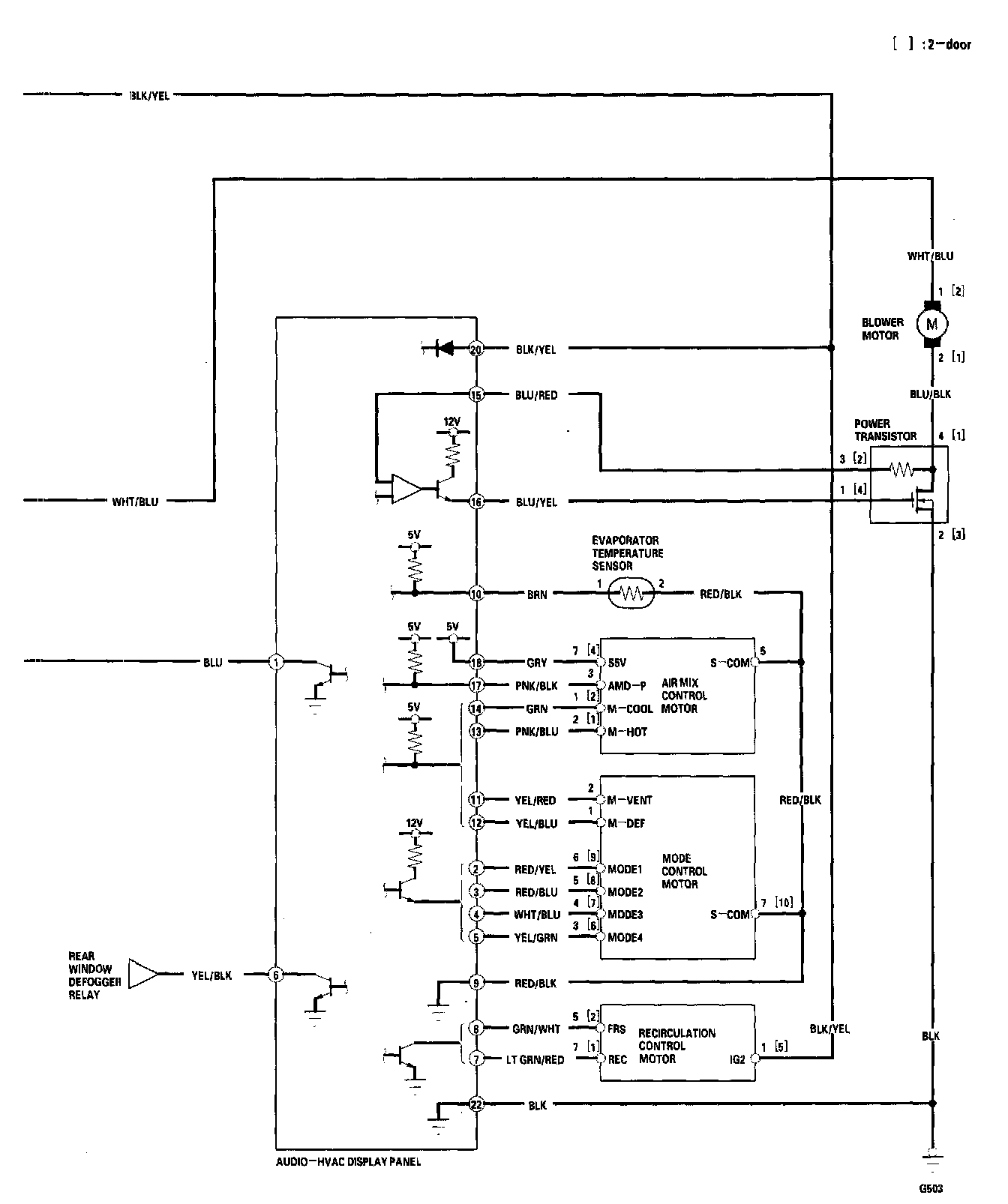

Air Conditioning - Circuit Diagram Part 1:

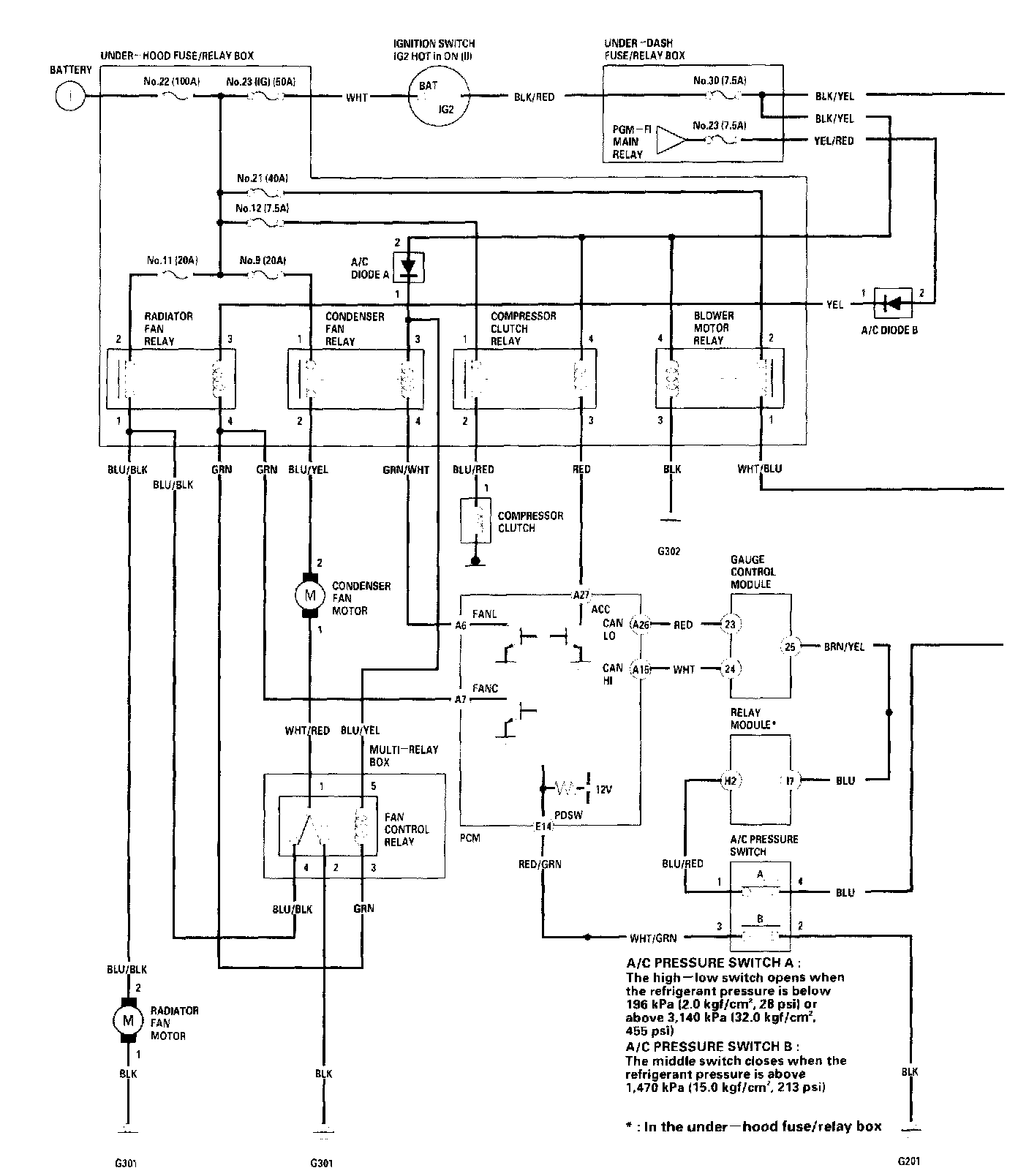

Air Conditioning - Circuit Diagram Part 2:

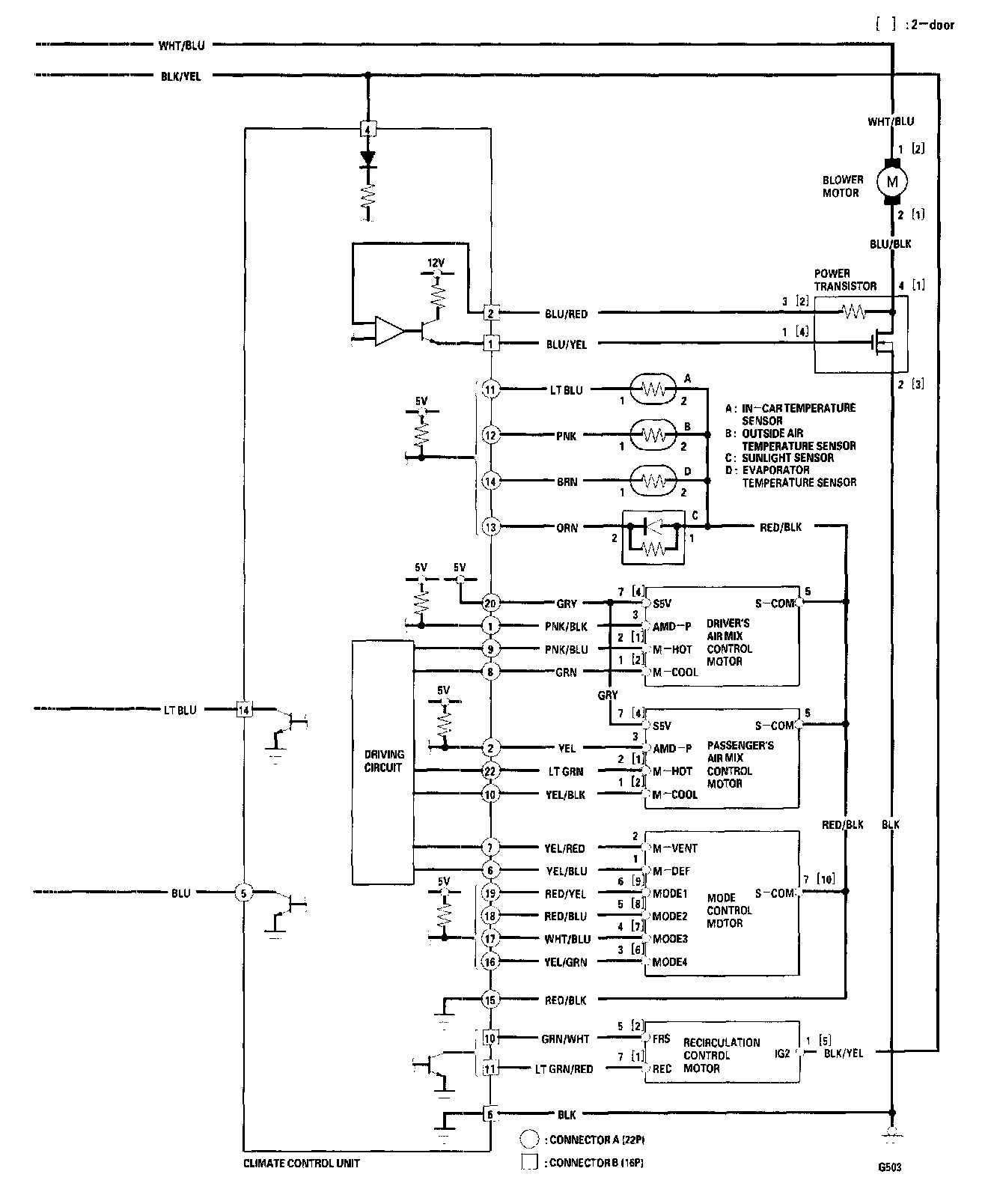

Climate Control - Circuit Diagram Part 1:

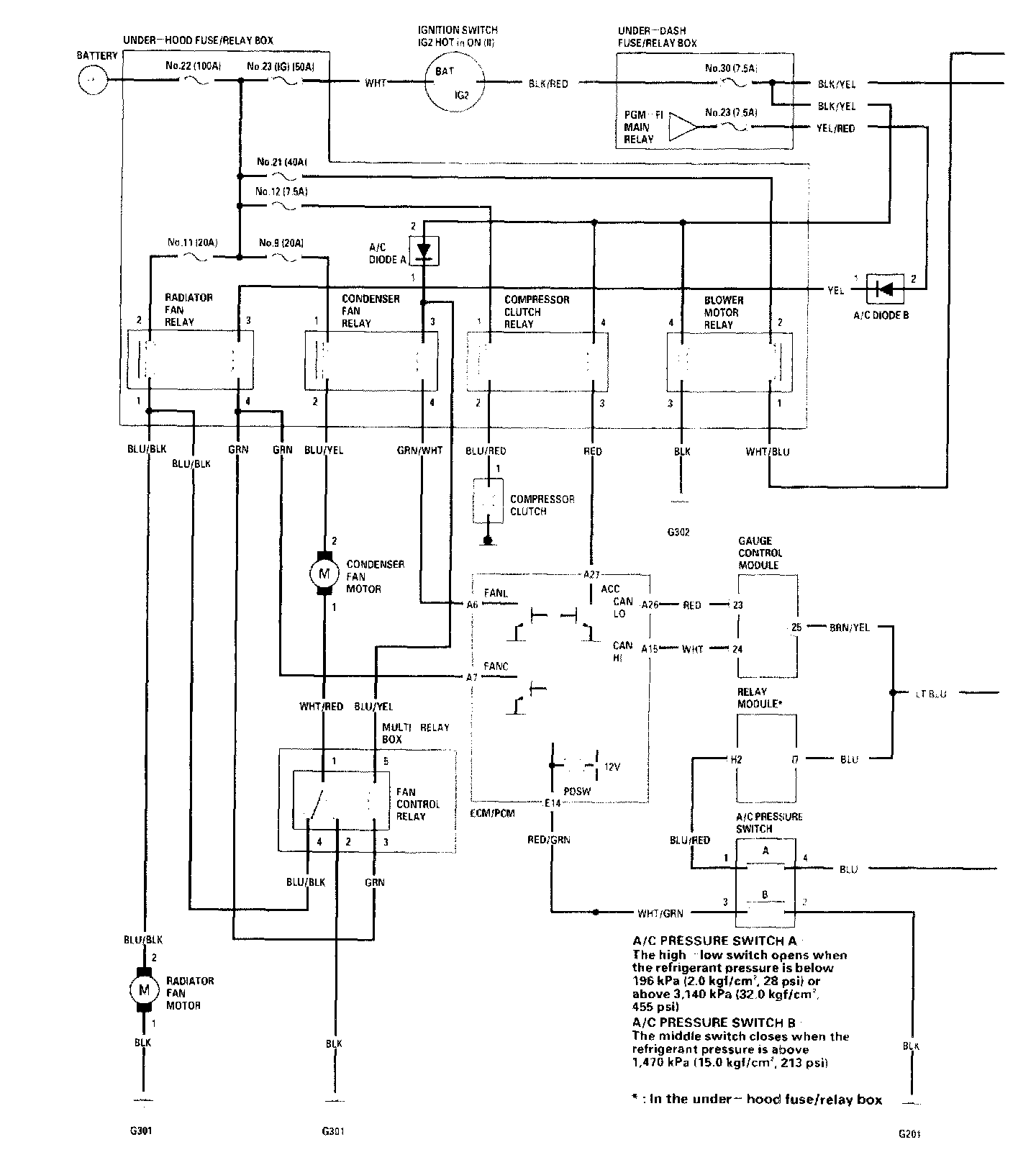

Climate Control - Circuit Diagram Part 2:
