Engine - Drive Belt Tensioner Replacement Instructions
08-082November 1, 2008
Applies To:
2003-07 Accord V6 - ALL
2005-06 Odyssey LX, EX - ALL
2005-06 Pilot 4WD - ALL
2006-07 Ridgeline - ALL
Drive Belt Auto-Tensioner Replacement Instructions
BACKGROUND
Replacement drive belt auto-tensioners have been updated. Installing this updated auto-tensioner requires the lower timing cover to be trimmed slightly for clearance.
This service bulletin duplicates the instructions packaged with the drive belt auto-tensioner.
CORRECTIVE ACTION
Trim the rib of the lower timing belt cover before installing the updated drive belt auto-tensioner.
REPAIR PROCEDURE
1. Remove the drive belt and auto-tensioner:
^ Refer to of the appropriate service manual, or
^ Online, enter keywords DRIVE BELT, and select Drive Belt Auto Tensioner Replacement from the list.
2. Raise the vehicle on a lift, and remove the right (passenger's) front wheel.
3. Remove the under cover from the right side to access the engine.

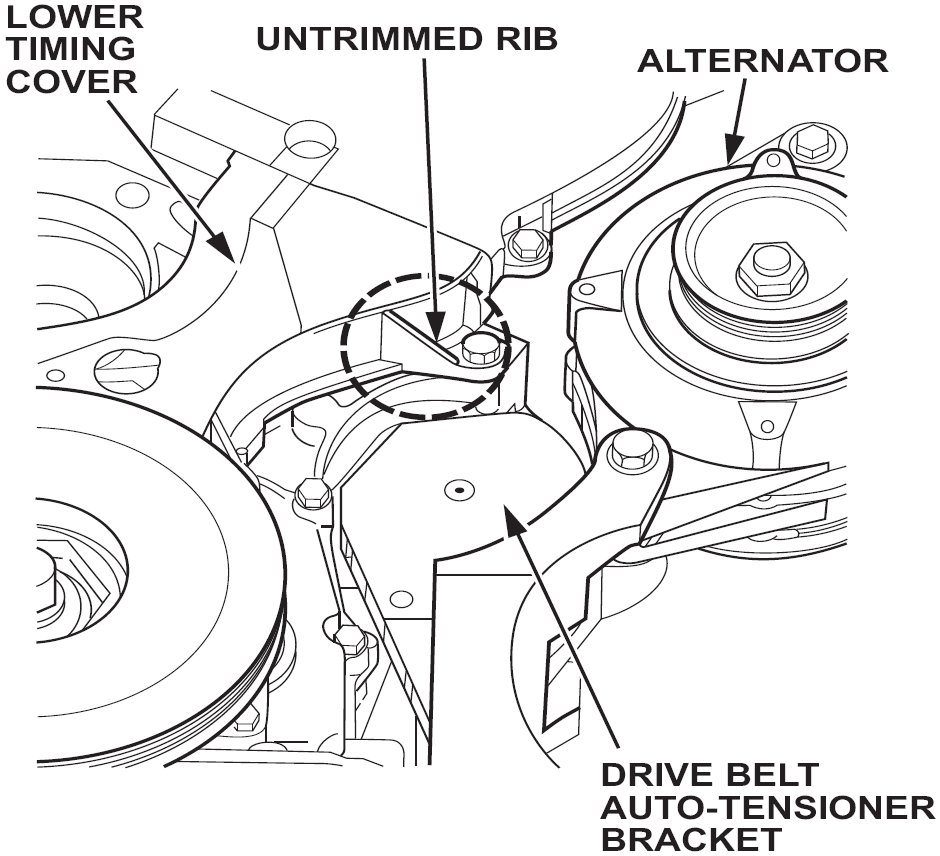

4. Looking in from the right front wheelwell opening, inspect the lower timing belt cover's rib.
^ If the rib is untrimmed (as in the 1st illustration above), go to step 5.
^ If the rib is already trimed (as in the 2nd illustration above), go to step 6.
5. As shown below, use a die grinder or a utility knife to trim off a 3-mm section of the lower timing belt cover.
6. Reinstall the right side under-cover.
7. Reinstall the right-front wheel, and lower the vehicle.
8. Install the new drive belt auto-tensioner.
9. Reinstall the drive belt.
