Engine Compartment Wire Harness (Right Branch)

Harness Location View:

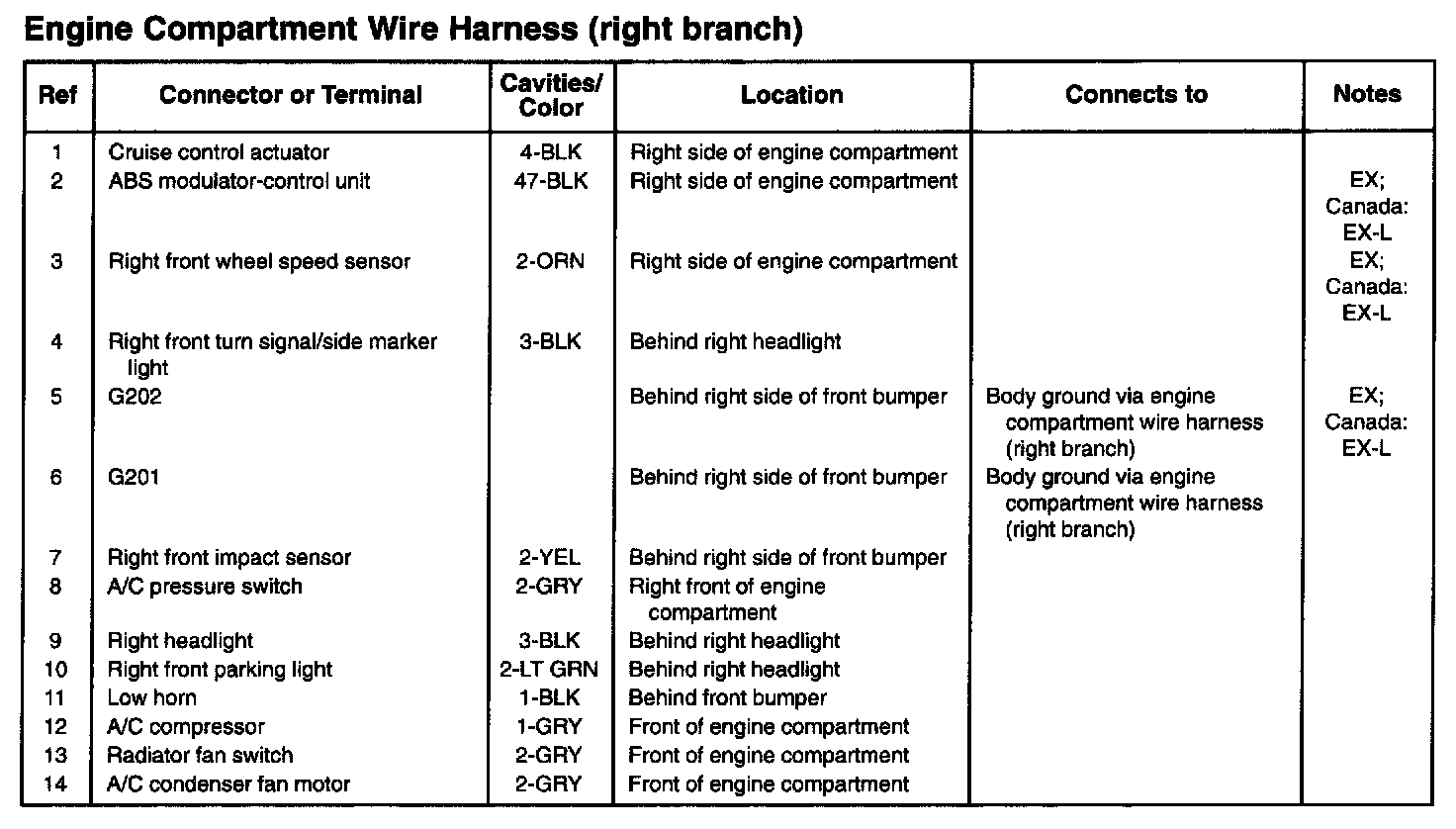

Engine Compartment Wire Harness (right Branch):
