Home >> Honda >> 2004 >> Civic L4-1.3L Hybrid >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> Views 176-200 >> 195

Views 176-200: 195

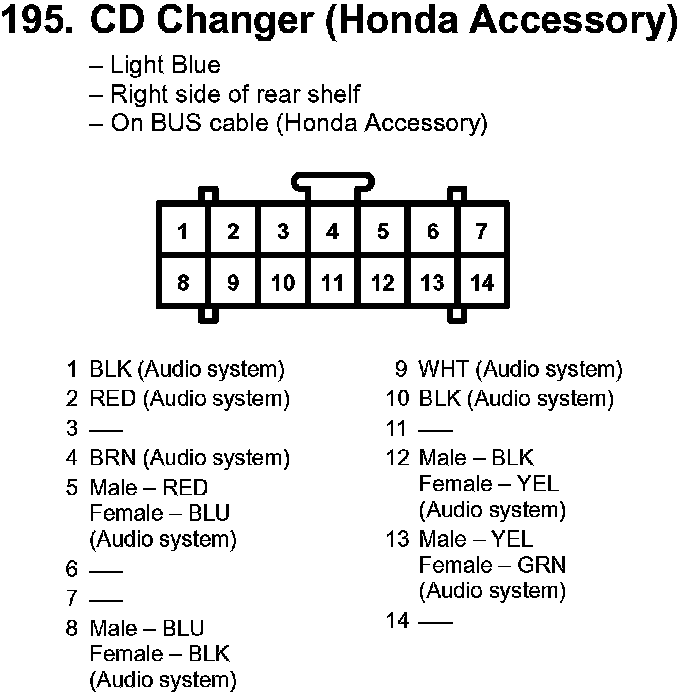

195. CD Changer (Honda Accessory):
