237
Views 226-241: 237

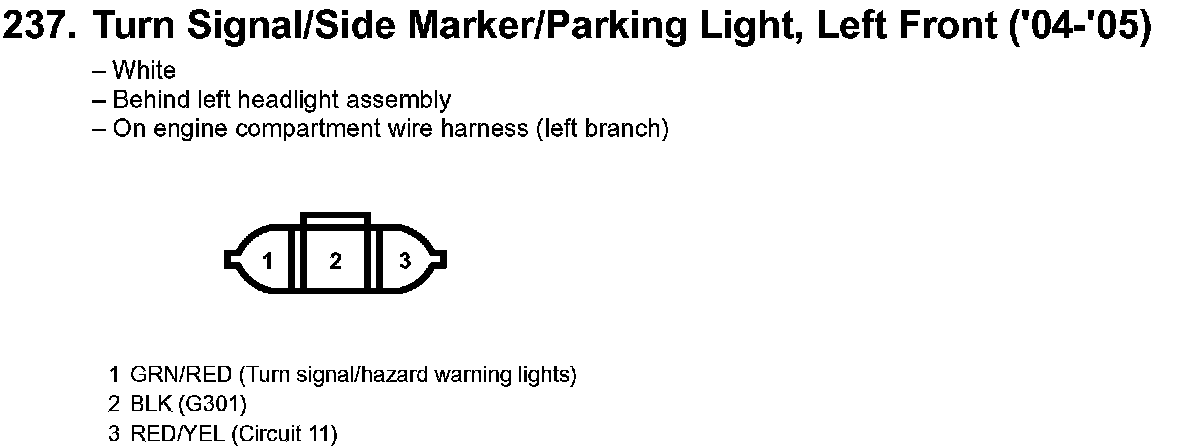

237. Turn Signal/Side Marker/Parking Light, Left Front:
238. Turn Signal/Side Marker/Parking Light, Right Front:
