Home >> Honda >> 2004 >> Civic L4-1.3L Hybrid >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> Views 51-75 >> 57

Views 51-75: 57

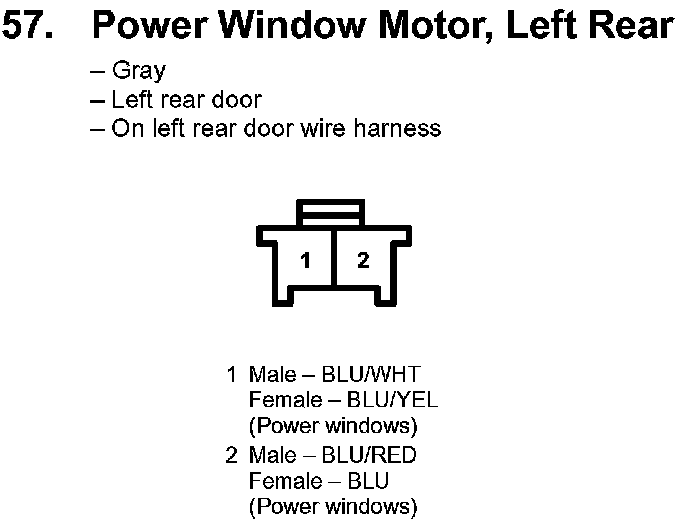

57. Power Window Motor, Left Rear:



58. Power Window Motor, Right Rear:
