Thermal Limiting Fuse: Service and Repair

Compressor Thermal Protector Replacement

1. Remove the field coil and the thermal protector.
2. Remove any remaining silicone sealant from the compressor.

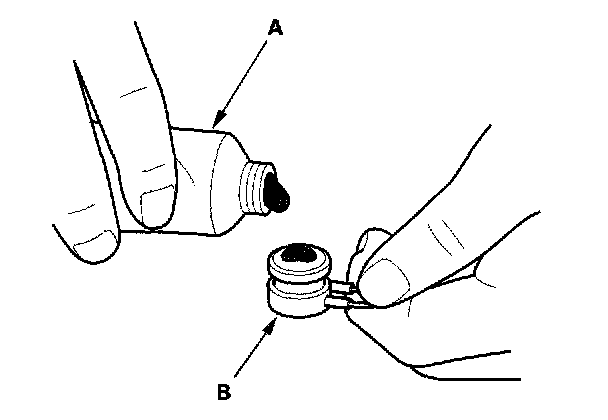

3. Replace the field coil and the thermal protector with a new one, and apply silicone sealant (A) to the bottom of the thermal protector (B).
4. Install the protector in the reverse order of removal.
