Engine - Coolant Temperature Sensor/Switch: Locations

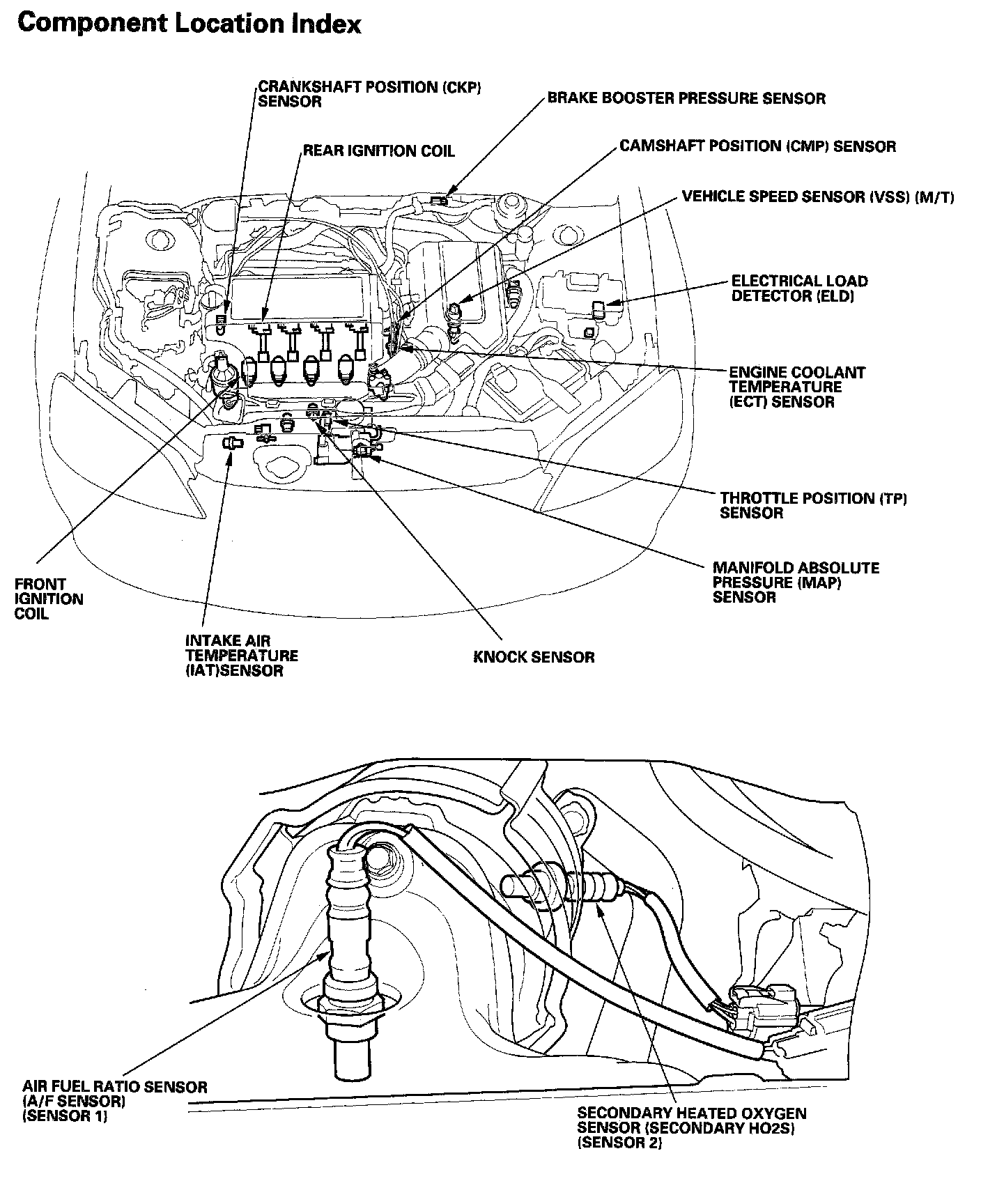

PGM-FI System - Component Location Index Part 1:

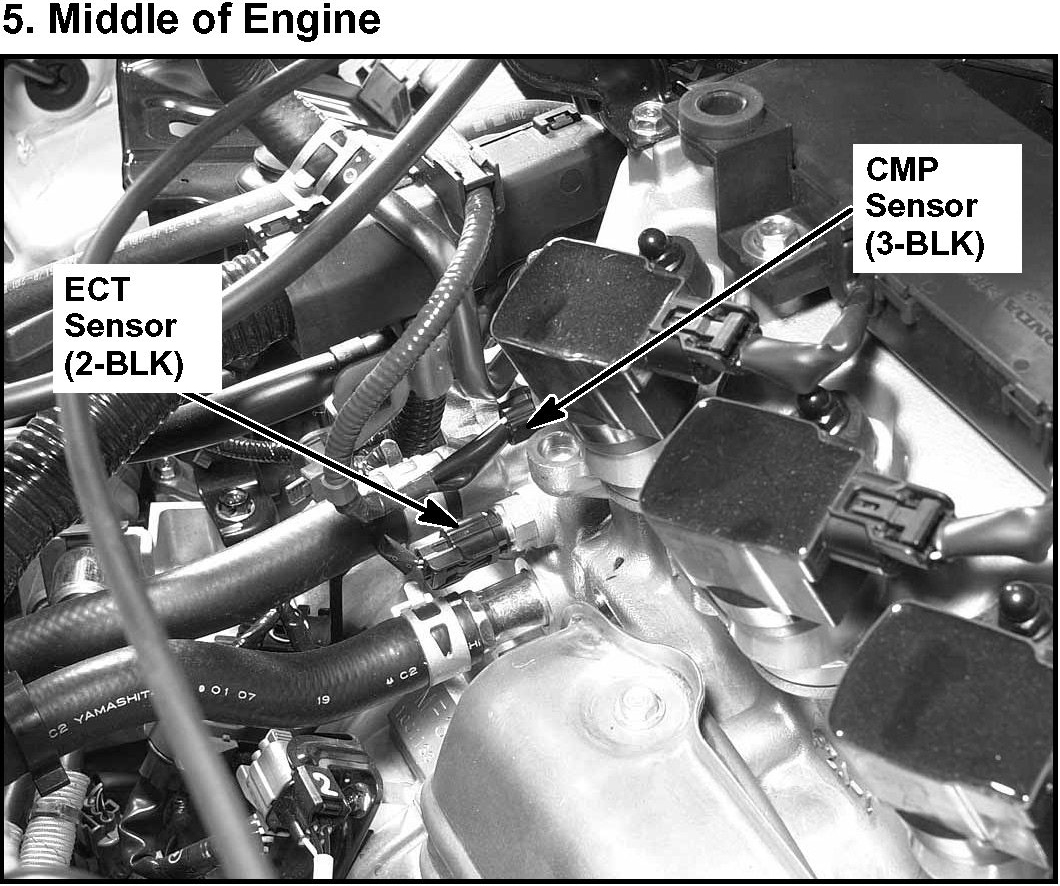

5. Middle Of Engine:
