Home >> Honda >> 2004 >> Civic L4-1.3L Hybrid >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Locations

Starting System: Locations

Starting System - Component Location Index:

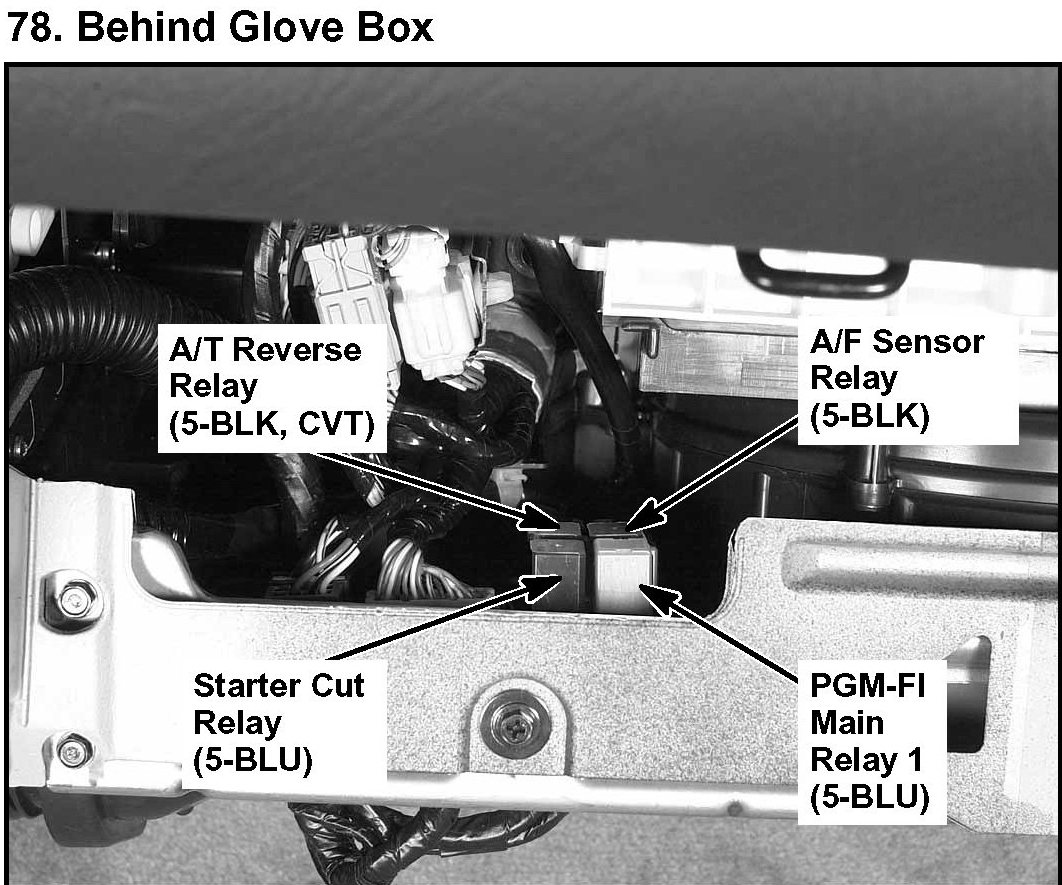

78. Behind Glove Box:

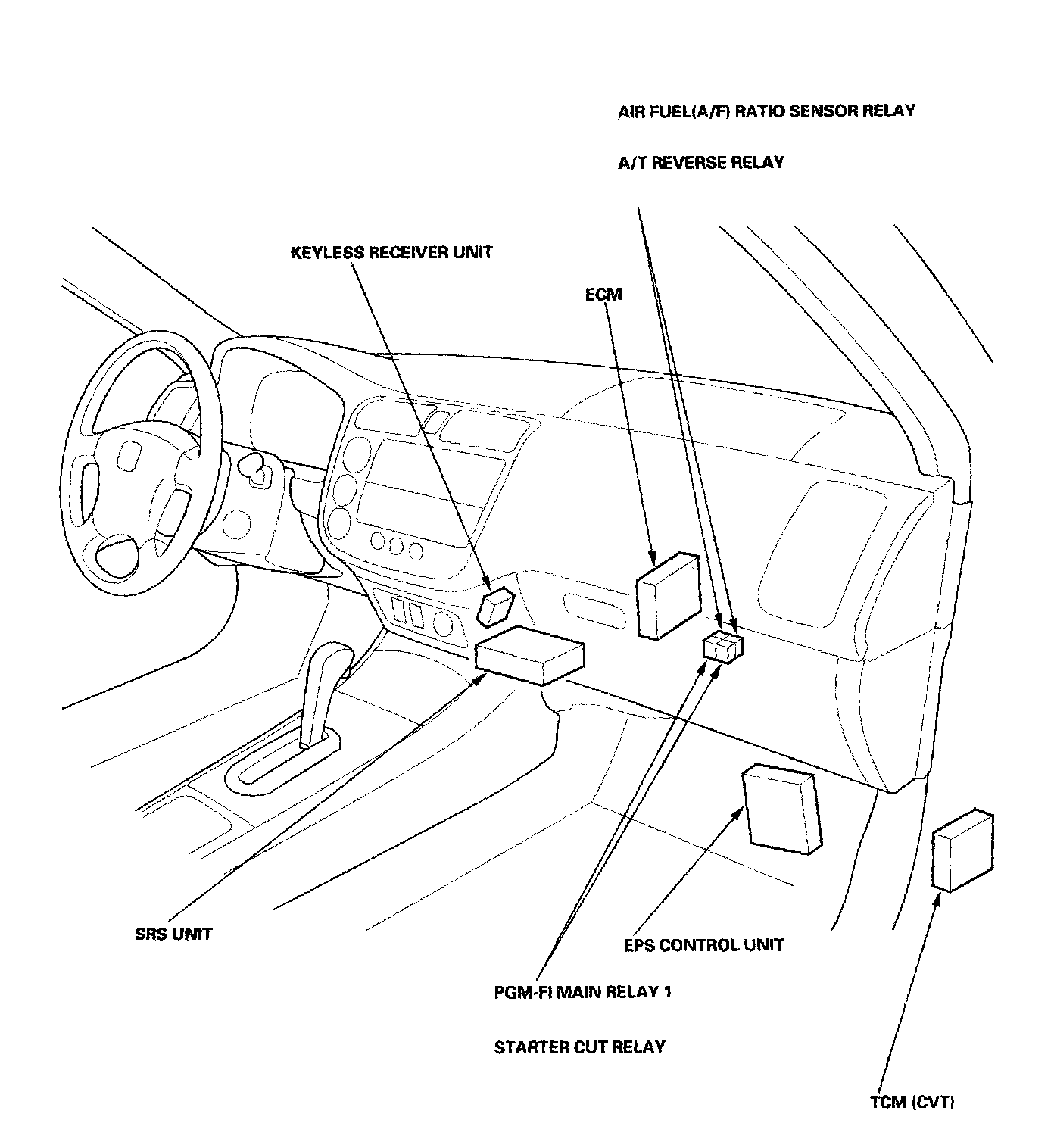

Relay And Control Unit Locations - Dashboard:
