Fluid Line/Hose: Service and Repair

ATF Cooler Hoses Installation

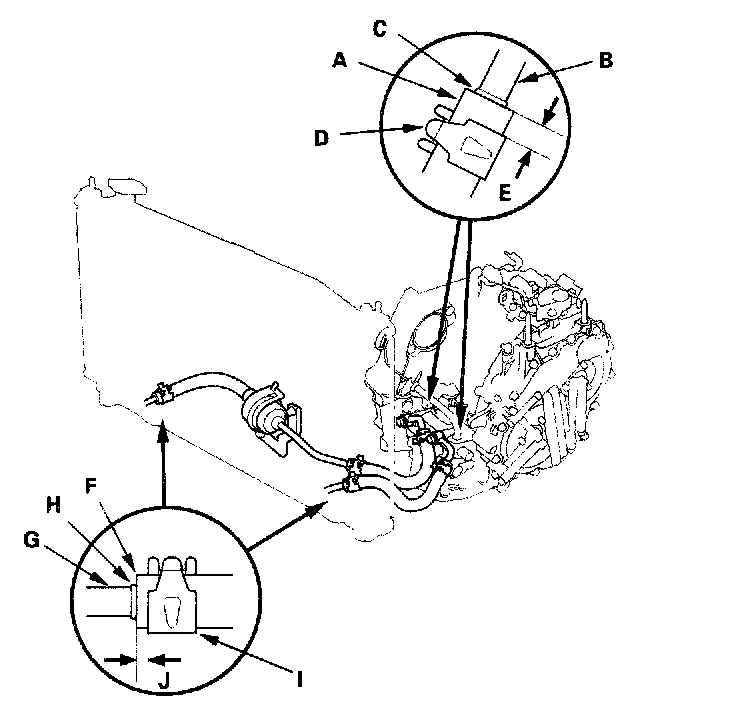

1. Slide the ATF cooler hoses (A) over the ATF cooler lines (B) to bulge (C) on the lines, then secure the hoses with the clips (D) at 6 - 8 mm (0.2 - 0.3 inch) (E) from the hose ends.
2. Slide the ATF cooler hoses (F) over the ATF cooler lines (G) to bulge (H) on the lines, then secure the hoses with the clips (I) at 2 - 4 mm (0.1 - 0.2 inch) (J) from the hose ends.
