Cruise Control Servo: Service and Repair

Cruise Control Actuator/Cable Replacement

Except 2-door D17A1, D17A2 engine:

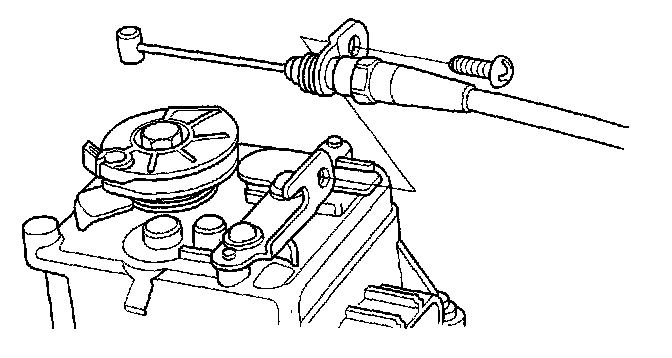

1. Loosen the lockout (A), then disconnect the actuator cable (B) from the throttle linkage.




2. Disconnect the 4P connector from the cruise control actuator.

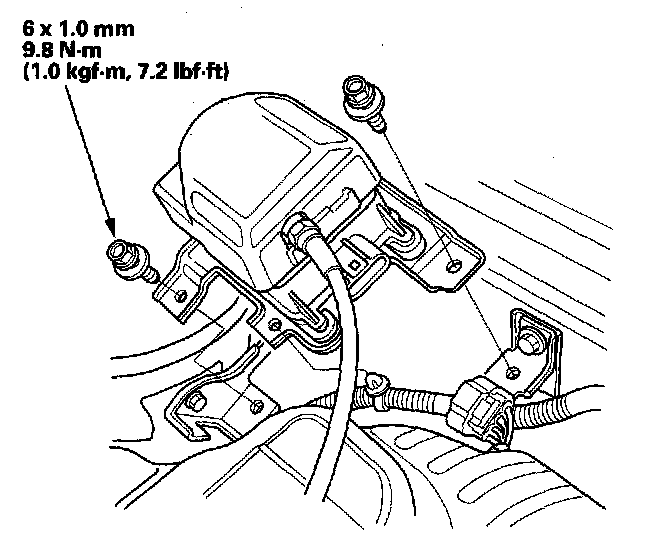

3. Remove the two mounting bolts, and remove the cruise control actuator assembly.




4. Remove the cruise control actuator cover from the cruise control actuator.




5. Remove the actuator cable from the cruise control actuator.
6. Install the reverse order of removal, and adjust the free play at the throttle linkage after connecting the actuator cable.

2-door D17A1, D17A2 engines:




1. Loosen the locknut (A), then disconnect the actuator cable (B) from the throttle linkage.




2. Disconnect the actuator cable from the cruise control actuator.




3. Disconnect the 12P connector from the cruise control actuator.

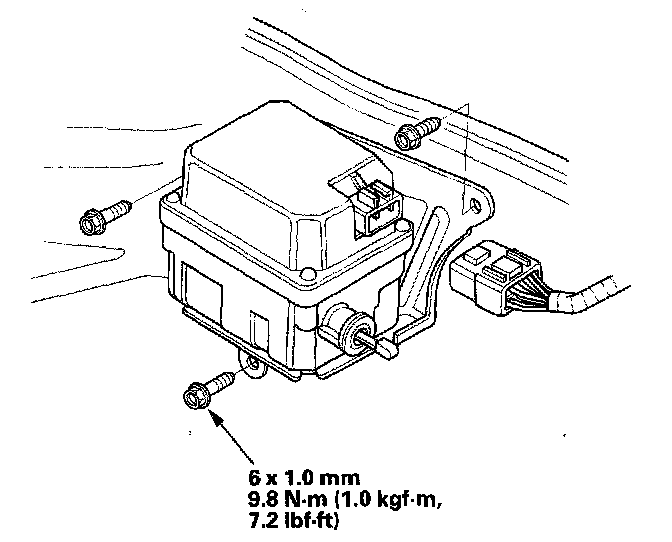

4. Remove the three mounting bolts, and remove the cruise control actuator.
5. Install the reverse order of removal, and adjust the free play at the throttle linkage after connecting the actuator cable.
