Engine Oil: Service and Repair
Engine Oil Replacement 1.
Warm up the engine.
2.

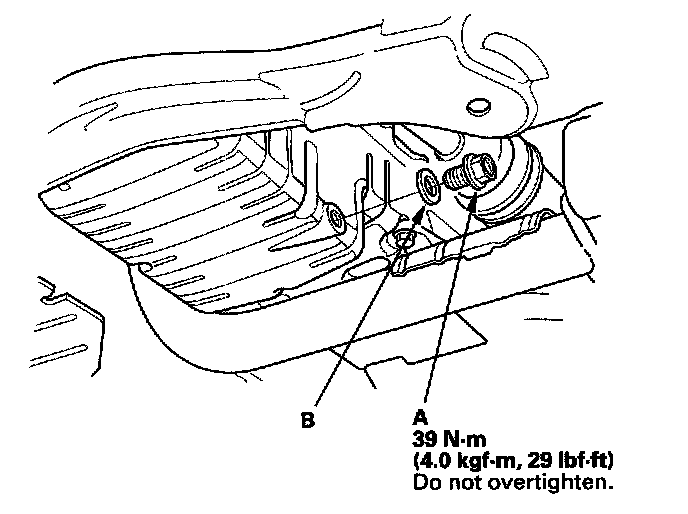

Remove the drain bolt (A), and drain the engine oil.
3.
Reinstall the drain bolt with a new washer (B).
4.
Refill with the recommended oil.
Capacity
At Oil Change:
3.3 L (3.5 US qt.) At Oil Change including Filter:
3.5 L (3.7 US qt.) After Engine Overhaul:
4.2 L (4.4 US qt.) 5.
Run the engine for more than 3 minutes, then check for oil leakage.
