Torque Specifications

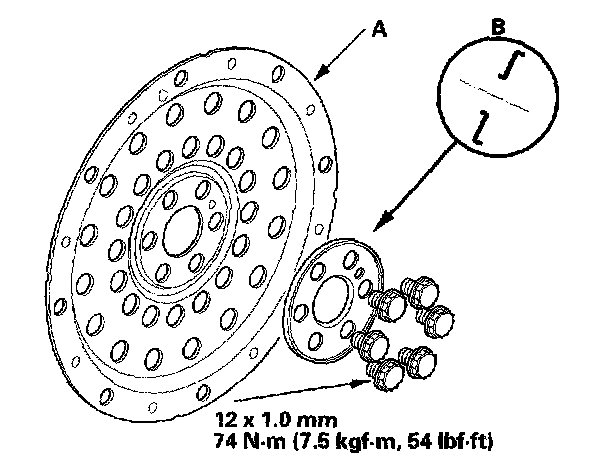

CVTDrive Plate Tighten the six bolts in a crisscross pattern.

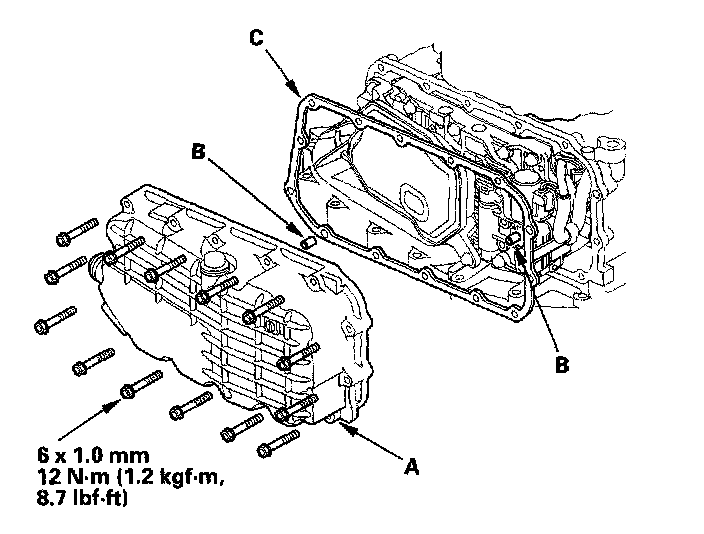

ATF Pan ATF pan/bolts
Overhaul Specifications Please refer to
Automatic Transmission/Transaxle, Service and Repair, Procedures, Continuously Variable Transmission, Overhaul (Transmission) and Overhaul (Differential).
