Shift Lock Solenoid Replacement
Shift Lock Solenoid Replacement1. Remove the center console panel and center console.
2. Disconnect the shift lock solenoid connector (2P), and remove it from the shift lever bracket base.

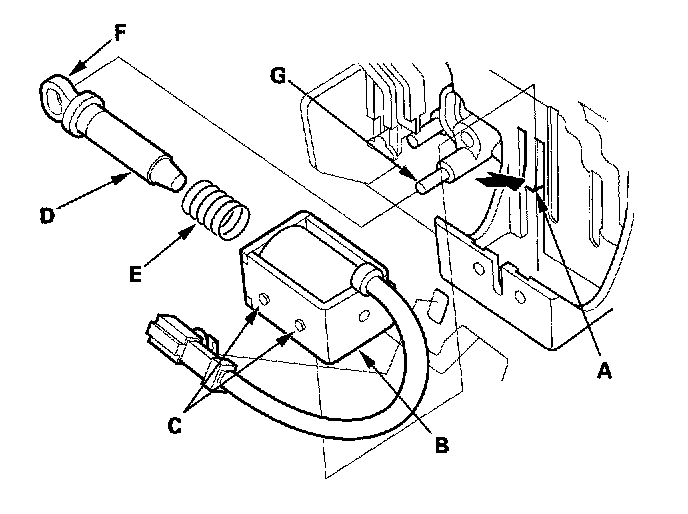

3. Push the lock tab (A), pry the shift lock solenoid (B) to clear the projected tips (C) with a screwdriver, and remove the shift lock solenoid.
4. Install the shift lock solenoid plunger (D) and plunger spring (E) in the new shift lock solenoid.
5. Install the shift lock solenoid by aligning the joint (F) of the shift lock solenoid plunger with the tip (G) of the shift lock stop.
6. Connect the shift lock solenoid connector, and install it on the shift lever bracket base.
7. Install the center console and console panel.
