Air Fuel (A/F) Ratio Sensor

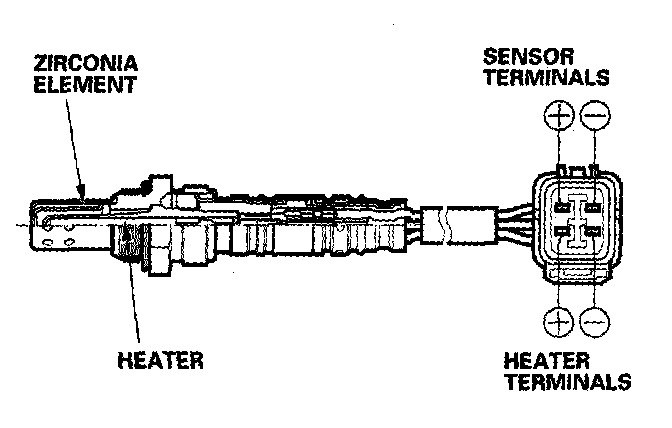

Air Fuel Ratio (A/F) sensor (D17A6 engine ('01-03 models) and all '04 model)
The A/F sensor operates over a wide air/fuel range. The A/F sensor is installed in the exhaust manifold.
