Connector Locations

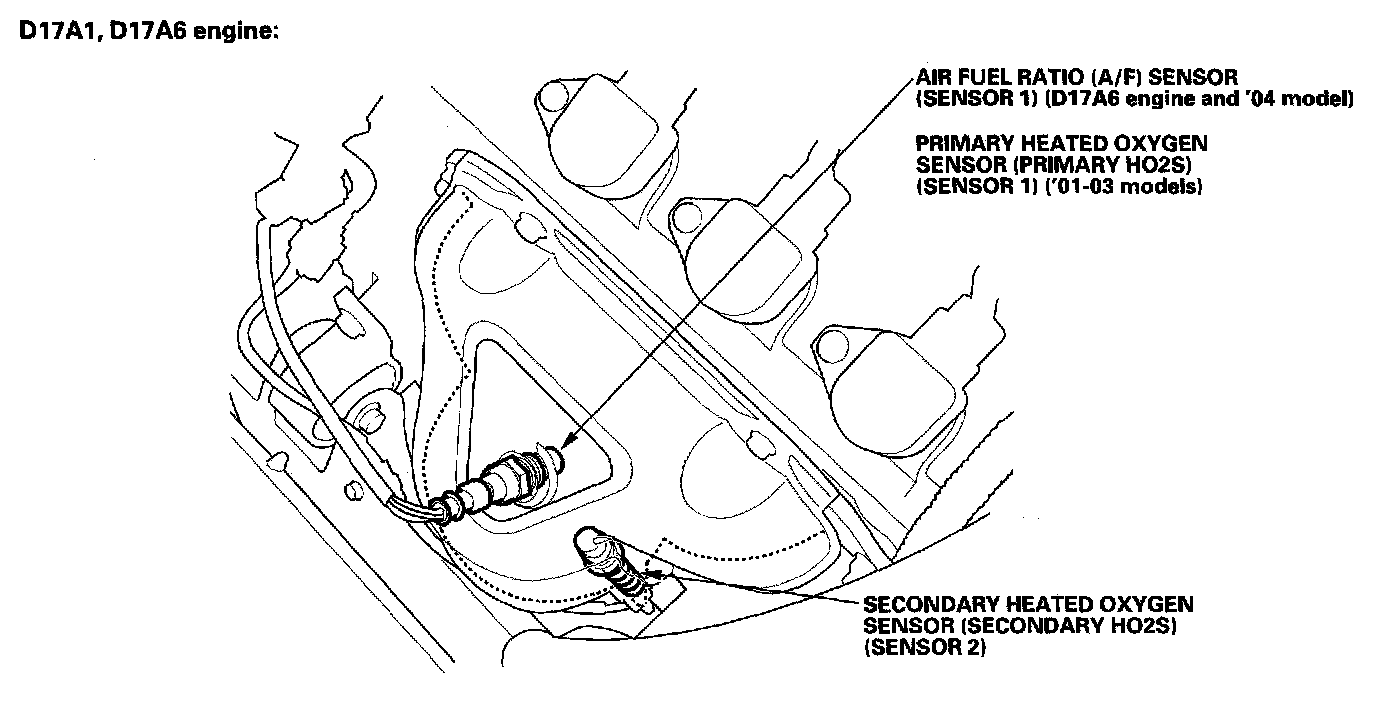

PGM-FI System - Component Location Index (D17A1, D17A6 Engine):

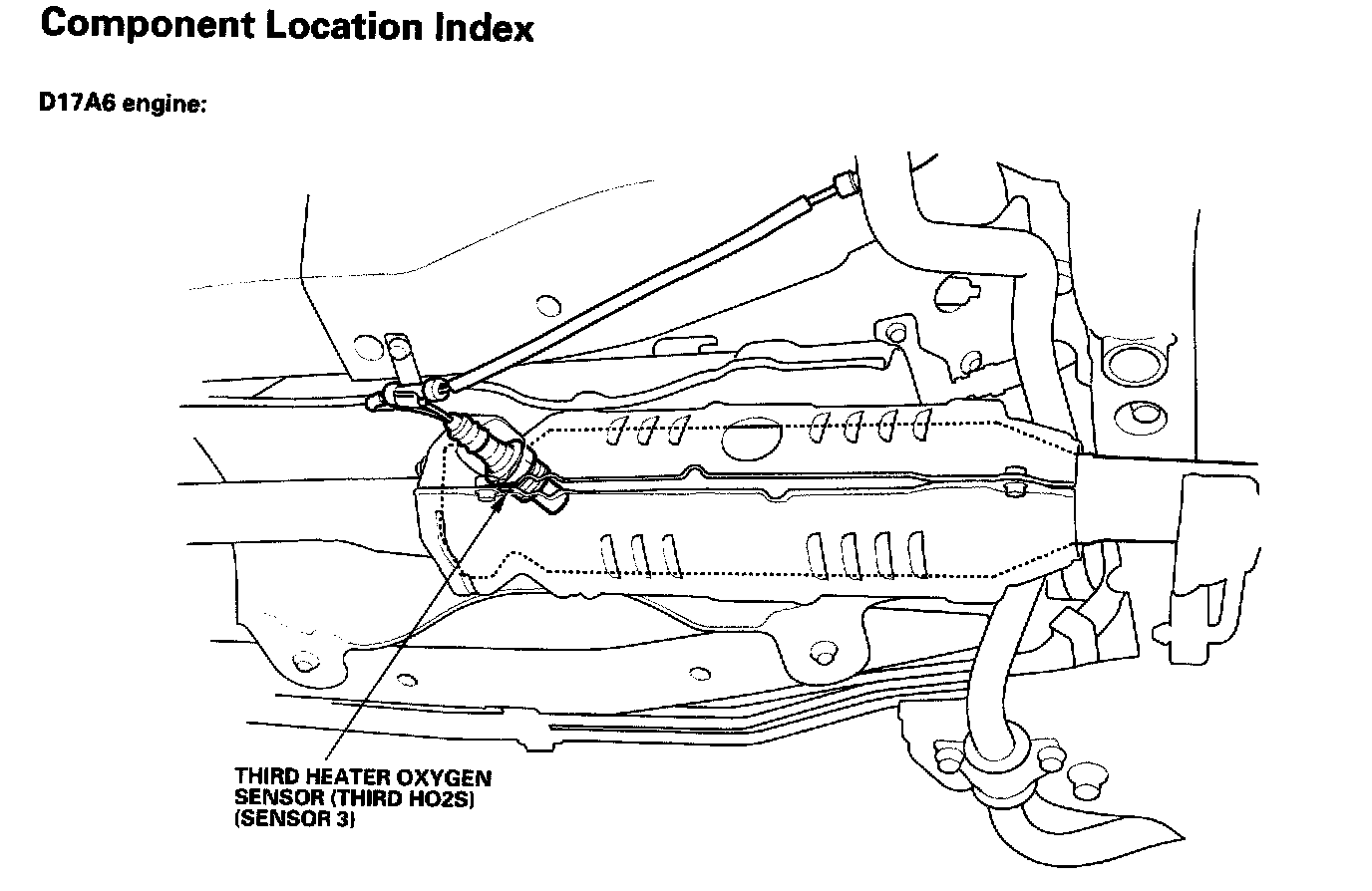

PGM-FI System - Component Location Index (D17A6 Engine):

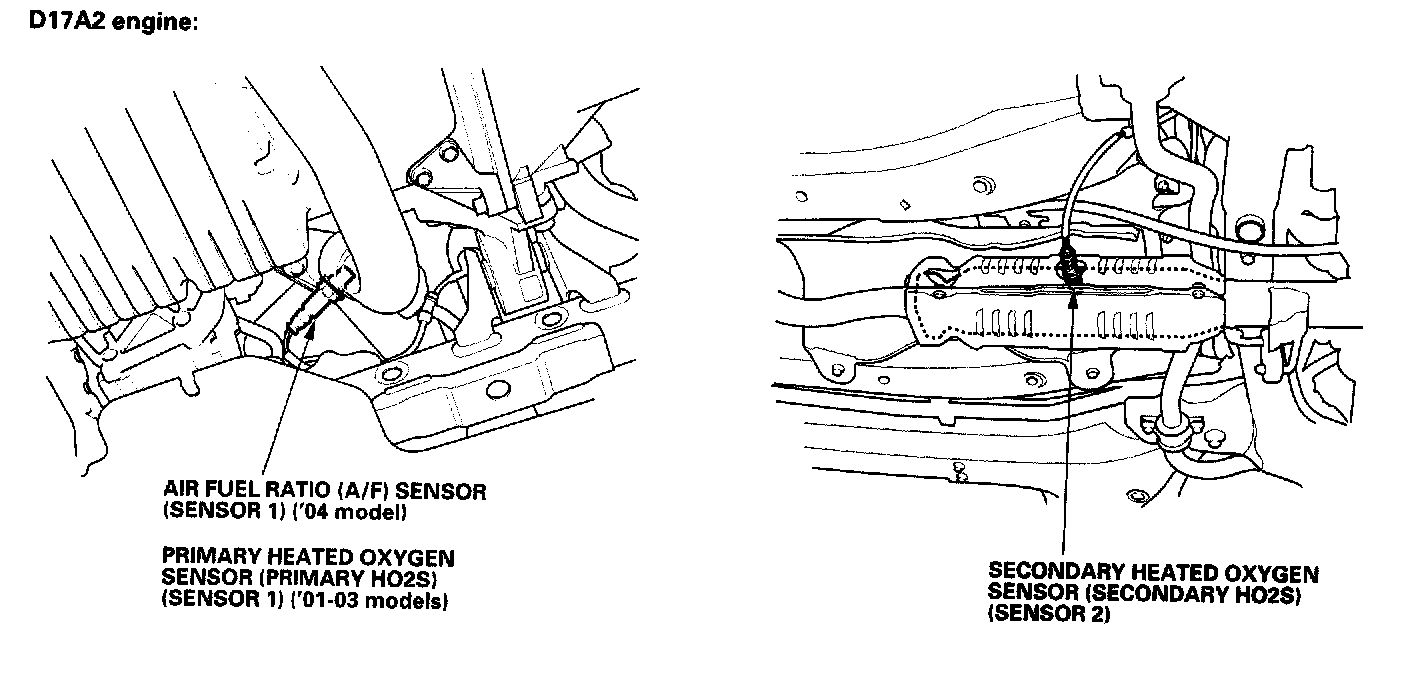

PGM-FI System - Component Location Index (D17A2 Engine):

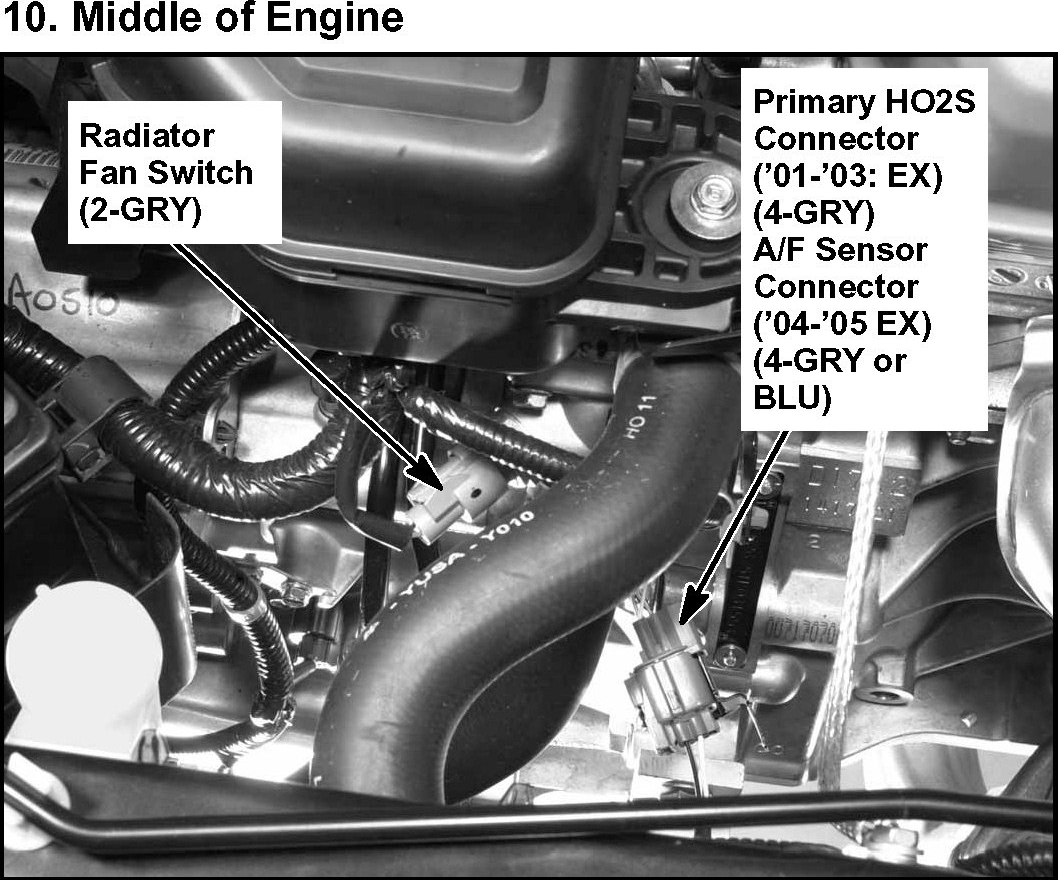

10. Middle Of Engine:

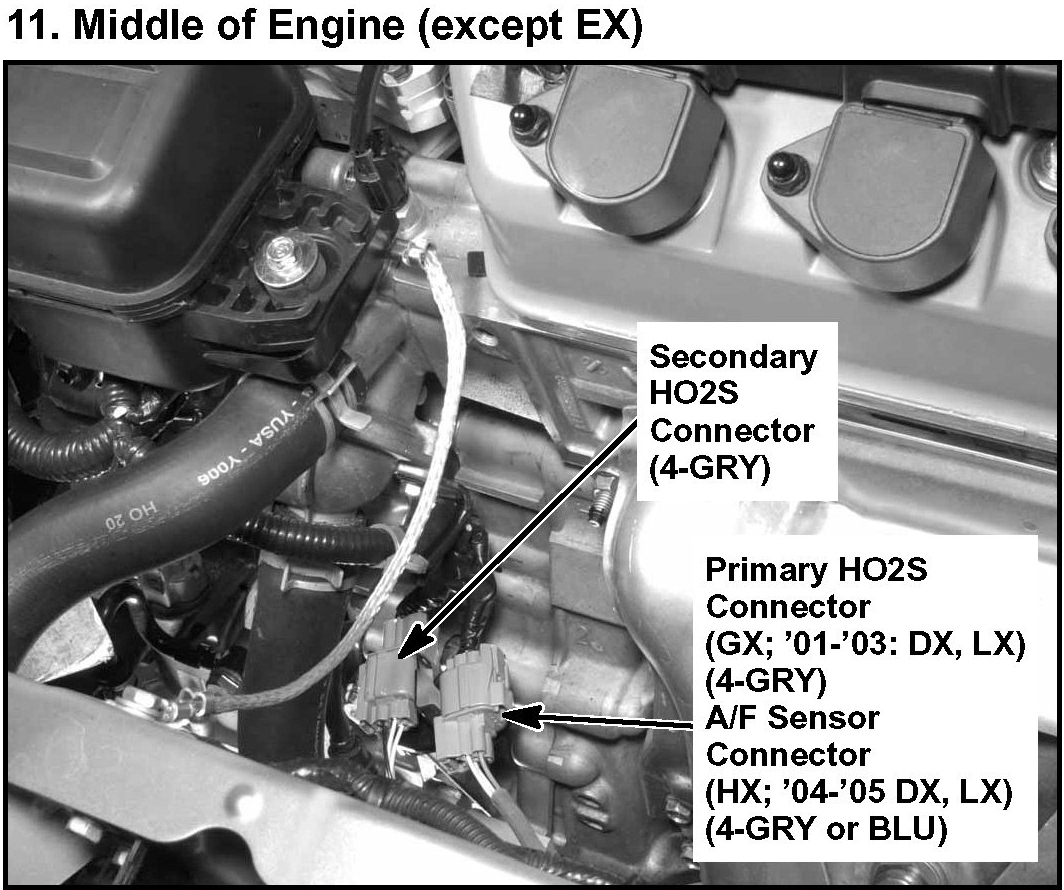

11. Middle Of Engine (except EX):

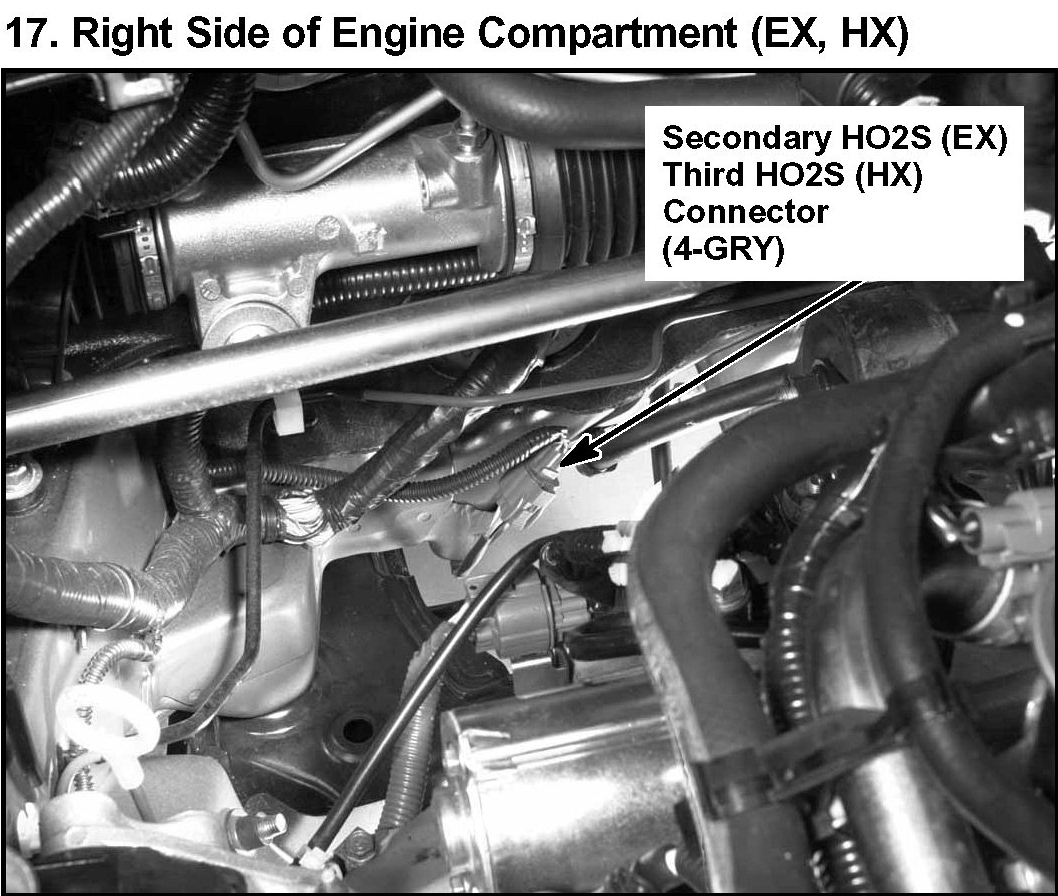

17. Right Side Of Engine Compartment (EX, HX):
