Main Relay (Computer/Fuel System): Locations

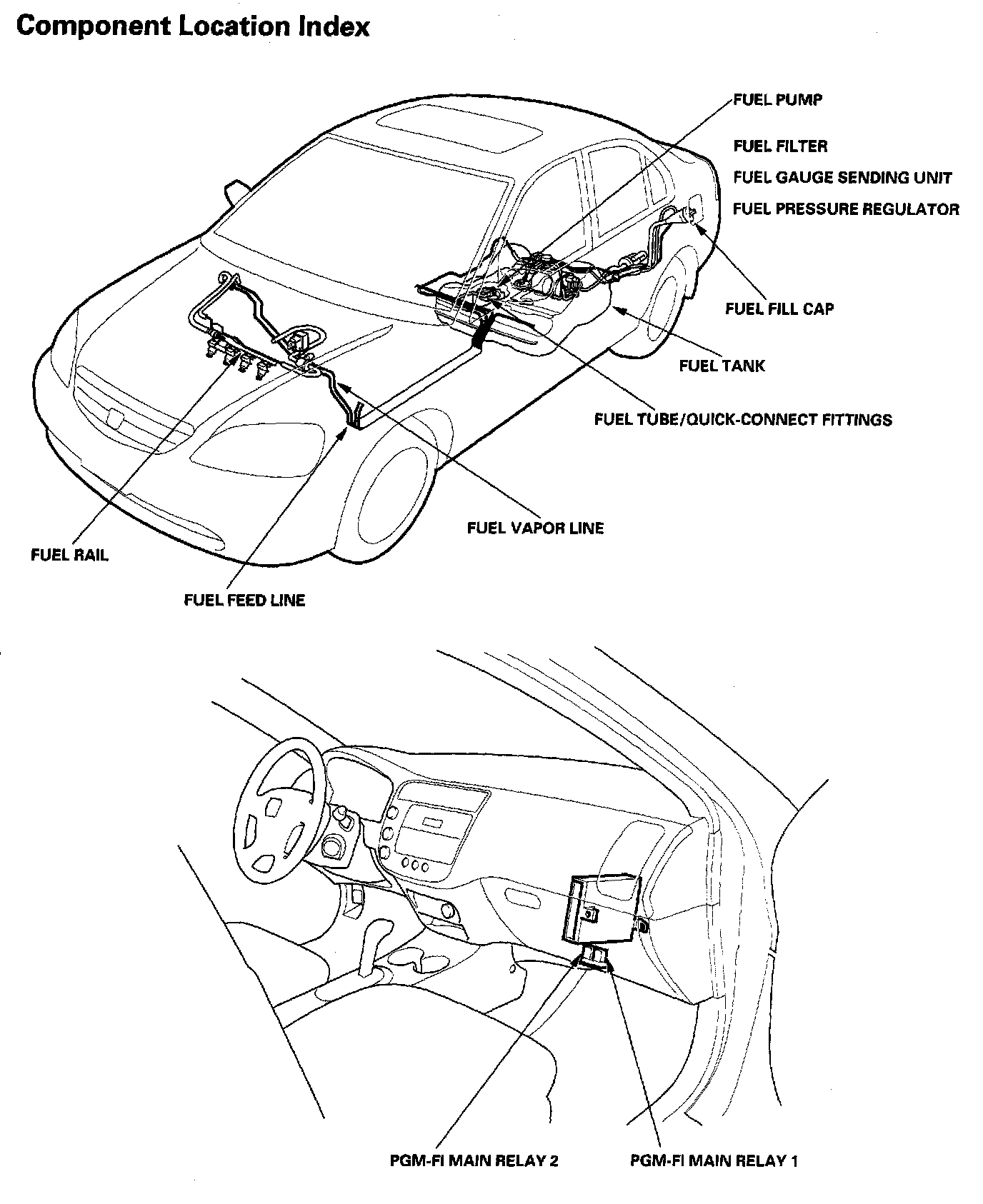

Fuel Supply System - Component Location Index:

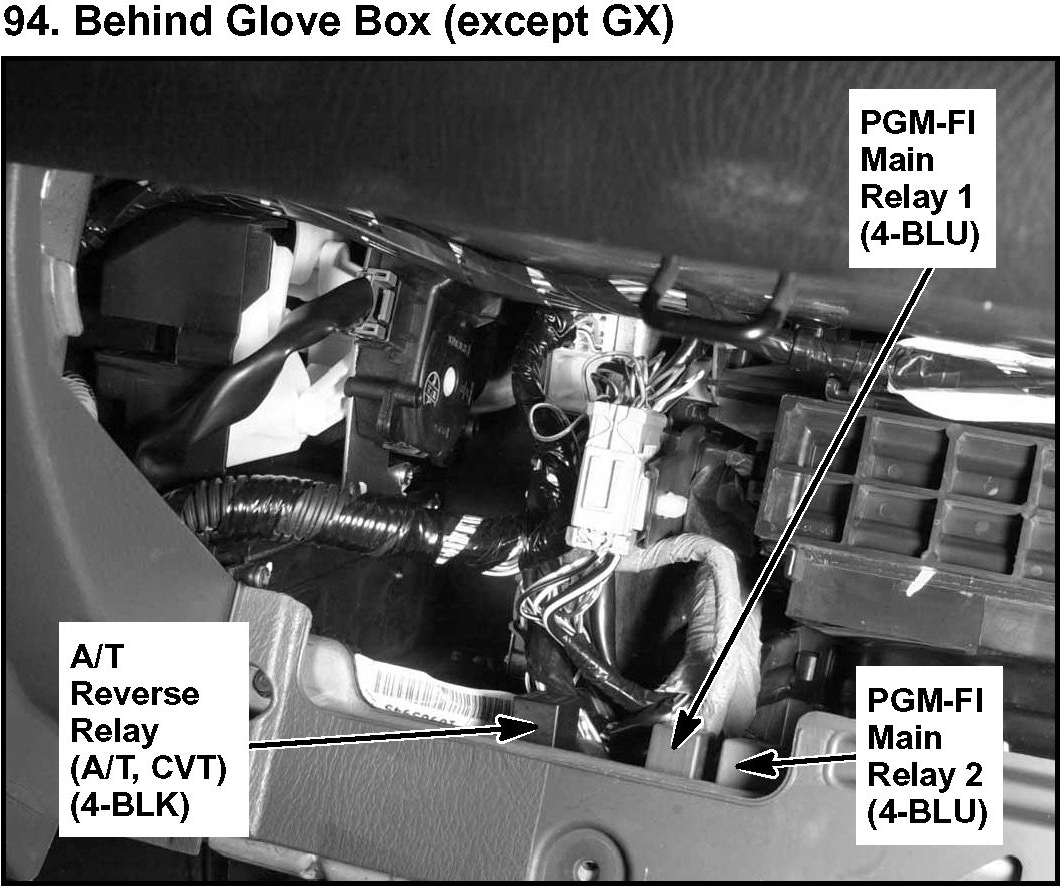

94. Behind Glove Box (except GX):
