A/T, Engine Controls - MIL ON/No Movement In Drive/P0730

04-036

October 22, 2011

Applies To:
See VEHICLES AFFECTED

Vehicle Does Not Move in Drive; MIL Comes On or D Indicator Blinks With A/T DTC P0730

(Supersedes 04-036, dated July 26, 2011 to update the information marked by the black bars and asterisks)

REVISION SUMMARY

*Under WARRANTY CLAIM INFORMATION, a flat rate was changed.*

SYMPTOM

The vehicle does not move when you select Drive. The MIL comes on ('01-03 models) or the D indicator blinks ('04 models) with "A" DTC P0730 (shift control system) set.

PROBABLE CAUSE

Excessive wear in the 2nd clutch.





VEHICLES AFFECTED

CORRECTIVE ACTION

*Replace the A/T. Update the PGM software ('01-03 models only).*

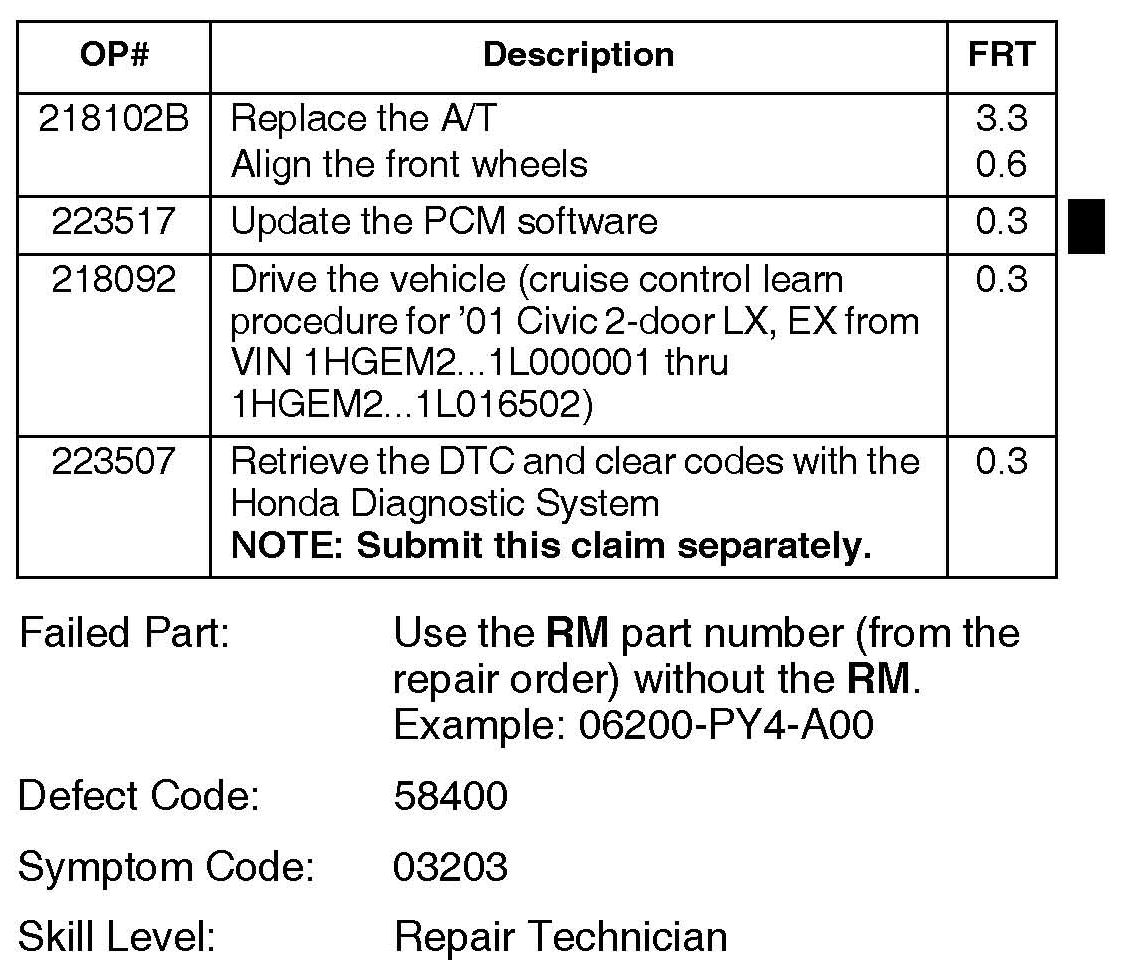

WARRANTY CLAIM INFORMATION





In warranty:
The normal warranty applies.

REPAIR PROCEDURE

1. Replace the A/T. See S/B 98-061, Automatic Transmission In-Warranty Exchange Program, for detailed requirements of the A/T ordering, removal, and installation process.

2. '01-03 models only: Make sure you have the iN CD (July '04 or later) loaded into your iN master terminal. If not, load the CD using the instructions that come with it. Also, make sure the vehicle's battery is fully charged. [Low voltage or turning the ignition switch to LOCK (0) can permanently damage the PCM.]

3. '01-03 models only: Use the Honda Interface Module (HIM) to update the PCM software. Refer to S/B 01-023, Using the Honda Interface Module to Update Control Units/Modules.

4. Use the Honda Diagnostic System (HDS) with version 1.012.023 or later software to clear the DTC.

5. Do the idle learn procedure:

^ Make sure all electrical items (A/C, audio unit, defogger, lights, etc.) are off.

^ Start the engine, and let it reach normal operating temperature (cooling fans cycle twice).

^ Let the engine idle with the throttle closed for 10 minutes.

6. 2001 Civic 2-door EX, LX models from VIN
1HGEM2... 1L000001 thru 1HGEM2... 1L016502:
Do the cruise control learn procedure:

^ Drive the vehicle, and set the cruise control above 40 miles per hour.

^ Keep driving the vehicle for 5 to 10 minutes.

NOTE:
You can use a smog/chassis dynamometer to do this step instead of driving the vehicle. Do not do this step with the vehicle on a lift.
