Audio Unit

Audio Unit Removal/Installation

With Rear Entertainment System

SRS components are located in this area. Review the SRS component locations, and the precautions and procedures before performing repairs or service.

NOTE:
- Put on gloves to protect your hands.
- Take care not to scratch the dashboard and related parts.

1. Make sure you have the anti-theft code for the radio, then write down the frequencies for the radio's preset buttons.
2. Remove the center panel.




3. Remove the bolts (A).
4. Disconnect the audio unit connectors (B), the optional accessory connector (if equipped), and the antenna lead (C) from the audio unit.

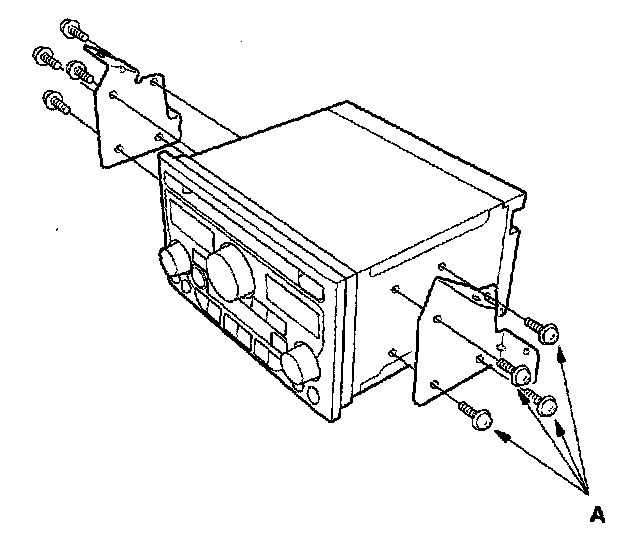

5. Remove the screws (A) from the audio unit.
6. Install in the reverse order of removal, and note these items.

- Make sure the audio unit connectors and the antenna lead are connected properly.
- Enter the anti-theft code for the radio, then enter the customer's radio station presets.
