Circuit 11 - Illumination (Positive)
Circuit 11 - Illumination (Positive)

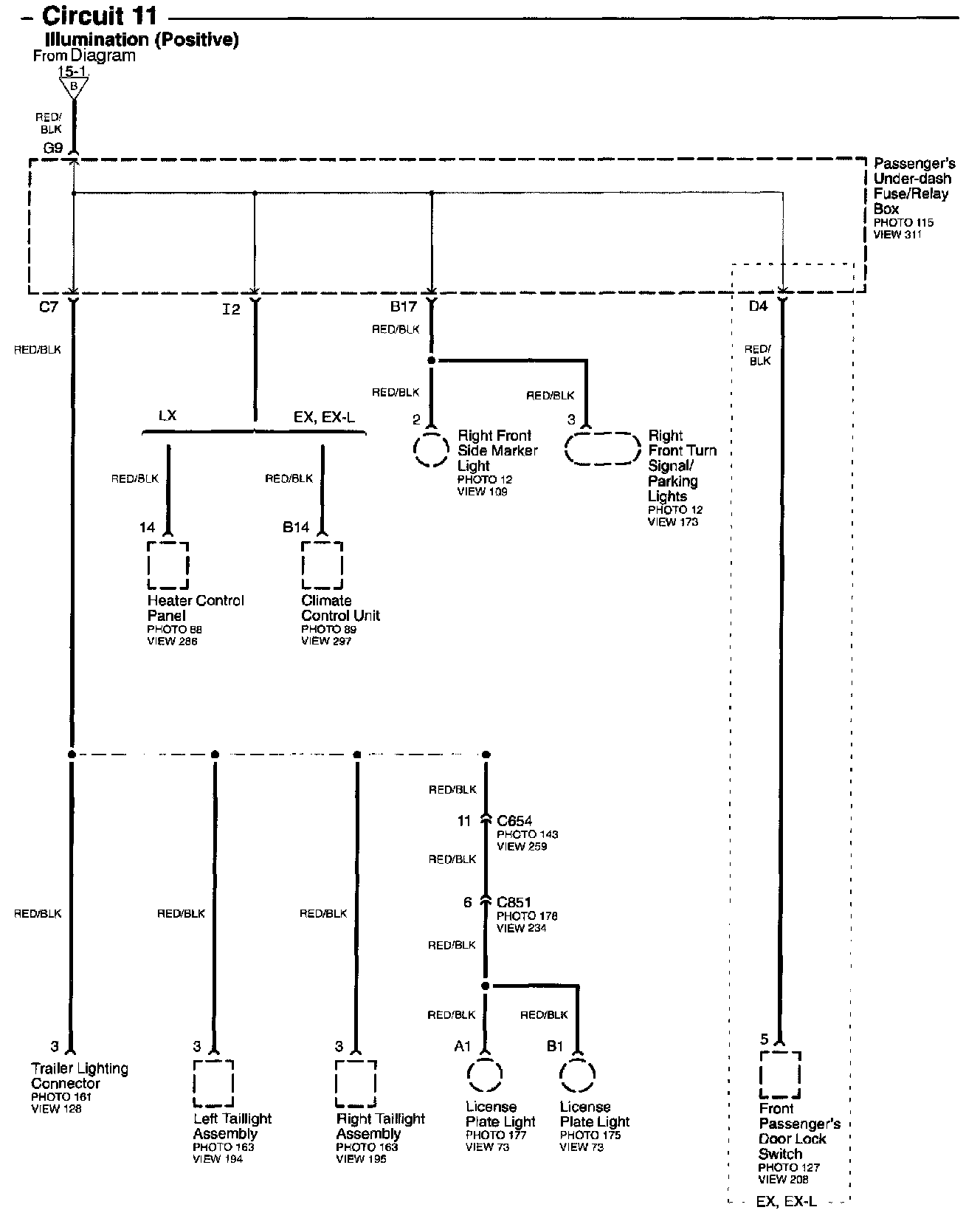

Circuit 11 - Illumination (Positive) Part 1:
Circuit 11 - Illumination (Positive) Part 2:
Circuit 11 - Illumination (Positive) Part 3:
