Vacuum and Vapor Hose Diagrams

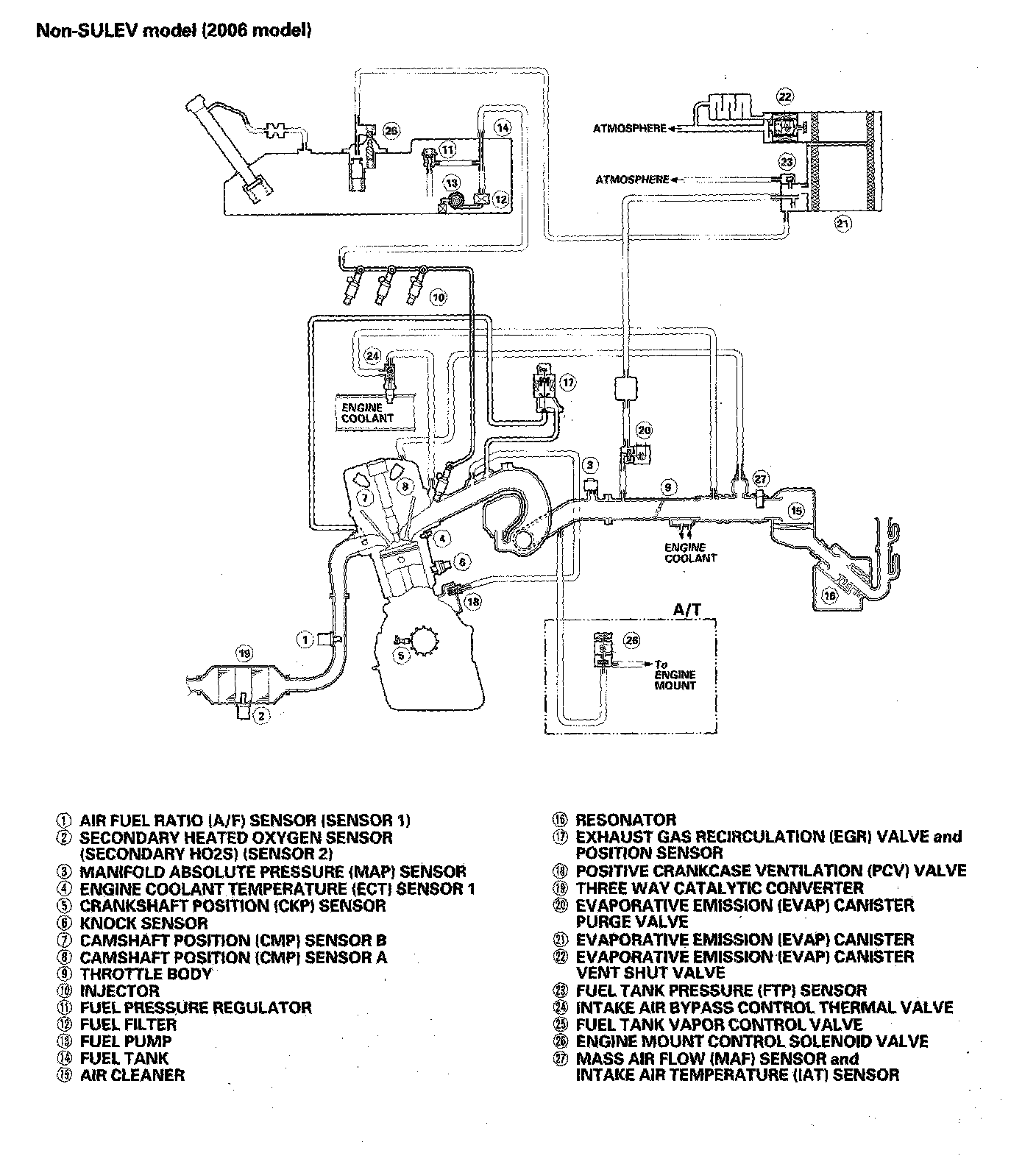

Vacuum Distribution (Non-SULEV Model (2006 Model)):

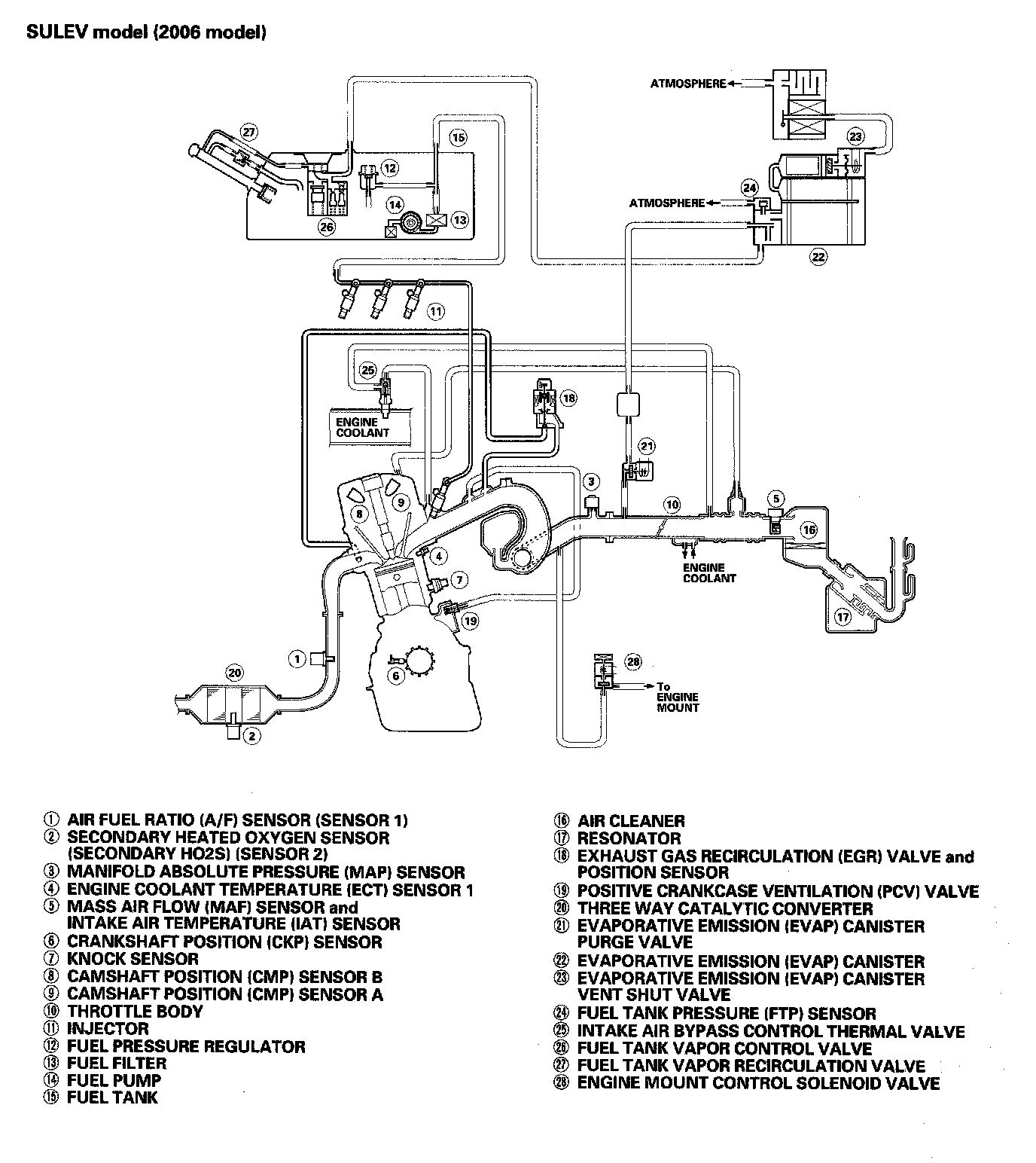

Vacuum Distribution (SULEV Model (2006 Model)):
