Navigation Module: Service and Repair
Navigation Unit Removal/InstallationNOTE: If the navigation unit is replaced or disconnected, a map match must be done.
1.
Remove the center lower console.
2.

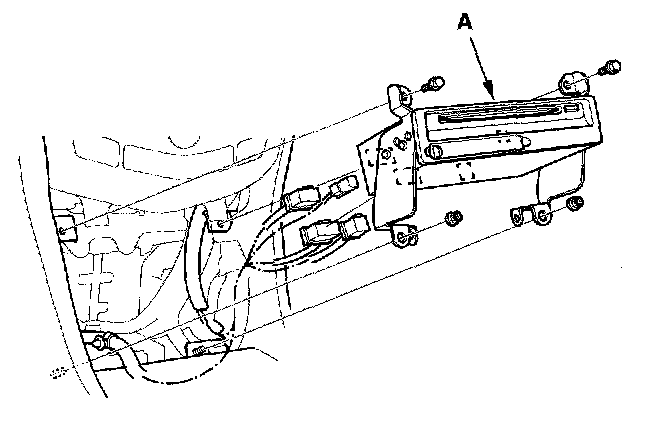

Remove the navigation unit with the bracket (A).
3.

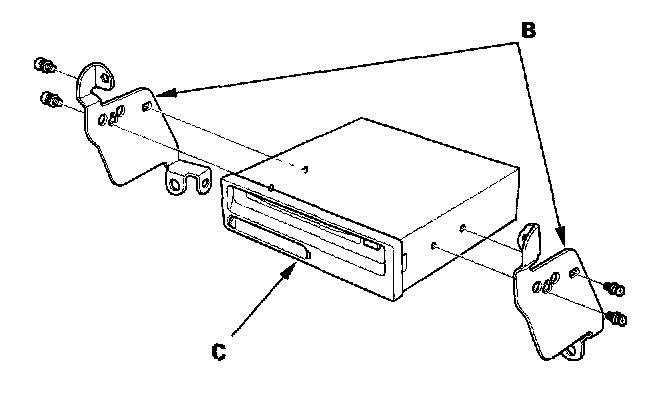

Remove the brackets (B) from the navigation unit (C).
4.
Install the unit in the reverse order of removal.
