Programming and Relearning
VSA Sensor Neutral Position Memorization NOTE: Do not press the brake pedal during this procedure.
1.
Park the vehicle on a flat and level surface.
2.

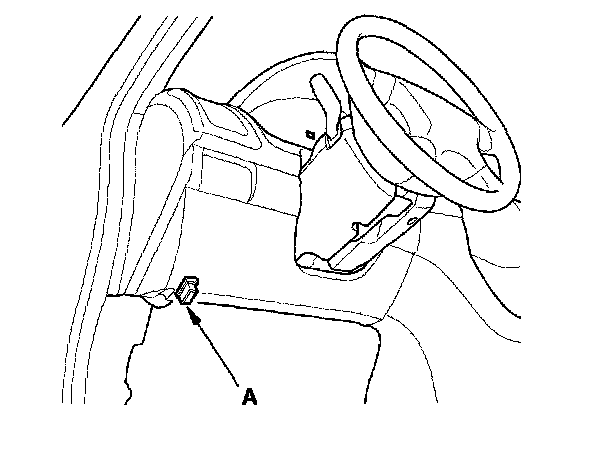

With the ignition switch OFF, connect the HDS to the 16P data link connector (DLC) (A) under the driver's side of the dashboard.
