Multiple Junction Connector

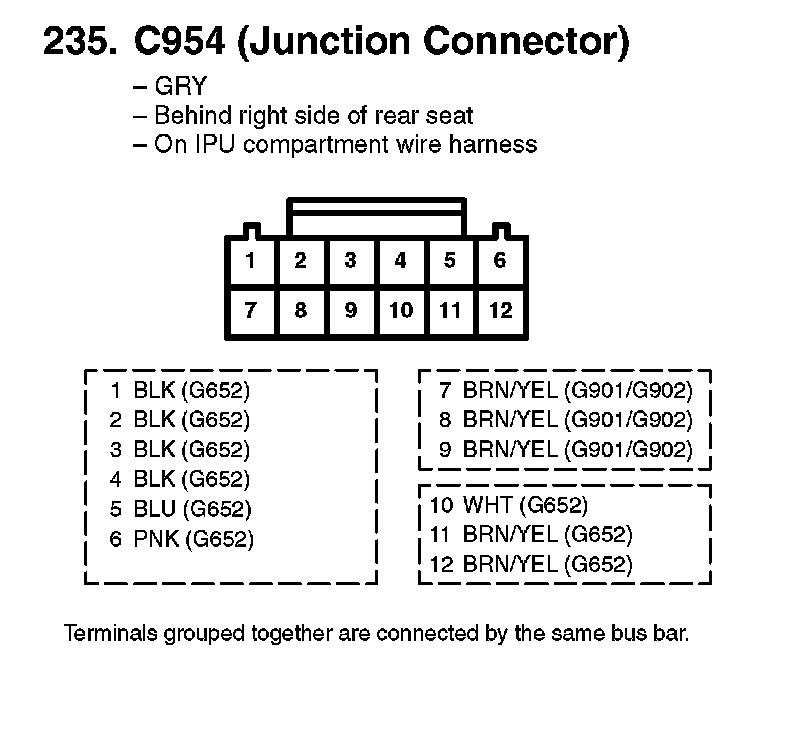

235. C954 (Junction Connector):

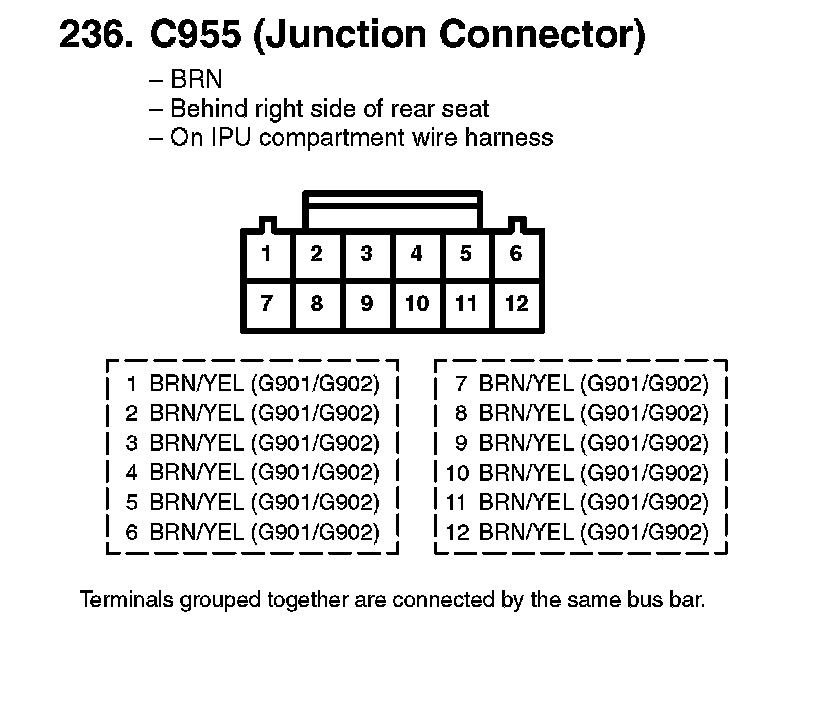

236. C955 (Junction Connector):

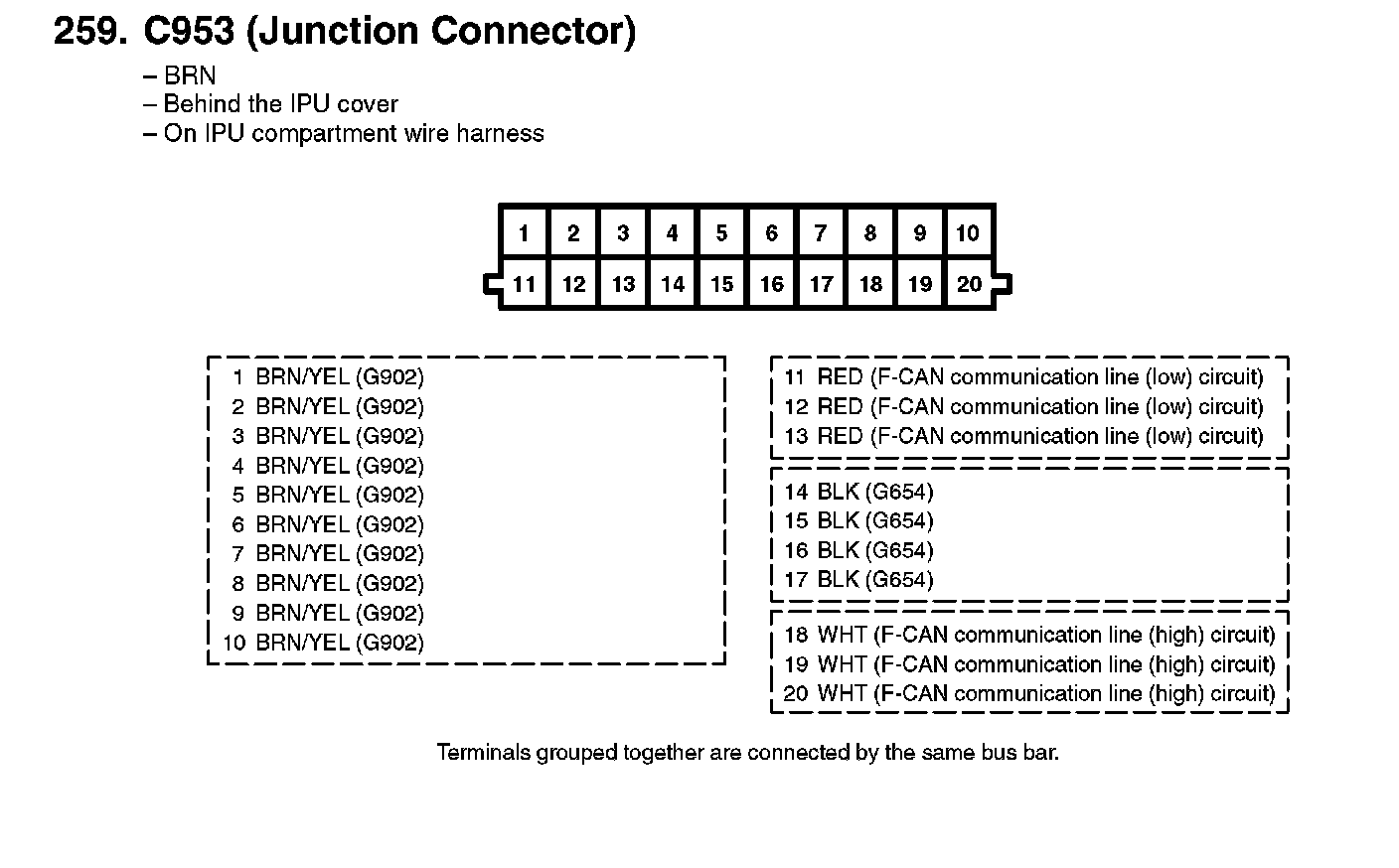

259. C953 (Junction Connector):

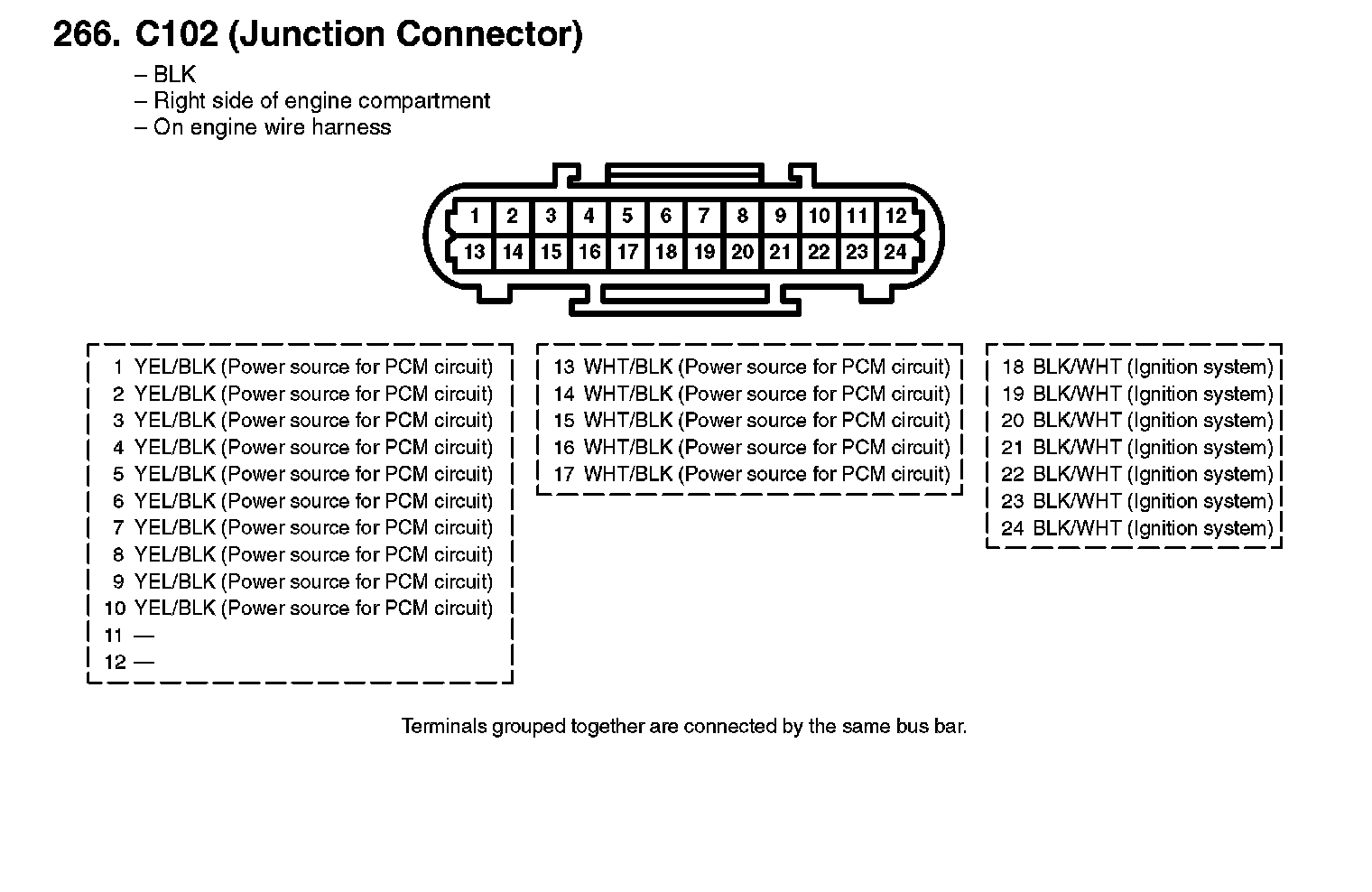

266. C102 (Junction Connector):



267. C103 (Junction Connector):

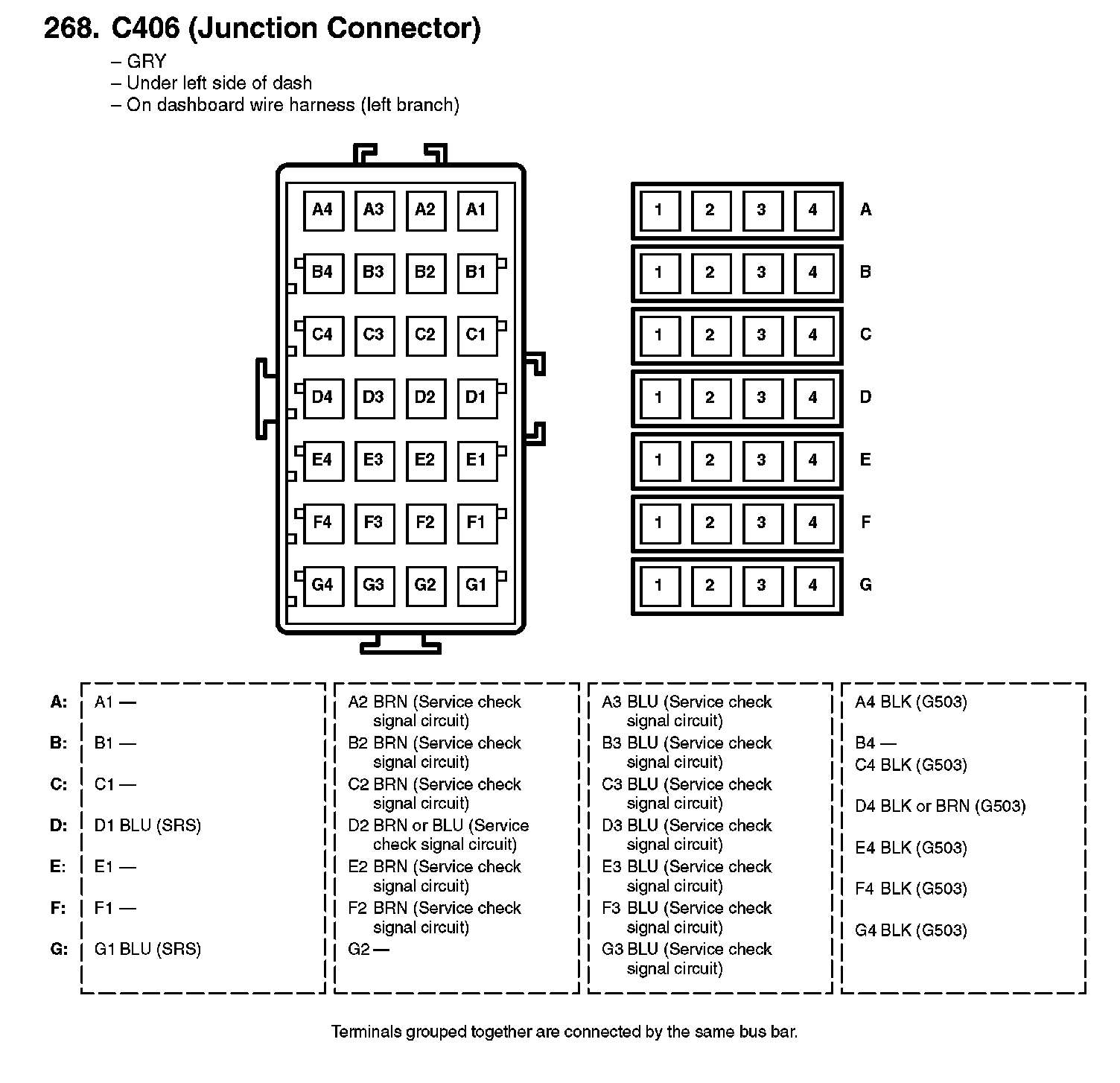

268. C406 (Junction Connector):

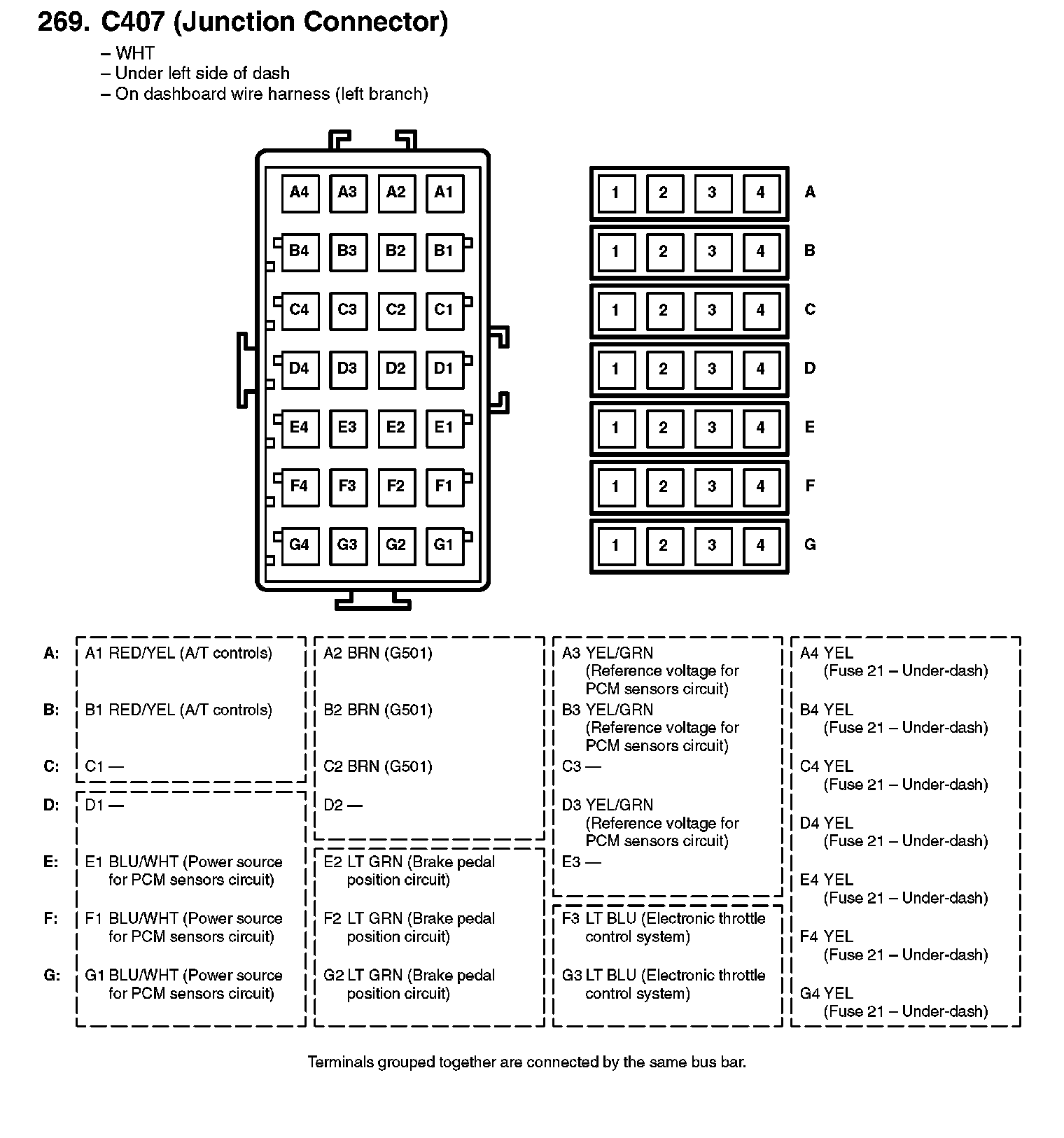

269. C407 (Junction Connector):

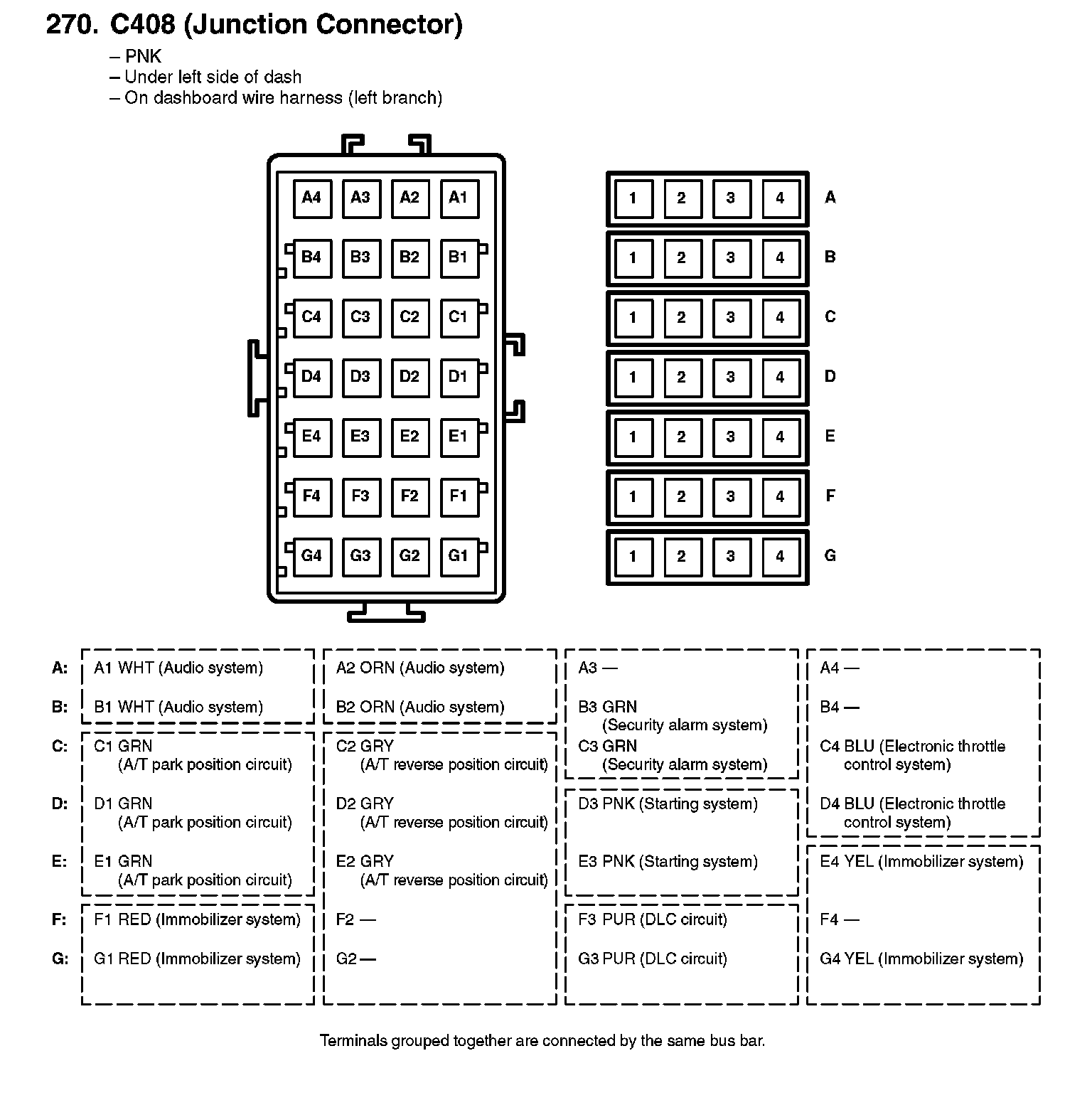

270. C408 (Junction Connector):

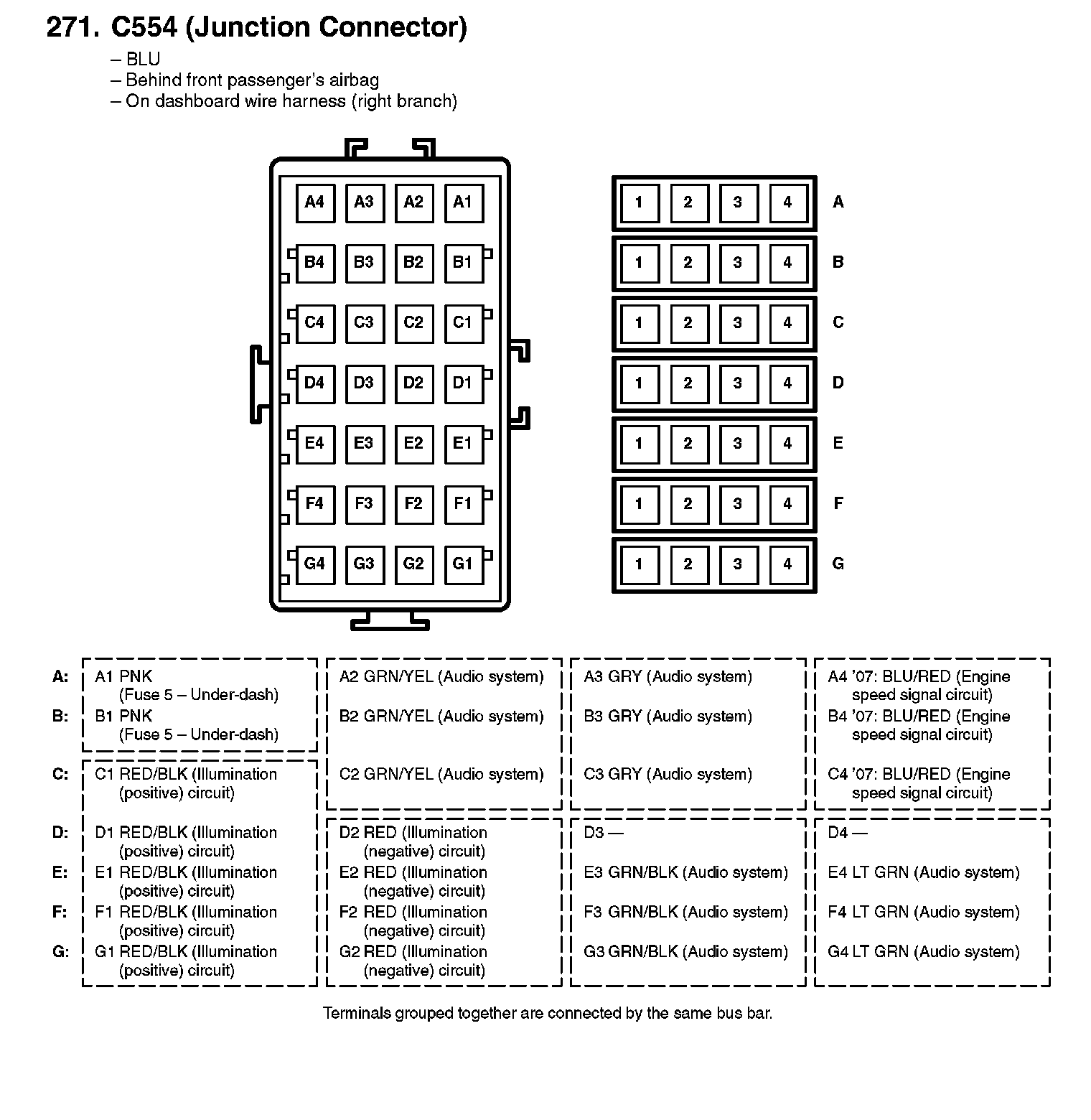

271. C554 (Junction Connector):

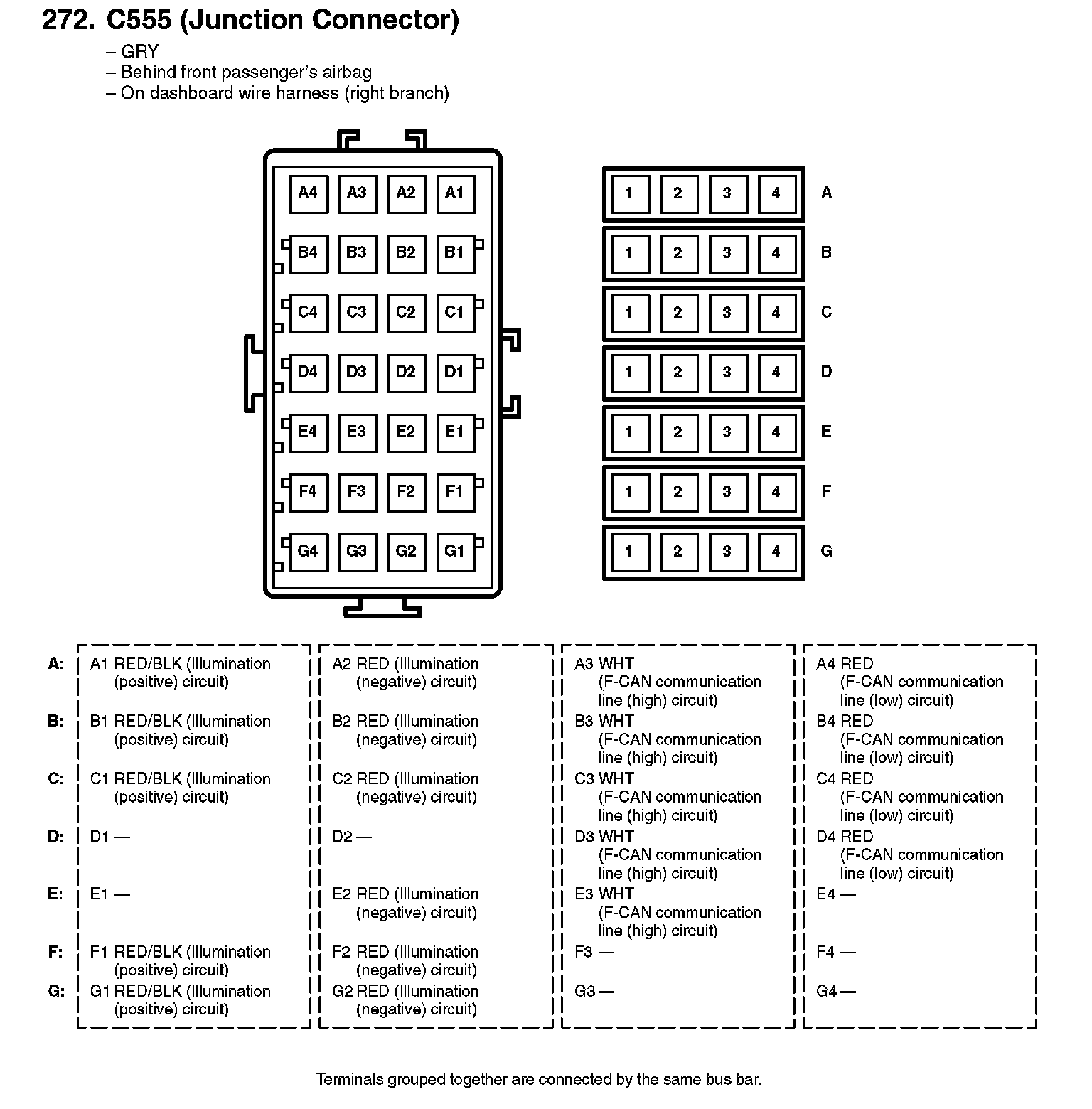

272. C555 (Junction Connector):

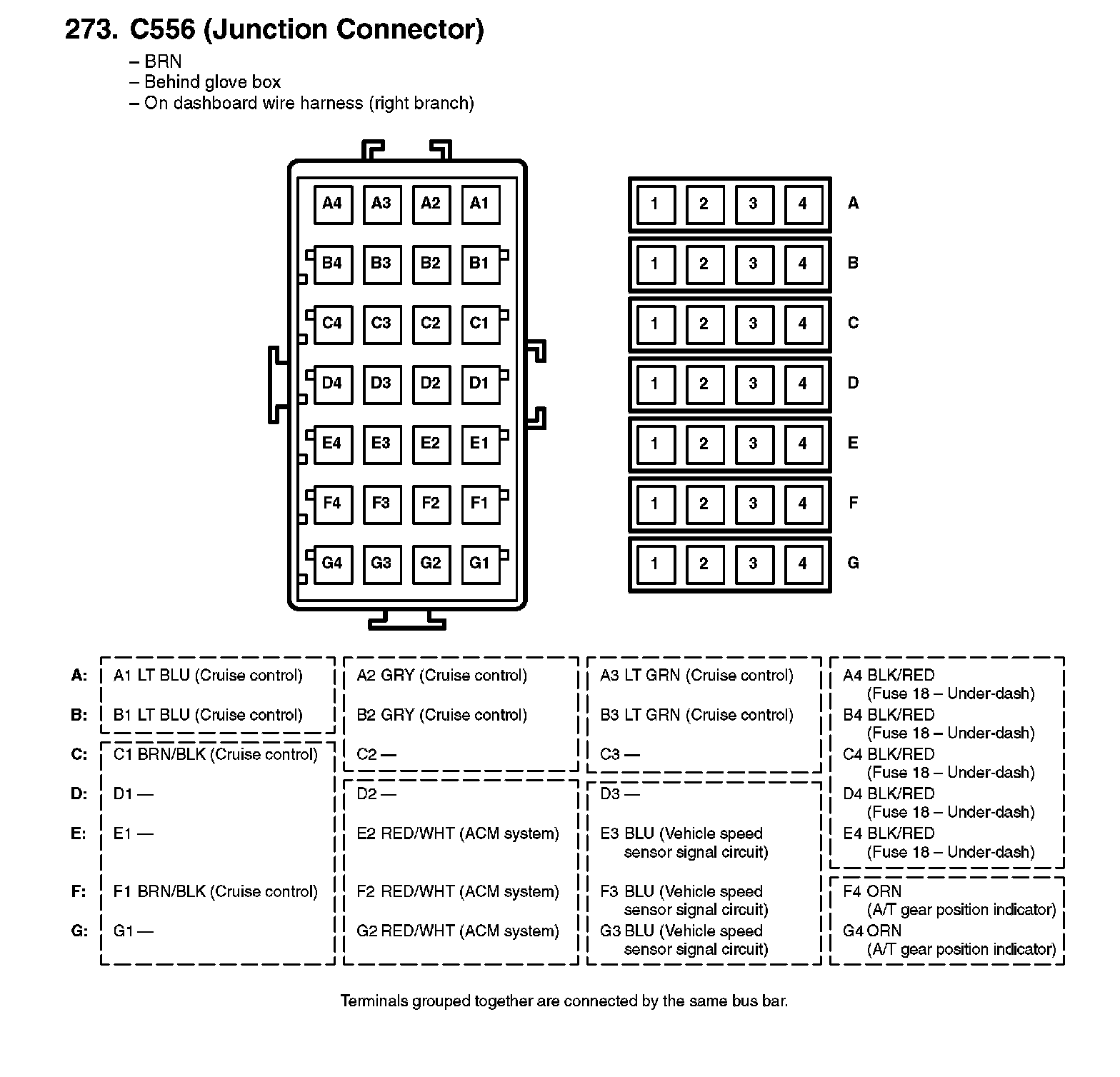

273. C556 (Junction Connector):



274. C557 (Junction Connector):

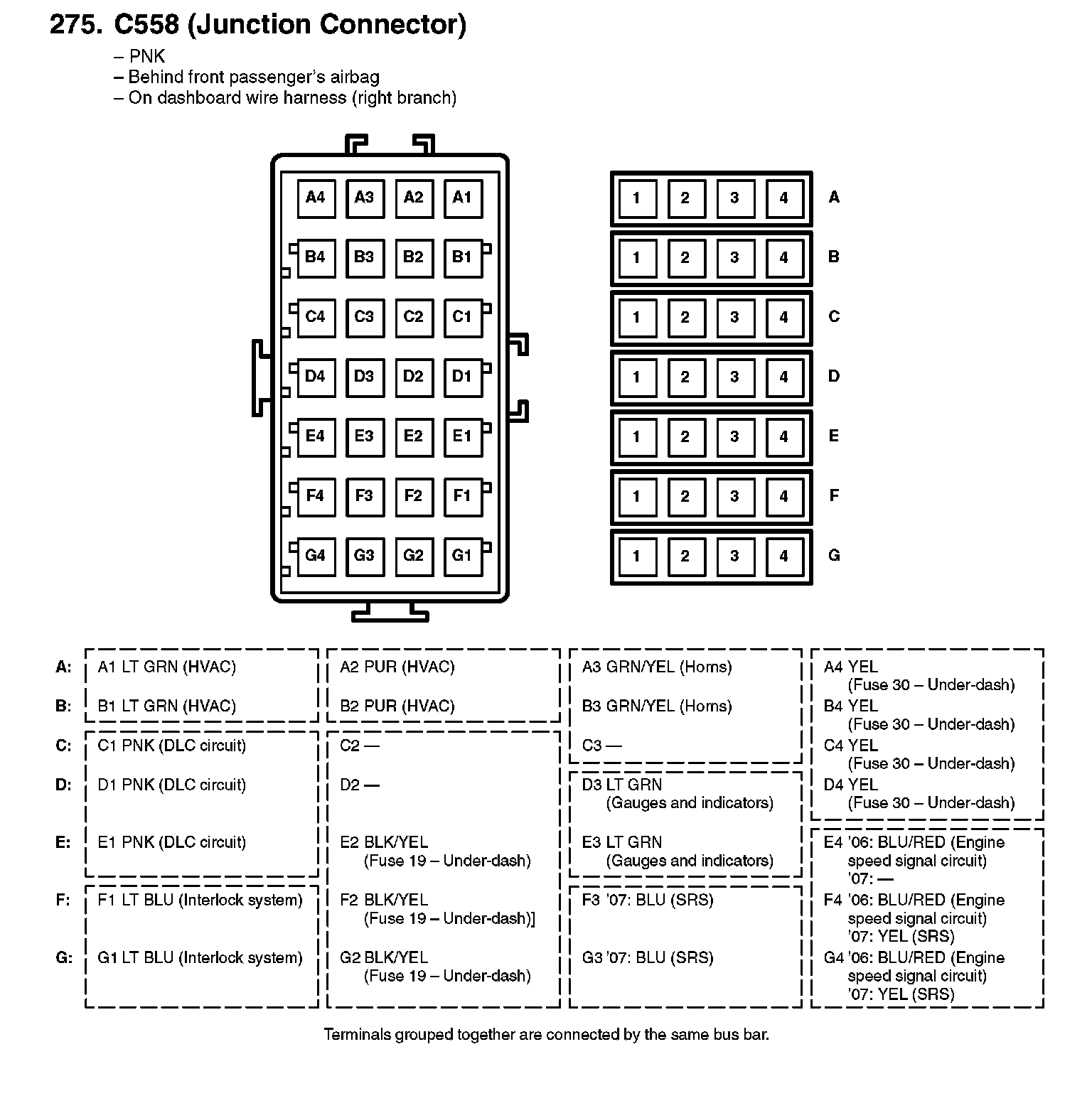

275. C558 (Junction Connector):
