Heater Core Temperature Sensor / Switch: Service and Repair

Heater Core Temperature Sensor Replacement

1. Remove the passenger's dashboard under cover.
2. Remove the passenger's center lower cover.

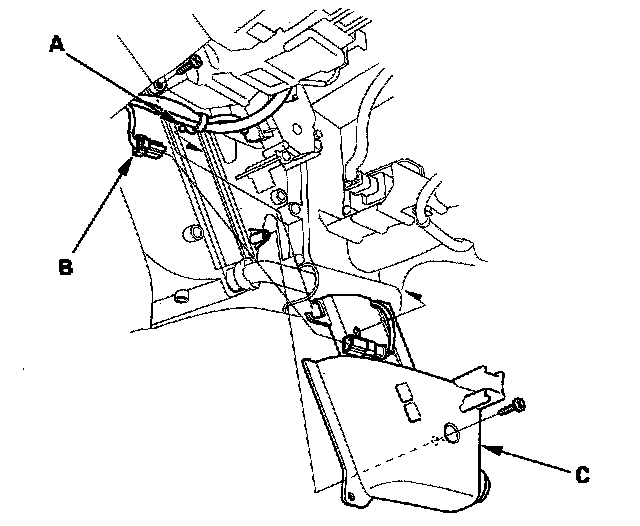

3. Remove the harness clip (A), then disconnect the 2P connector from the heater core temperature sensor (B). Remove the self-tapping screws and the heater core cover (C).

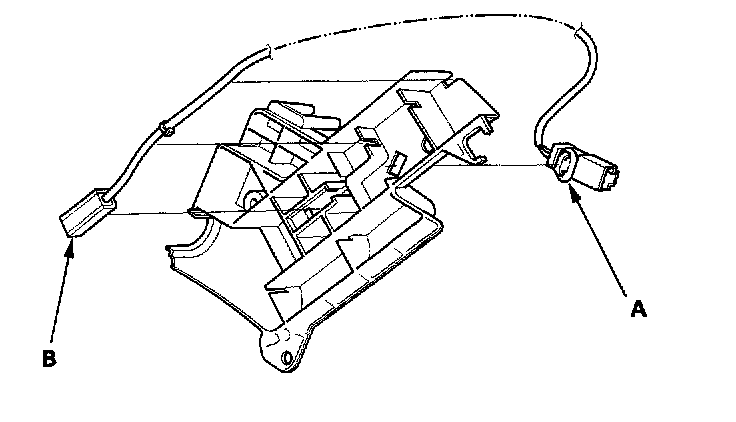

4. Remove the connector clip (A) and the heater core sensor (B).
5. Install the sensor in the reverse order of removal.
