Component Locations
Component Locations

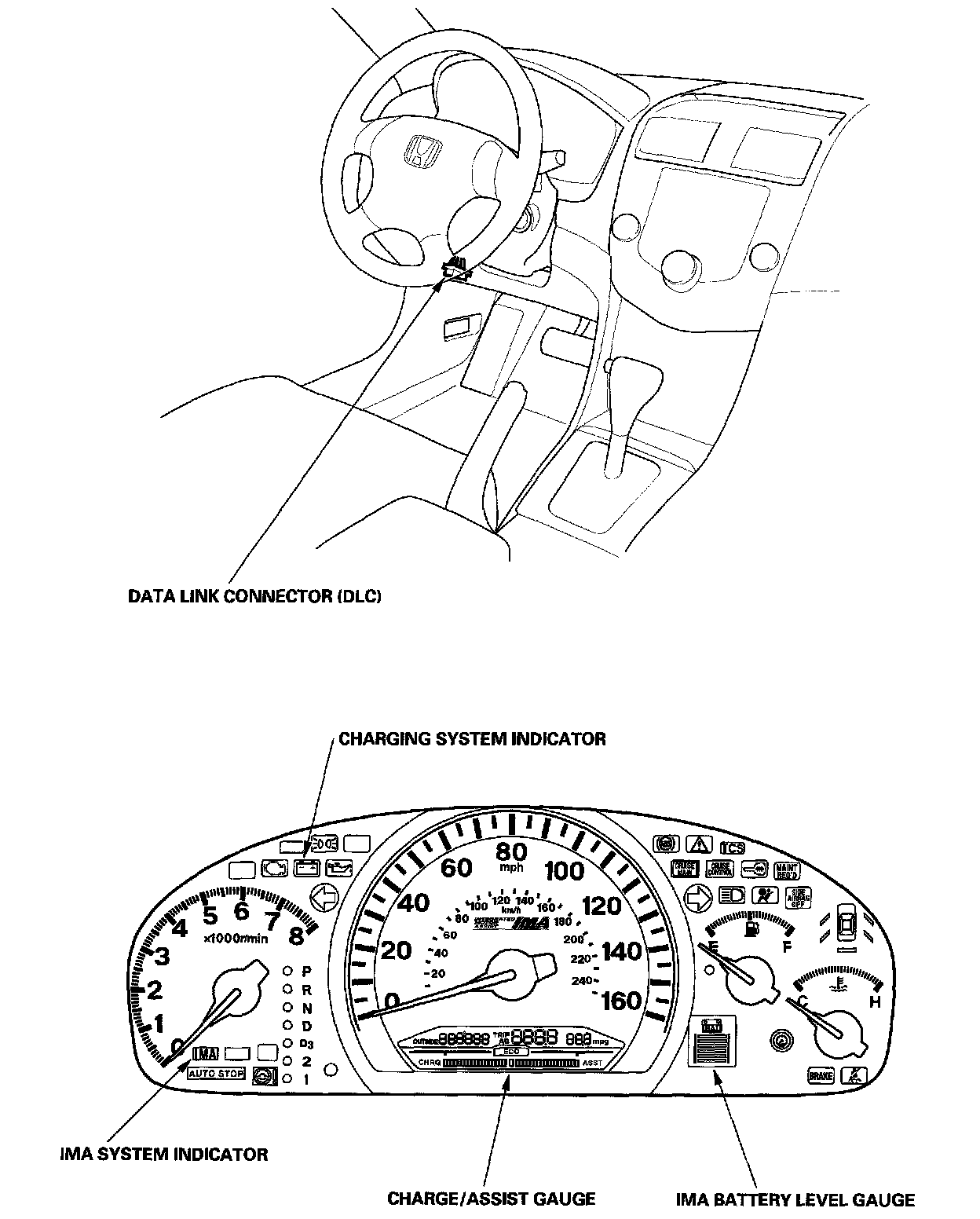

IMA System Component Location Index:

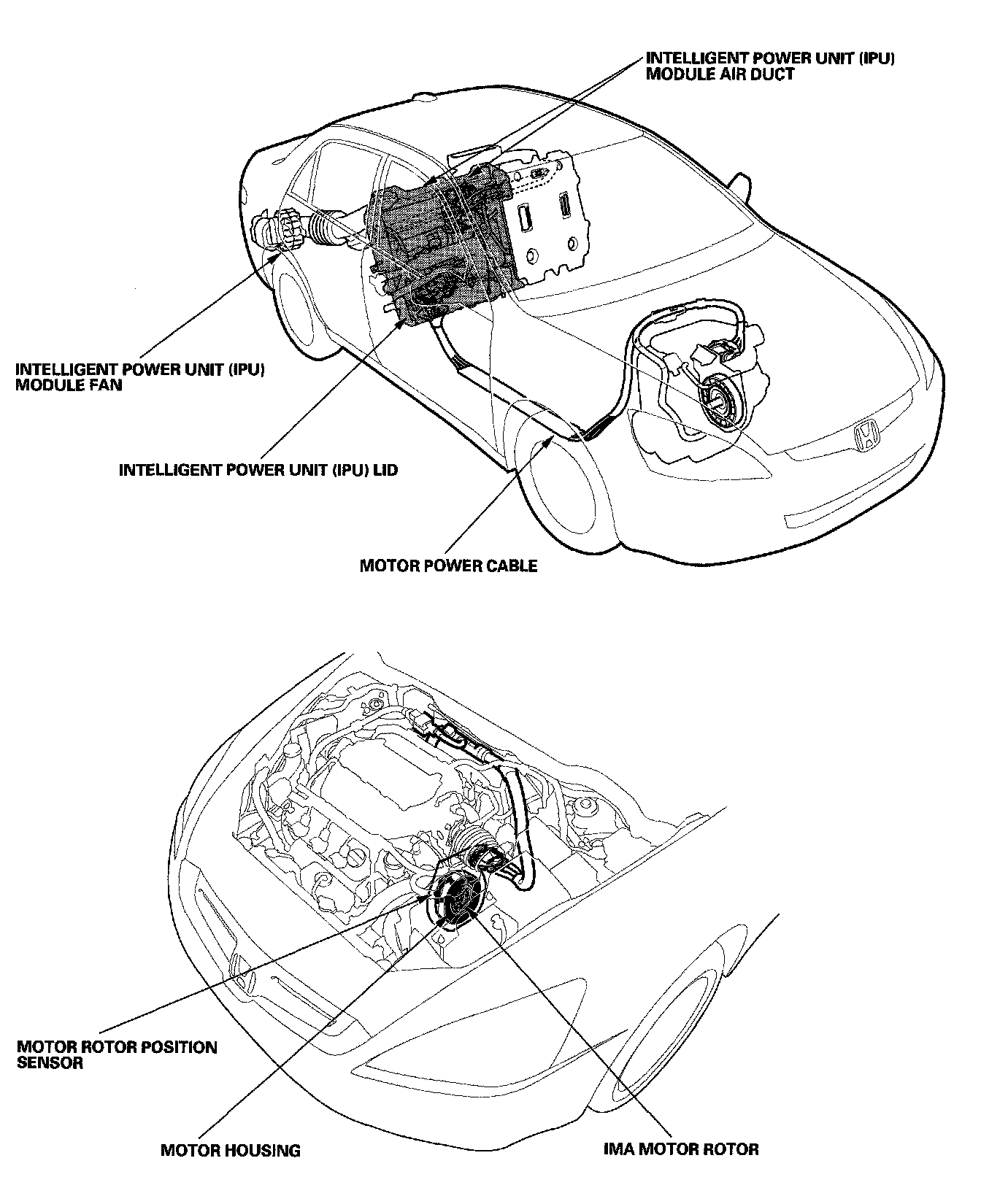

IMA System Component Location Index:

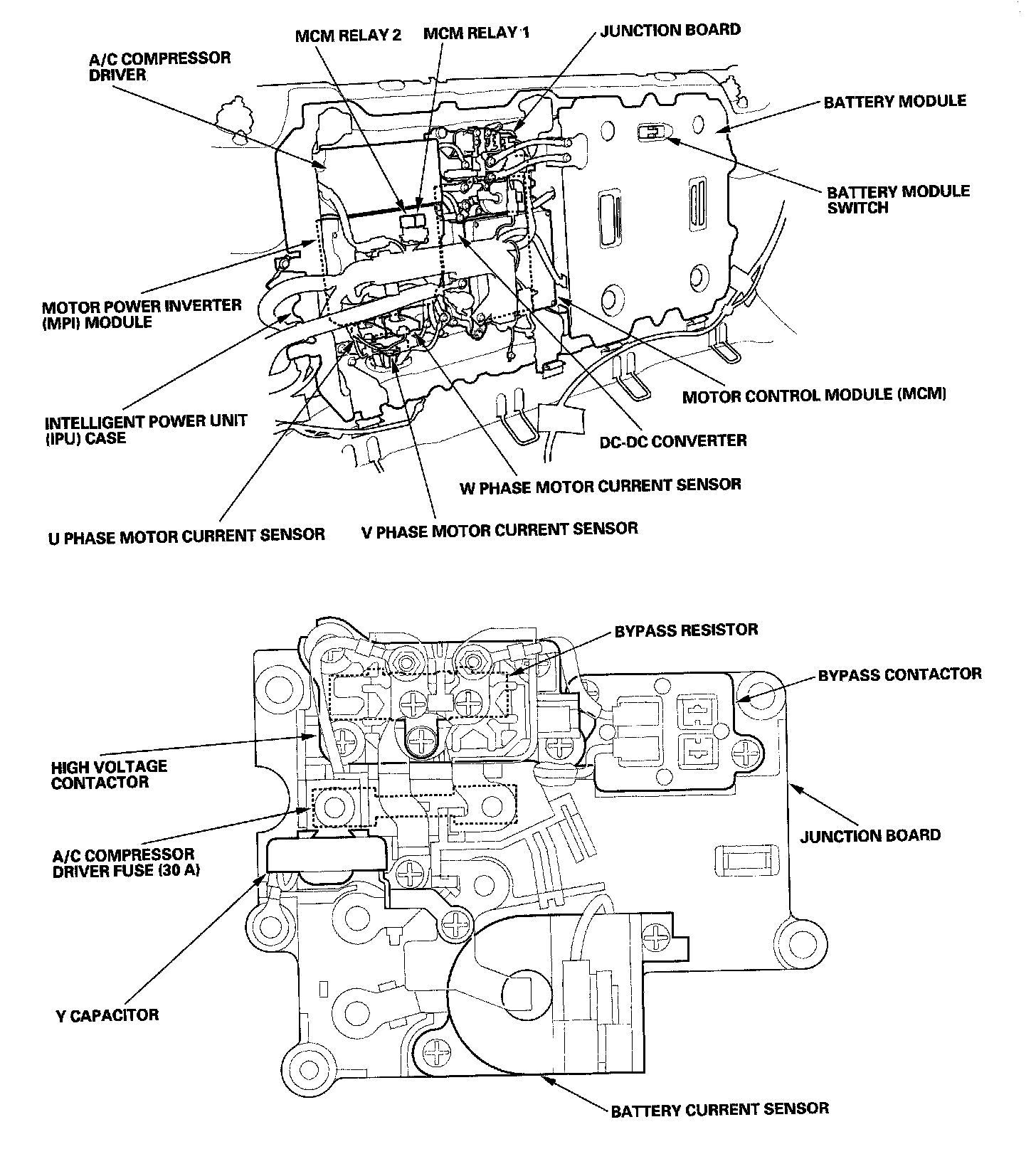

IMA System Component Location Index:

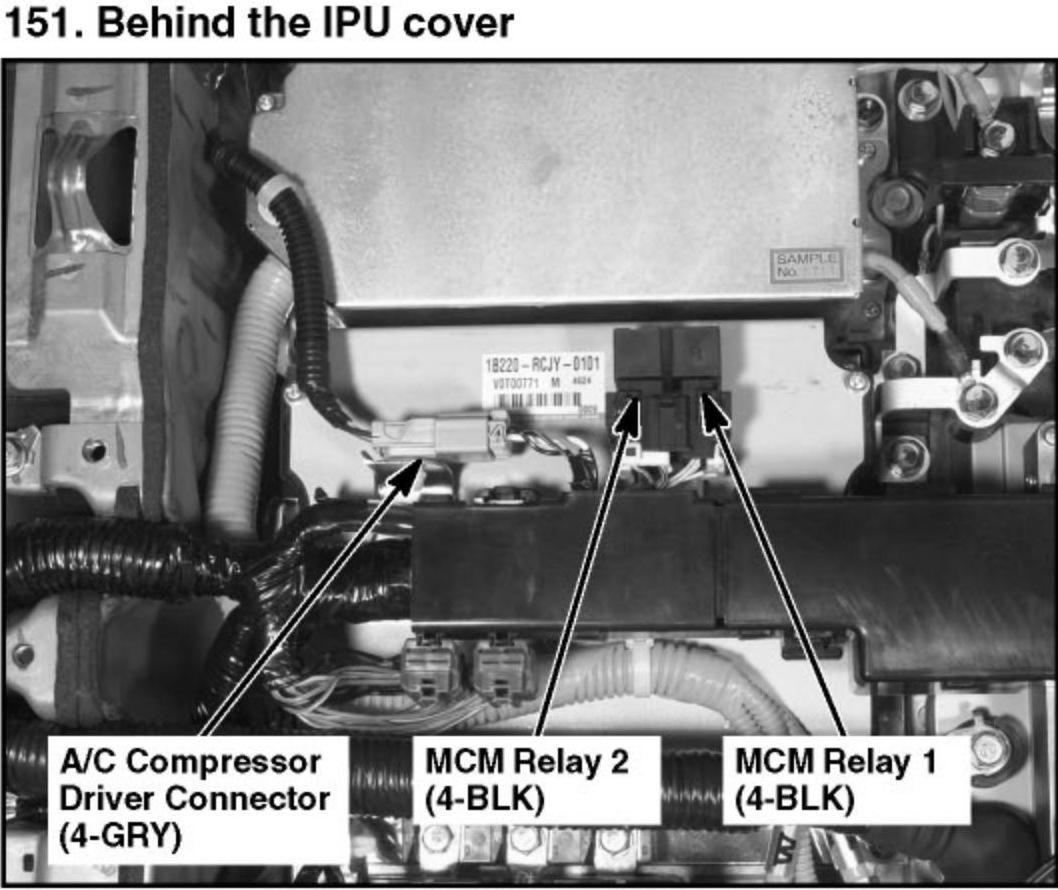

151. Behind the IPU Cover:

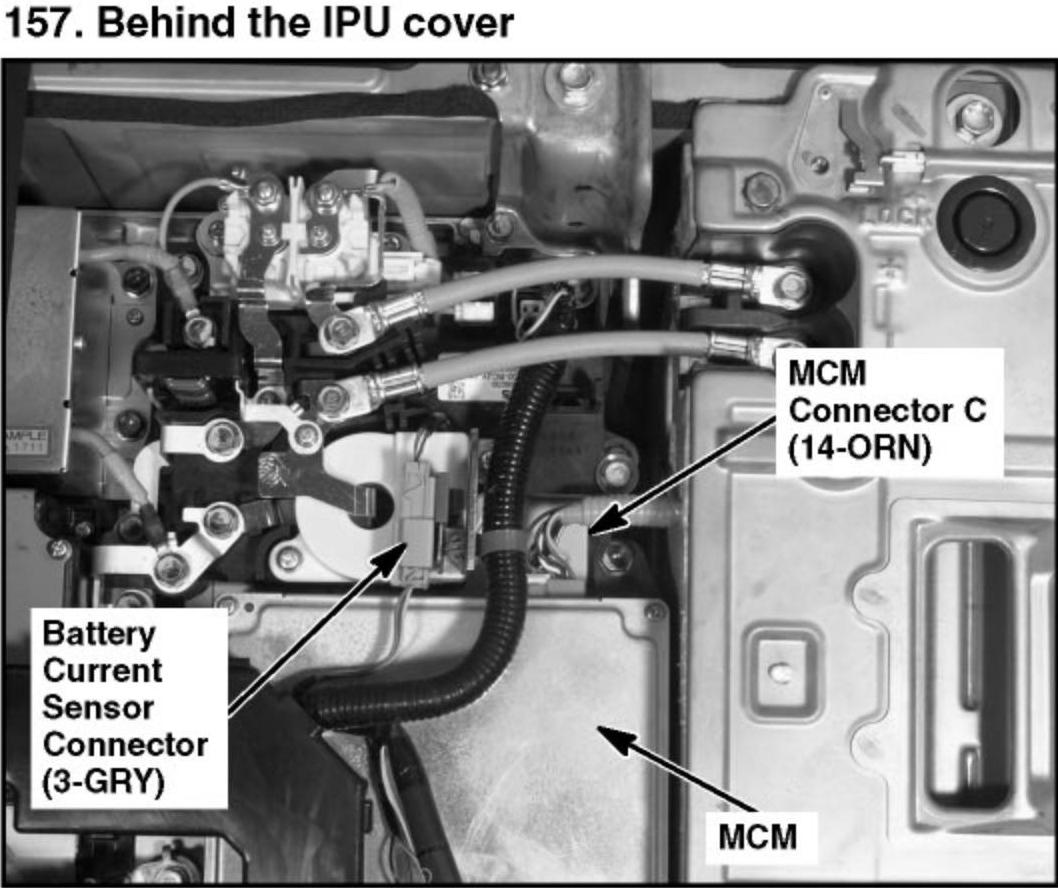

157. Behind the IPU Cover:
