Active Control Engine Mount (ACM) System

Active Control Engine Mount (ACM) System
The active control engine mount (ACM) system decreases engine-to-chassis vibration at low rpm and when the engine is in cylinder pause mode. The system includes conventional, liquid-filled engine mounts that absorb vibration. In addition, the front and rear engine mount contains an actuator that cancels engine vibration by producing a counter, or reverse vibration. The transmission has standard rubber mounts.

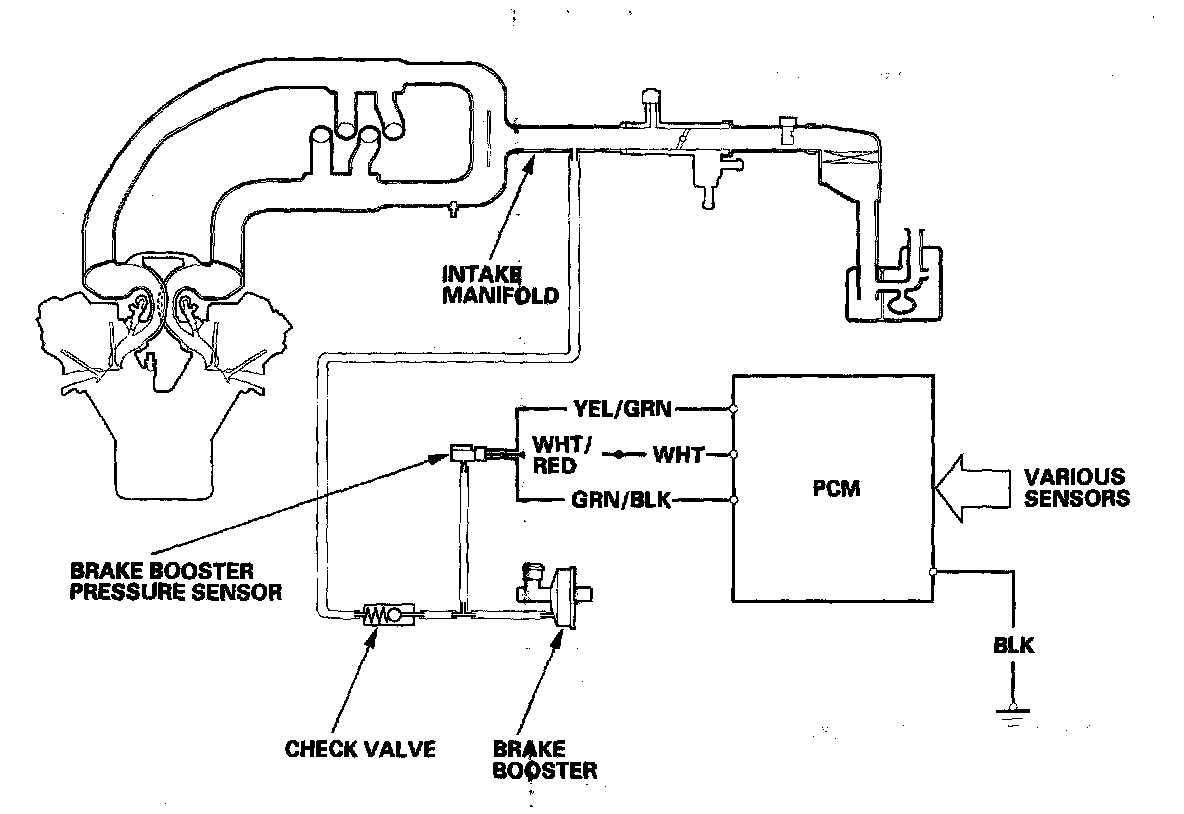

Brake Booster Pressure Sensor System Diagram
The brake booster pressure sensor converts brake booster vacuum into an electrical input to the PCM. This input is used to control idle stop operations.
