Fuel Level Sensor: Service and Repair
Fuel Pump/Fuel Gauge Sending Unit ReplacementSpecial Tools Required
Fuel sender wrench 07AAA-SOXA100
2006 model
1. Remove the fuel tank.

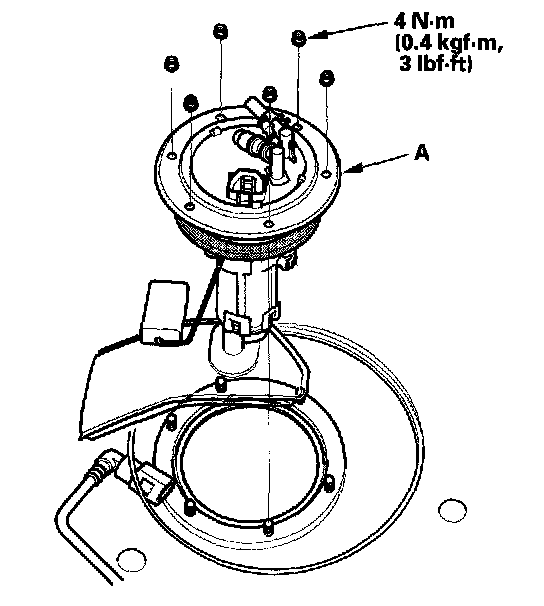

2. Remove the fuel tank unit (A).

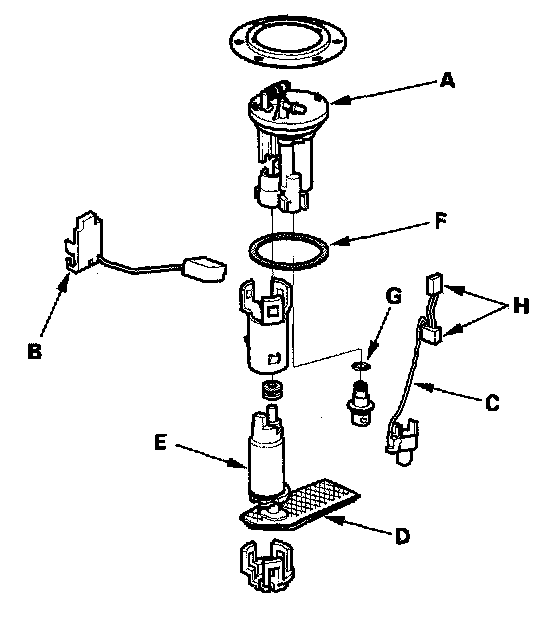

3. Remove the strainer case (A), the fuel gauge sending unit (B), and the wire harness (C).
4. Install the part in the revers order of removal with a new base gasket (F) and new O-ring (G), then check these items:
- Make sure the connection is secure and the suction filter (D) is firmly connected to the fuel pump(E).
- When connecting the wire harness, make sure the connection is secure and the connectors (H) are firmly locked into place.
- When installing the fuel gauge sending unit, make sure the connection is secure and the connector is firmly locked into place. Be careful not to bend or twist it excessively.
