Engine Mount Control Unit: Service and Repair

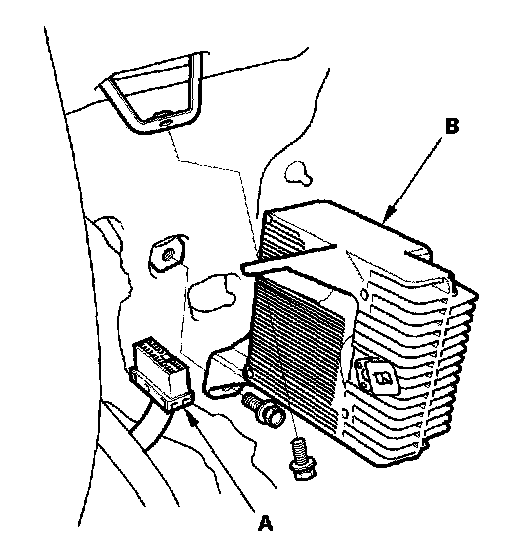

Engine Mount Control Unit Replacement 1.
Disconnect the
engine mount control unit 20P connector (A).
2.
Remove the
engine mount control unit (B).
3.
Install the
engine mount control unit in the reverse order of removal.
