Connecting Rod, Engine

Connecting Rod Bearing Cap Torque
For complete and accurate Connecting Rod Torque data, please refer to Crankshaft and Piston Installation. Service and Repair

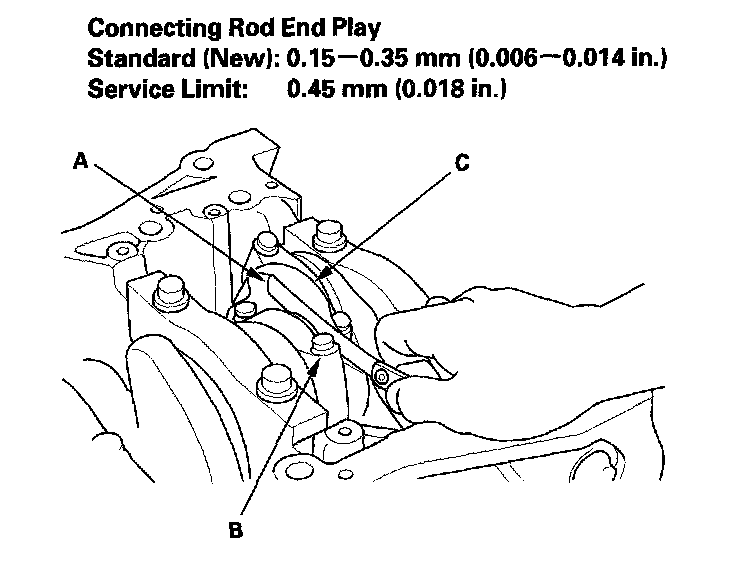

Connecting Rod End Play






Connecting Rod Standards and Limits
Pin-to-rod clearance
Standard or New 0.005 - 0.014 mm (0.0002 - 0.0006 inch)
Service Limit 0.019 mm (0.0007 inch)
Small-end bore diameter 21.970 - 21.976 mm (0.8650 - 0.8652 inch)
Large-end bore diameter 56.0 mm (2.20 inch)
End play installed on crankshaft
Standard or New 0.15 - 0.35 mm (0.006 - 0.014 inch)
Service Limit 0.45 mm (0.018 inch)
