Crankshaft, Engine

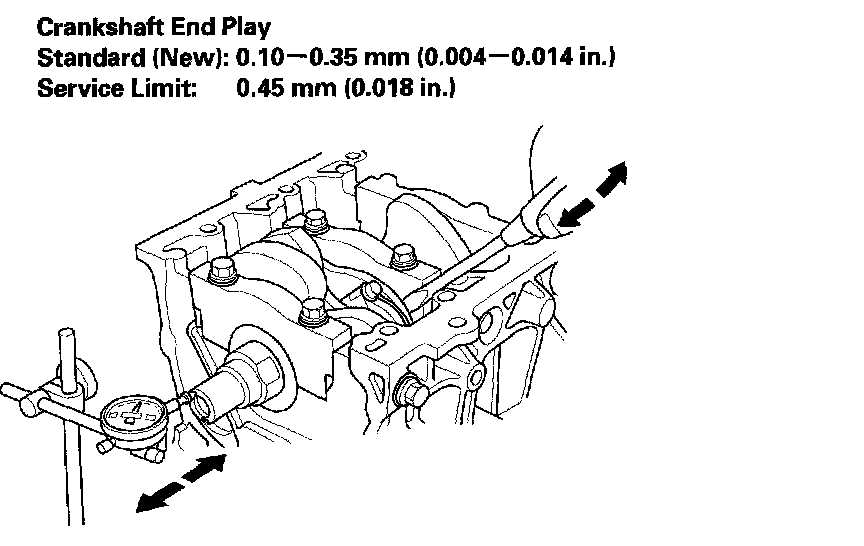

Crankshaft End Play





Out-of-Round and Taper

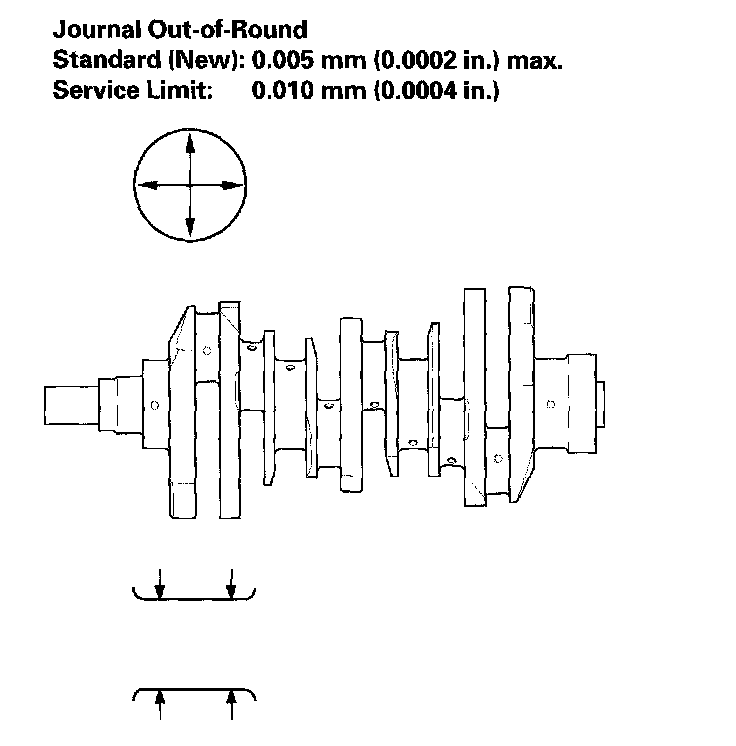

Journal Out-of-Round






Journal Taper
Standard (New) 0.005 mm (0.0002 inch) max
Service Limit 0.010 mm (0.0004 inch)

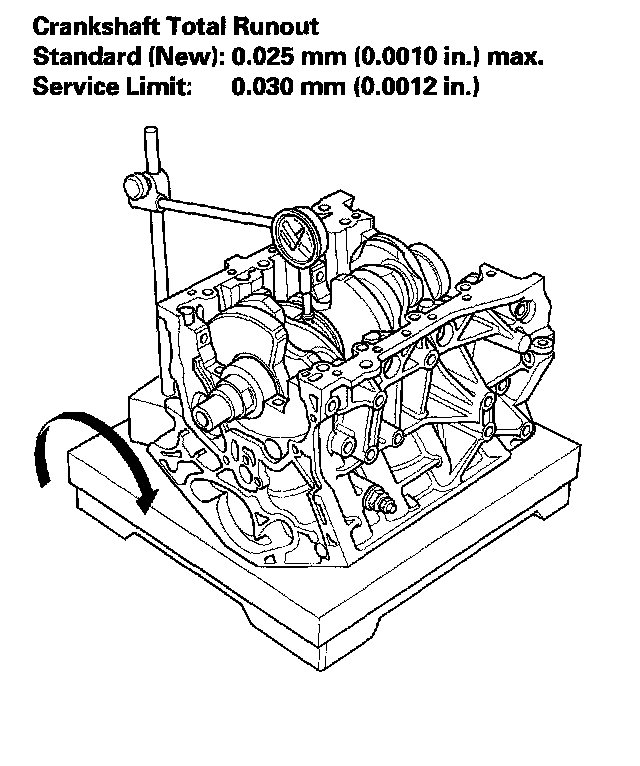

Crankshaft Total Runout
