Piston Ring, Engine
Piston Ring End-Gap Top Ring:
Standard (New)
0.20 - 0.35 mm (0.008 - 0.014 inch)
Service Limit
0.60 mm (0.024 inch)
Second Ring:
Standard (New)
0.40 - 0.55 mm (0.016 - 0.022 inch)
Service Limit
0.70 mm (0.028 inch)
Oil Ring:
Standard (New)
0.20 - 0.70 mm (0.008 - 0.028 inch)
Service Limit
0.80 mm (0.031 inch)

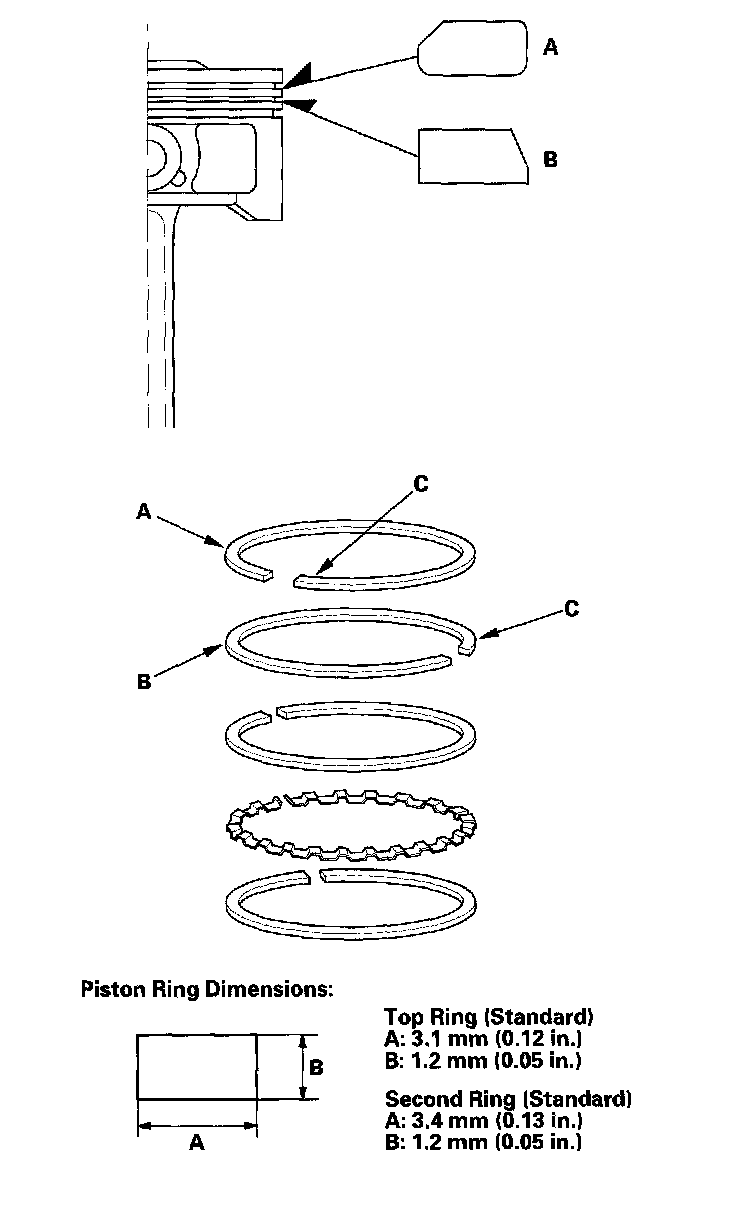

Piston Ring Dimensions Piston Ring Clearance
