Piston, Engine

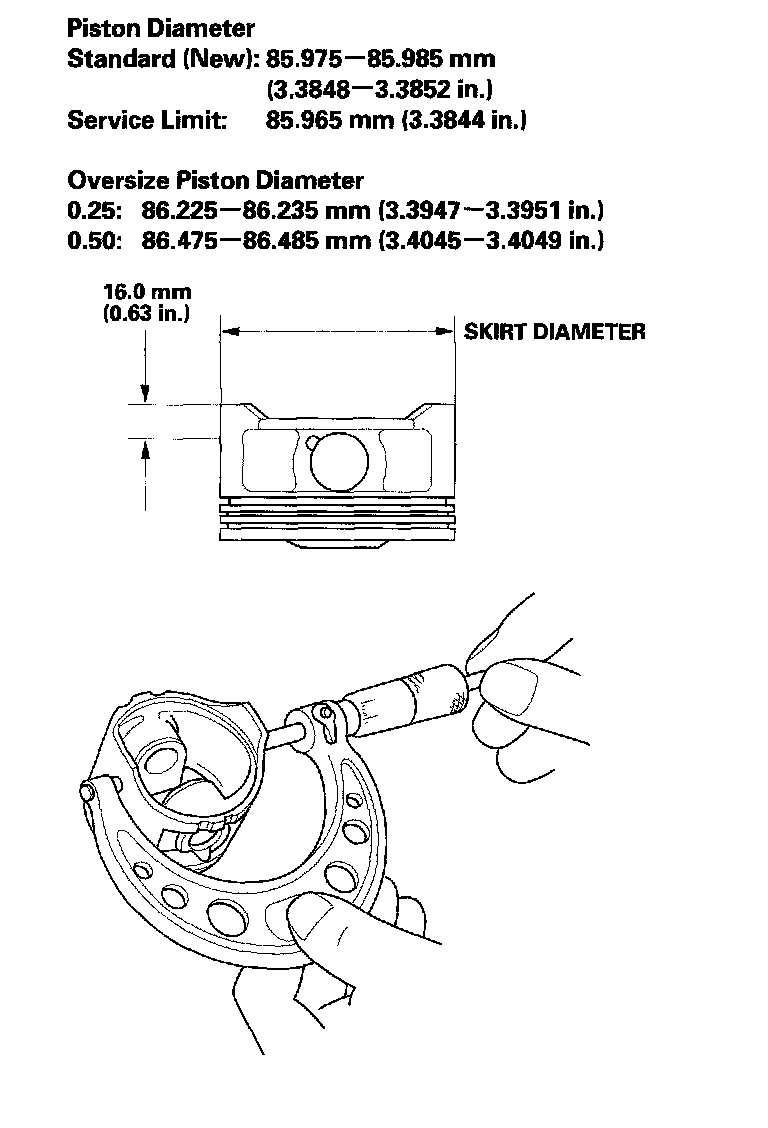

Piston Diameter

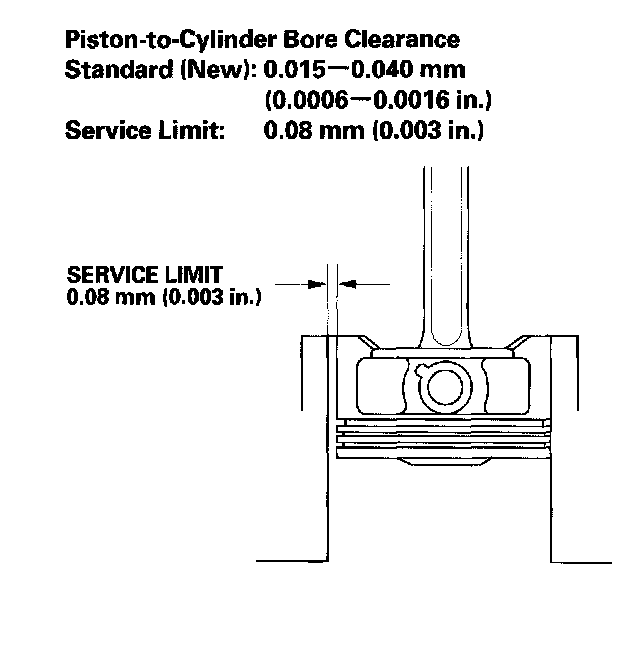

Piston-to-Cylinder Bore Clearance

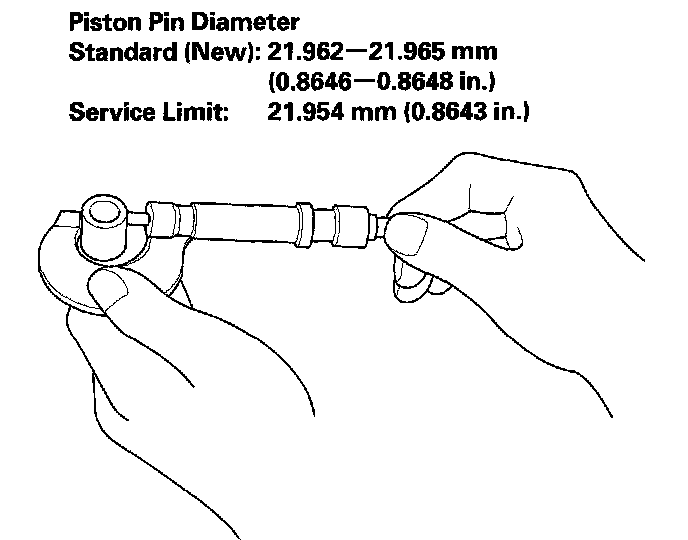

Piston Pin Diameter

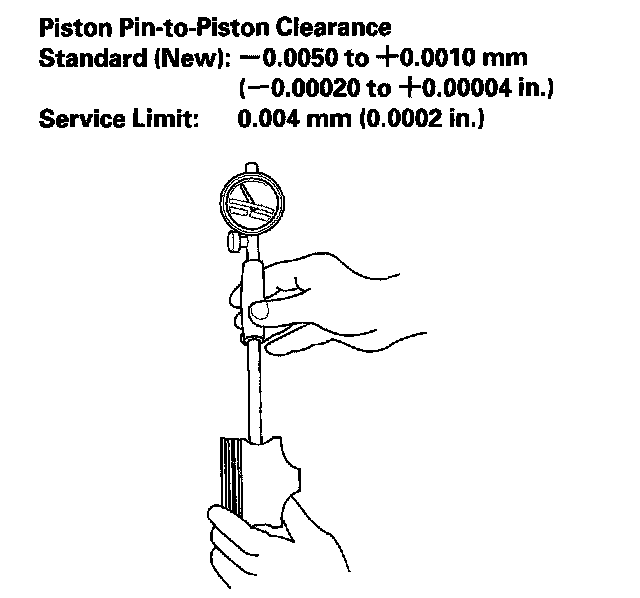

Piston Pin-to-Piston Clearance

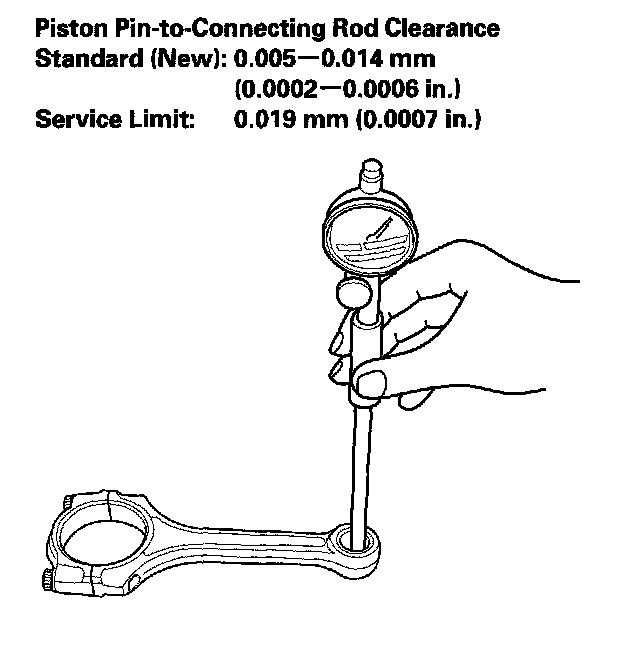

Piston Pin-to-Connecting Rod Clearance
