Tightening Torque

Cylinder Head Torque and Sequence
And Head Bolt Reuse/ Replace Specs

For complete and accurate Cylinder Head Torque data, please refer to Cylinder Head Installation. Service and Repair


Intake Manifold







Tighten the bolts and nuts sequentially in two or three steps.

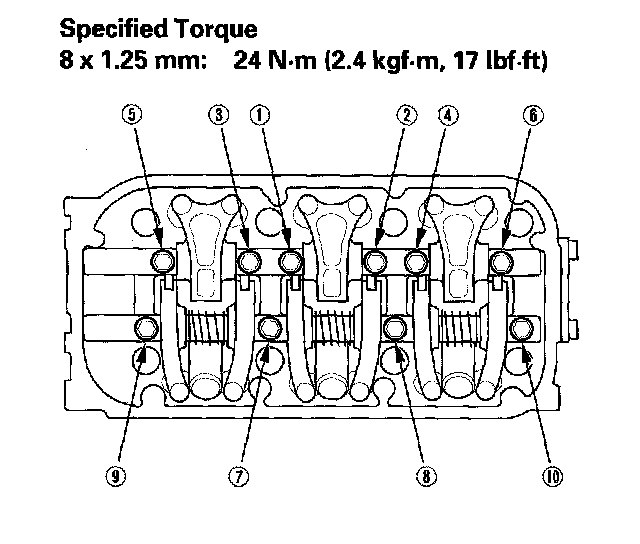

Rocker Shaft Torque and Sequence




Tighten each bolt two turns at a time in the sequence shown.


Crankshaft Main Bearing Cap Torque and Sequence
For complete and accurate Crankshaft Torque data, please refer to Crankshaft and Piston Installation. Service and Repair


Connecting Rod Bearing Cap Torque
For complete and accurate Connecting Rod Torque data, please refer to Crankshaft and Piston Installation. Service and Repair


Crankshaft Pulley
For complete and accurate Crankshaft Pulley Torque data, please refer to Crankshaft Pulley Removal and Installation. Service and Repair


Flex Plate Torque and Sequence
For complete and accurate Flex Plate Torque data, please refer to Drive Plate Removal and Installation. Service and Repair

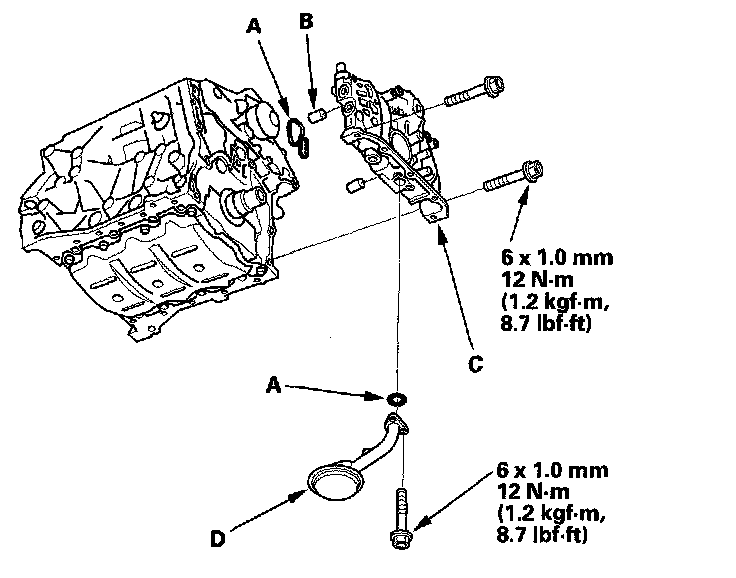

Oil Pump

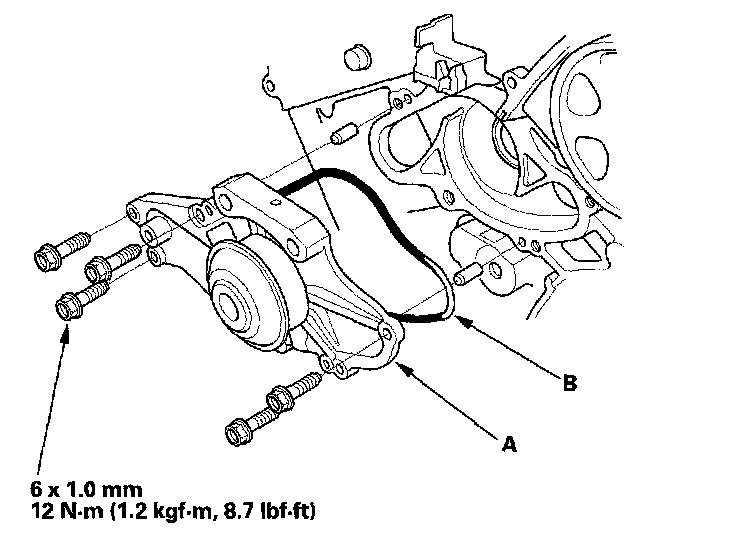

Water Pump
