Side Windshield Trim Replacement

Side Windshield Trim Replacement Front Roof Side Trim Replacement

Special Tools Required
KTC trim tool set SOJATP2014

NOTE:
- Put on gloves to protect your hands.
- Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.

1. Remove the front roof side trim.

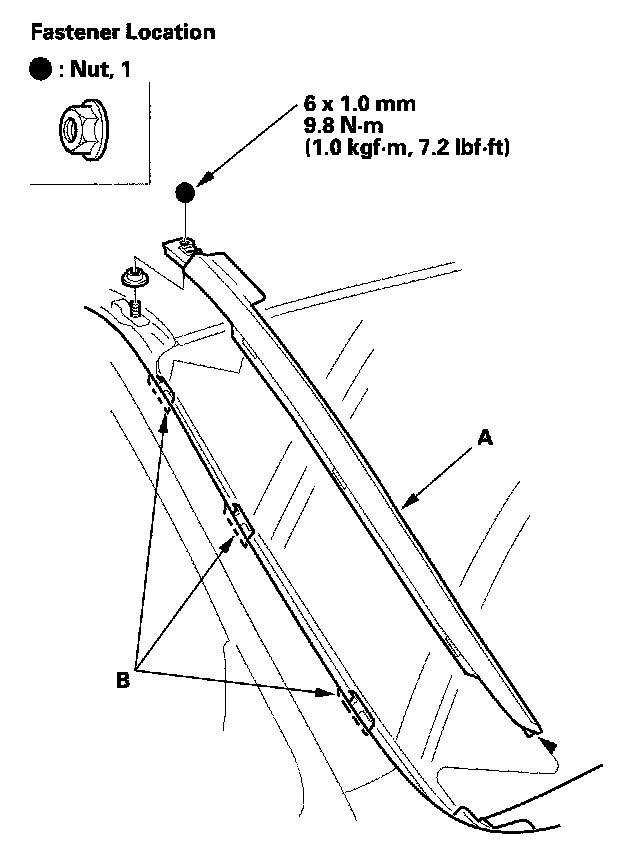

2. Remove the nut, and detach the side windshield trim (A) from the retainers (B) by pulling the trim up. Take care not to scratch the body.
3. Install the trim in the reverse order of removal.
