Front Seat Center Table
Front Seat Center Table ReplacementSpecial Tools Required
KTC trim tool set SOJATP2014
Driver's Seat
NOTE:
- Take care not to scratch the dashboard, tear the seams or damage the seat covers.
- Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
- Put on gloves to protect your hands.
- A/T models are shown, and M/T models are similar.
1. Set up the table.

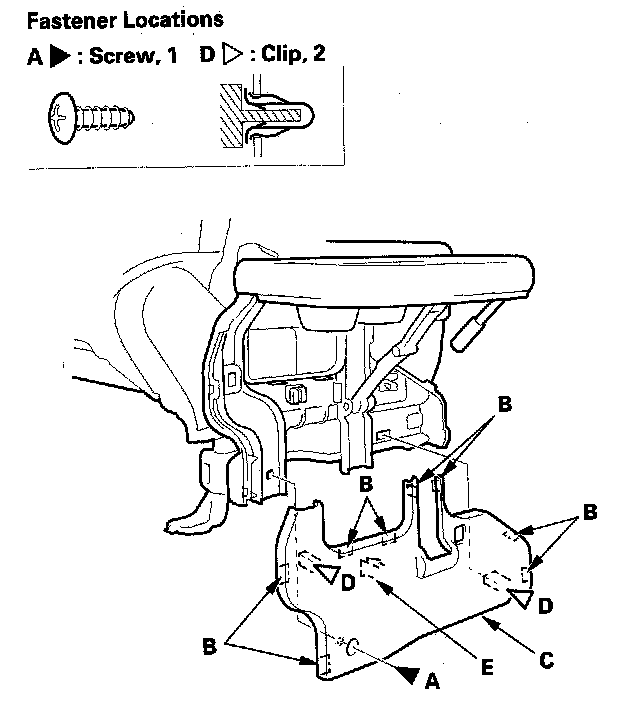

2. Remove the screw (A), release the tabs (B), and pull the outer cover (C) back to detach the clips (D) and hook (E), then remove it.

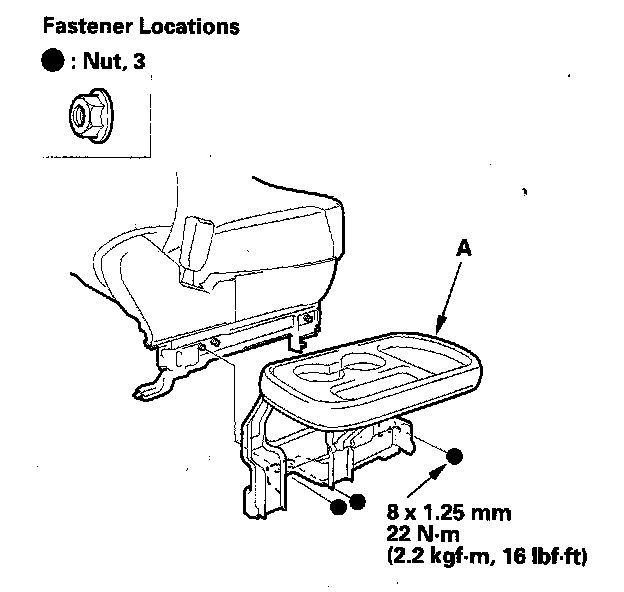

3. Remove the nuts, then remove the center table (A).
4. Remove the inner cover (A) and the center table cover (B) from the center table frame (C).
5. Install the table in the reverse order of removal, and note these items:
- Check the clips for damage or stress-whitening, and replace them with new one.
- Push the clips, hooks, and tabs into place securely.
