Cruise Control Main Switch

Cruise Control Main Switch Test/Replacement

1. Remove the driver's dashboard lower cover.

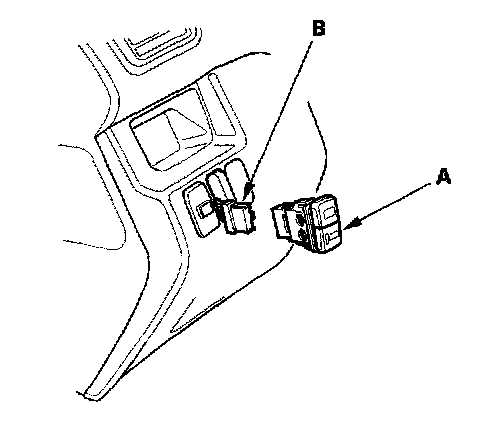

2. Release the clips of the cruise control main switch, and push the switch (A) out of the panel, then disconnect the 13P connector (B) from the switch.

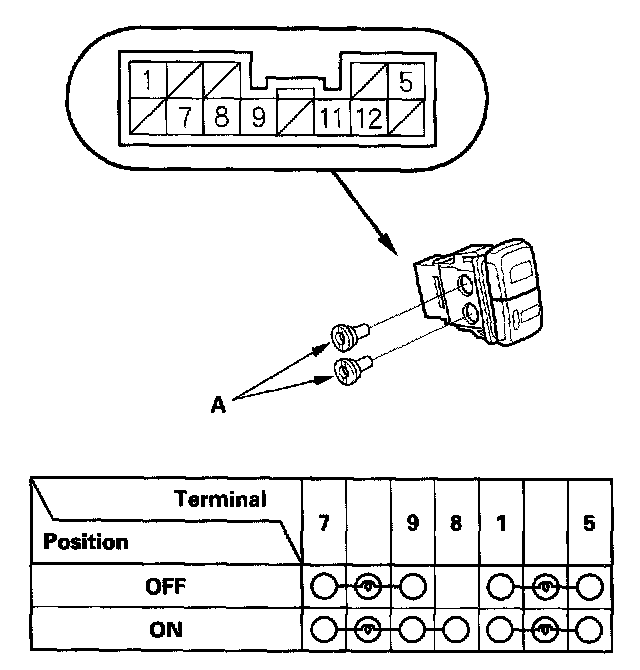

3. Check for continuity between the terminals in each switch position according to the table. If the continuity is not as specified, replace illumination bulbs (A) or the switch.
