Component Tests and General Diagnostics

Cruise Control Input Test

1. Connect the Honda Diagnostic System (HDS) to the data link connector (DLC).
2. Go to B-CAN System Diagnosis Test Mode A, and check for DTCs.

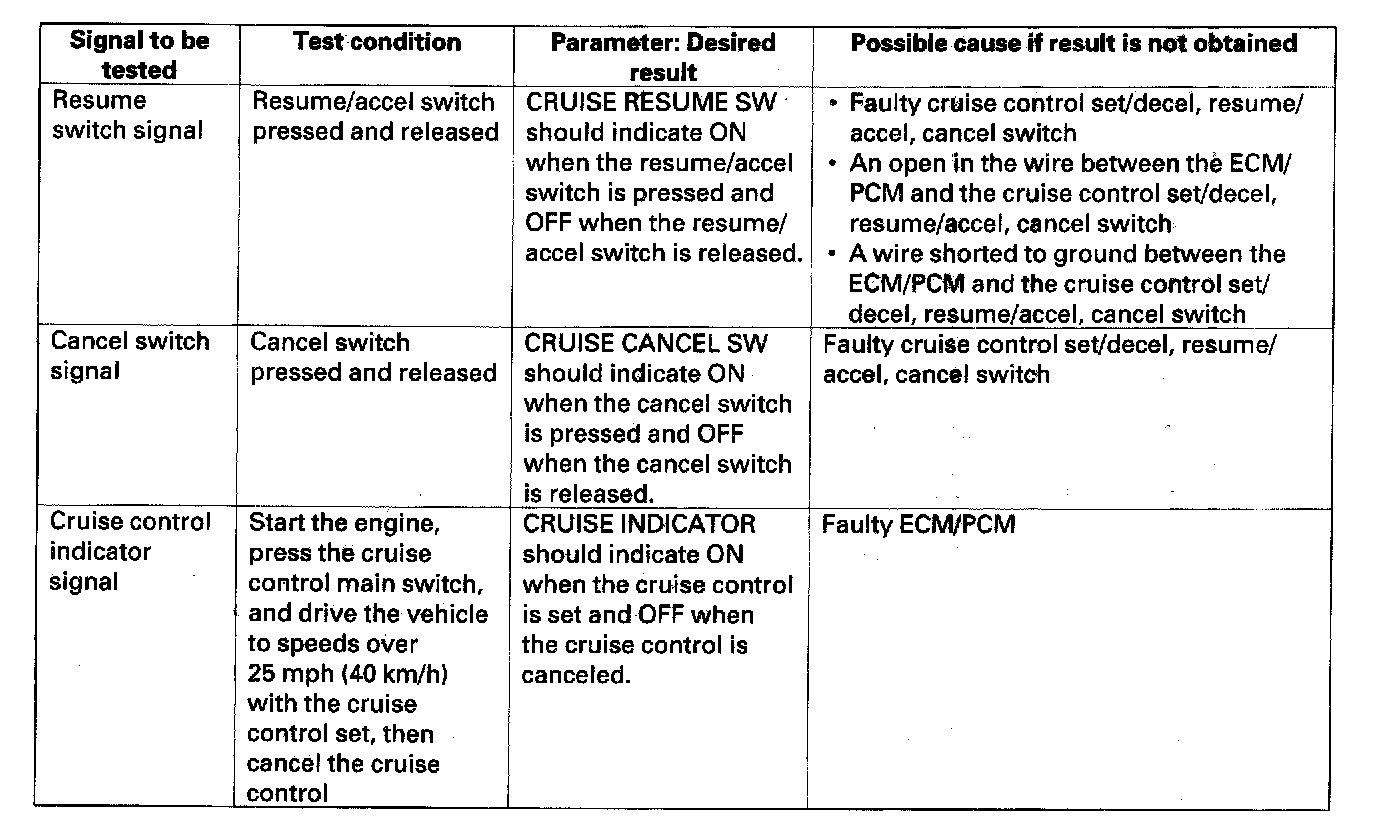

3. Go to PGM-FI, and check for DTCs.
4. Turn the ignition switch ON (II).







5. Do the given tests while monitoring parameters in the PGM-FI DATA LIST with the HDS.

NOTE: Intermittent failures are often caused by loose circuit connections. While monitoring cruise control inputs, flex their circuits, and note if any of the test results change.
