Home >> Honda >> 2006 >> CR-V 2WD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 151-175 >> 160

View 151-175: 160

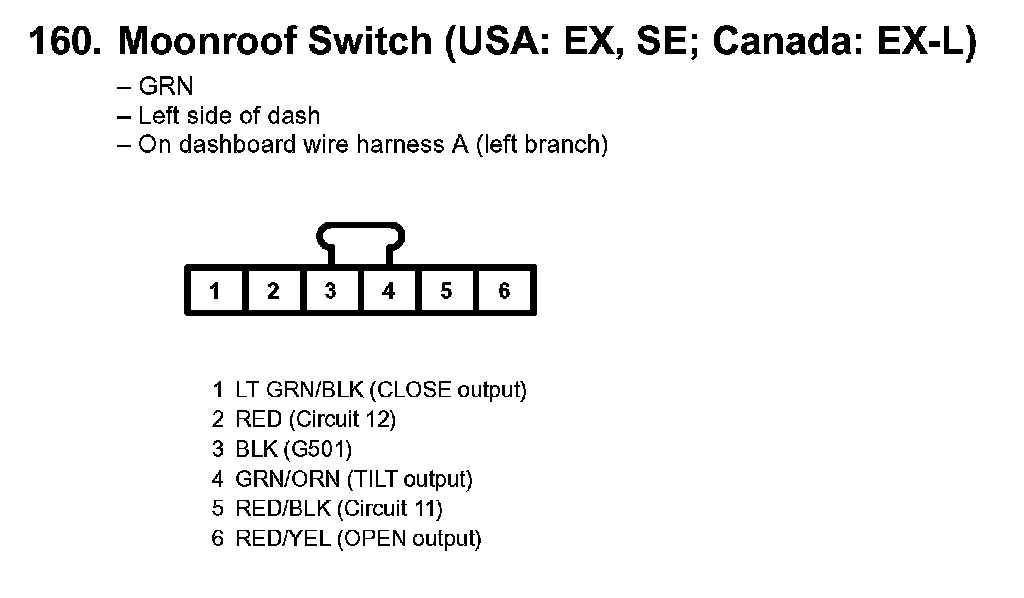

160. Moonroof Switch (USA: EX, SE; Canada: EX-L):
