Home >> Honda >> 2006 >> CR-V 2WD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 151-175 >> 173

View 151-175: 173

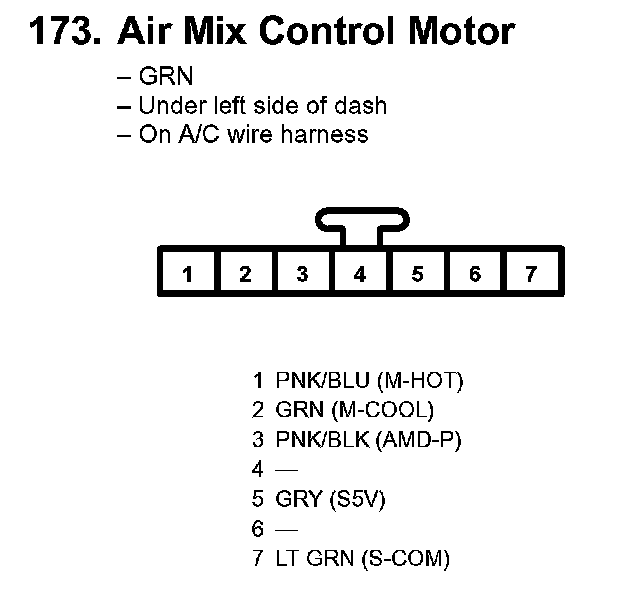

173. Air Mix Control Motor:



176. Mode Control Motor:



177. Recirculation Control Motor:
